Zebra QL220 Plus

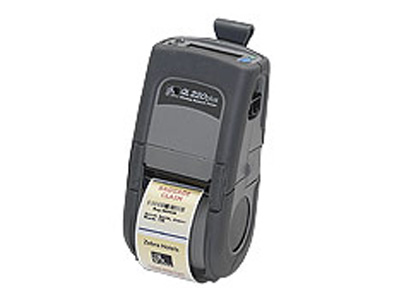

QL220 Plus Product Image

The pictures shown are general images for product QL220 Plus and may not be applicable to all part numbers

QL220 Plus Mobile Printers


The Zebra QL220 Plus has reached end of life. It has been replaced by the Zebra MZ 220.

The Zebra QL220 Plus provides a mobile & elegant solution for creating labels on the fly. With the ability to connect via USB and Serial interfaces, as well as wirelessly over Bluetooth and 802.11b/g, the QL220 Plus allows you print labels or receipts wherever you need them.

Features
  • Direct Thermal printing method
  • 3 inch per second print speed
  • CPCL, ZPL, EPL2, and XML support
  • Rubber infused plastic over-mold design
  • Product Specifications
    Dimensions 3.57 W x 2.96 D x 7.15" H (w/o belt clip) (90.7 x 75.2 x181.6 mm)
    Weight 1.04 lbs (0.47 kg) (with battery)
    Color Options Grey
    Interfaces Available USB
    RS-232 Serial
    Bluetooth
    802.11b
    Battery 7.4 V Lithium ion battery, 2.1 Ah
    User Interfaces Optional LCD interface
    Print Method Direct thermal
    Print Speed 3”/76.2 mm /second
    Print Width 1.89”/48.0 mm (max)
    Resolution 203 dpi/8 dots per mm
    Barcodes Supported Standard 1D Barcodes, PDF-417, MaxiCode
    Data / Logo Storage 2 MB SRAM; 2 MB Flash
    Media Type Roll-fed
    Die-Cut
    Linerless
    Receipt
    Paper Dimensions Max. Roll Size (O.D.): 2.2”/55.9 mm
    Core Size: 3/4”/19.1 mm or 1-3/8”/34.9 mm
    Media Width: .63”/16.0 mm to 2.18”/55.4 mm
    Paper Thickness Tag/Receipt Thickness: 2.5 - 6.0 mil
    Label Thickness: 2.5 - 6.5 mil
    Peeler / Presenter Yes
    Drop Specification Damage-resistant to multiple drops of up to 5 feet
    Environmental Sealing IP14
    Operating Temperature Standard Model: 5° to 122° F/-15° -50° C
    LCD Model: 32° to 122°F/ 0° to 50° C
    Storage Temperature Standard Model: -13° to 158° F/ -25° to 70° C
    LCD Model: -4° to 158° F / -20° to 70° C
    Accessories Battery chargers (AC/DC)
    Battery Eliminator
    Soft case
    Kickstand
    Warranty 1 Year Manufacturer Warranty
