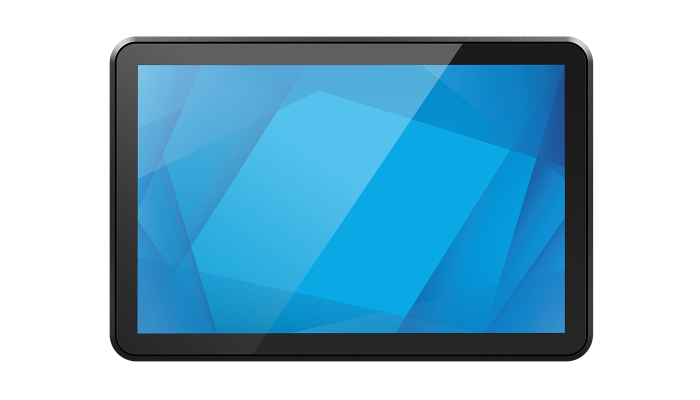

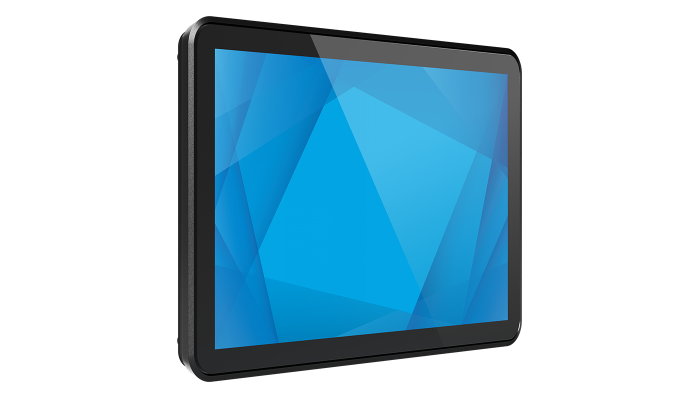

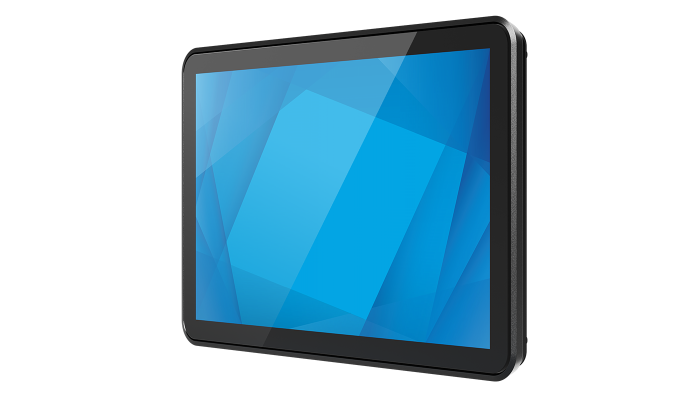

1064L 10-inch POS Touch Screen Monitor
Industrial‑Grade Open Frame Touch Display
Elo's 1064L 10-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1064L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded TouchPro PCAP display
The 10-inch 1064L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.
Enable power, video and touch with a single USB‑C cable.
Durable, energy efficient touchscreen.
- UL62368 & IK08 compliance
- Chemically-strengthened glass
- Ready for 24/7 use
- Wide operating voltage range (12V‑24V)
- Energy Star 8.0 certified
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Designed for easy integration.
Elo’s 10-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.
Computing power that scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
| Product Specifications | |
|---|---|
| LCD Technology | Active matrix TFT LCD |
| Diagonal Size | 10.1" |
| Active Display Area | 8.54" x 5.34" / 216.96 mm x 135.60 mm |
| Native Resolution | 1280 x 800 |
| Preset Video Timings | 640x480 60Hz; 720x400 70Hz; 800x500 60Hz; 800x600 60Hz; 1024x768 60Hz; 1280x800 60Hz, 60Hz RB; 1366x768 60Hz, 60Hz RB; 1920x1080 60Hz; 1920x1200 60Hz |
| Touch Technology | TouchPro® PCAP - up to 10 touches |
| Touch Thru | TouchPro® PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches. |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 500 nits; TouchPro PCAP: 450 nits |
| Response Time (Tr + Tf) (typical) | 29 msec |
| Viewing Angle (typical) | Horizontal: 89°/178°; Vertical: 89°178° |
| Contrast Ratio (typical) | 800:1 |
| On-Screen Display (OSD) | On screen OSD with menu and power buttons on the back of the unit. Supported Touch gestures include: |

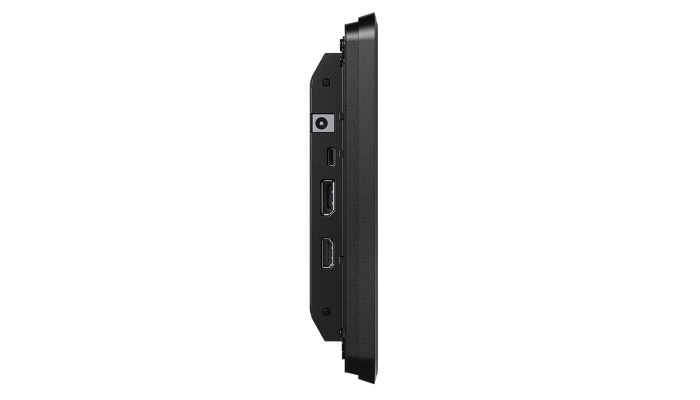

| Video | HDMI V1.4 Type A receptacle for HDMI input, DisplayPort V1.2 - Supports later versions of Display Port video input, USB Type-C |
| Power | Option1: External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer |
| Power Consumption (Typical) | ON (Default - 80% Brightness): 6.52W
ON (Typical - 100% Brightness): 7.42W SLEEP (monitor + adapter): 0.45W OFF (monitor + adapter): 0.25W |

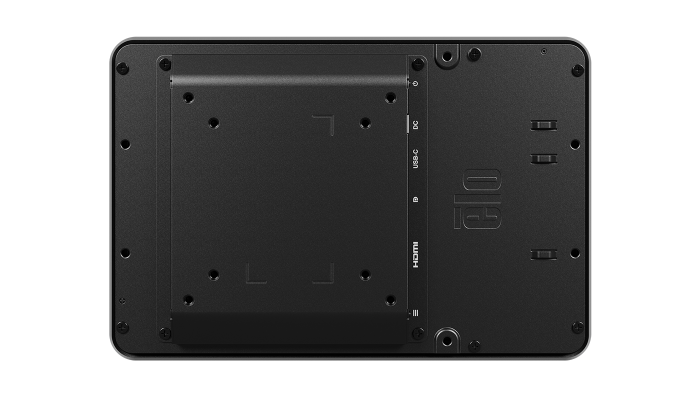

| Mounting Options | 75 mm and 100mm VESA mount, Mounting interface on all 4 sides, Flush mount with included brackets |
| Weight | Unpackaged: 2.75 lbs / 1.25 kg
Packaged: 5.35 lbs / 2.43 kg |
| Dimensions | 9.46" x 6.26" x 1.26" /
240.4 mm x 159.0 mm x 32.0 mm |
| Shipping Dimensions | 12.40" x 9.57" x5.67" /
315 mm x 243 mm x 144 mm |
| Temperature | Operating: 0° C to 40° C / 32° F to 104° F; Storage: -20° C to 60° C / -4° F to 140° F |
| Humidity (non-condensing) | Operating: 20% - 80%; Storage: 10% - 95% |
| Maximum operating time | 24 hours/day |
| Ingress Protection | IPX1 for front side |
| Energy Star | Energy Star 8.0 |
| Warranty | 3 year standard |
| Extended Warranty | 4 year - Elo P/N: E898247, 5 year - Elo P/N: E898449, |
| MTBF | 50,000 hours demonstrated |
| What’s in the Box | 64-Series Monitor, HDMI cable, Touch USB Cable (USB-A to USB-C), Flush Mount Brackets w/Screws, Quick Install Guide , EEI Label |
