Elo TouchSystems 2270L

The pictures shown are general images for product 2270L and may not be applicable to all part numbers

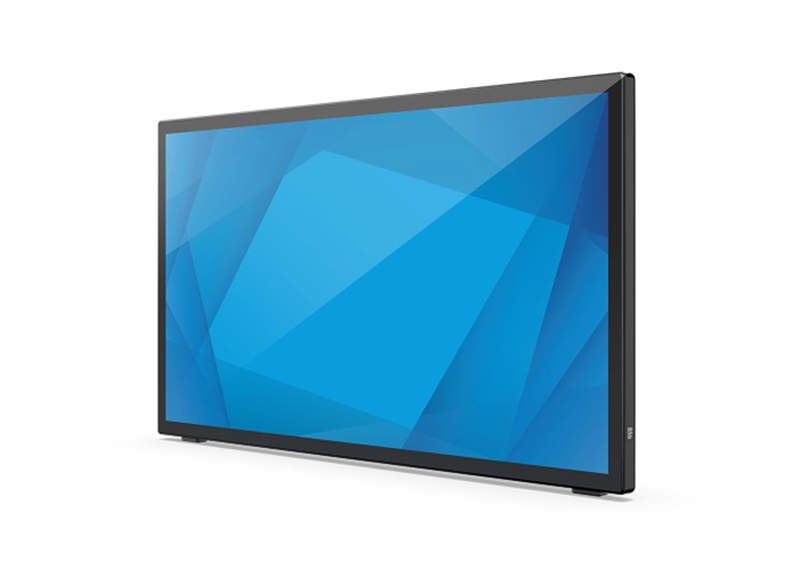

2270L POS Touch Screen Monitor


The Elo 2270L 22-inch Full HD touchscreen monitor delivers a commercial-grade interactive solution with a minimalistic design to fit any space. Backed by a three-year warranty, the compact 2270L offers a durable, energy efficient TouchPro® PCAP touchscreen with clear or anti-glare scratch resistant glass surface options, increased viewing comfort with low blue light and flicker free features, dual built-in speakers, VGA, DP and HDMI video connectors.

The 2270L features a built-in stand that can be angled from from 20 degrees to 70 degrees. When note in use, the stand can be closed back into the monitor casing for easy 100x100 VESA mounting on a compatible desktop, floor, or wall mount.

With a clean design aesthetic available in black and white and flexible mounting options, the 2270L touchscreen is well suited for POS, interactive digital signage, self-service, document signing and more.

Product Specifications
Diagonal Size 21.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio 16:9
Touch Technology PCAP (TouchPro® Projected Capacitive) - 10 Touch
Display Resolution 1920 x 1080 @ 50, 60Hz
More Supported. See Spec Sheet for more.
Brightness LCD Panel: 250 nits
TouchPro PCAP: 225 nits
Contrast Ratio 1000:1
Touch Interface USB
IO Ports AC Input (IEC60320 C6)
Audio in/out
VGA
HDMI
DisplayPort
USB 2.0 Type B
2x USB 2.0 Type A<
Speakers Two x 2W internal speakers
Dimensions (H x L x W) 19.87" x 11.91" x 1.63" / 504.7 mm x 302.4 mm x 41.3 mm
Weight (Pounds) 9.04 lbs / 4.1 kg
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF 50,000 hours demonstrated
Mounting Options VESA 4-hole 100mm mounting interface on rear of unit
Warranty 3-year
Impact Protection IK07
What's in the Box 2270L Touchmonitor
Quick Install Guide
HDMI cable
Touch USB cable
NA Power cable
EU Power cable
EEI Label (EU)
2x EEI Label (UK)
2x Replace foot cover
5x Cable tie
Optional Peripherals 1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
Part Numbers Subject to Change. Call for More.
