EVO-TM4 POS Touch Screen Monitor

The POS-X EVO-TM4 has reached end of life. It has been replaced by the POS-X TM6 .

The POS-X EVO-TM4 touchscreen monitor is the ideal choice for businesses needing an accurate touchscreen on a budget. At 15", the EVO-TM4 sports a native resolution of 1024 x 768, capable of displaying most applications easily. The PCAP touchscreen allows for fast and accurate touchscreen operation, and the tilting base is sturdy enough to withstand even rough operation. With optional side-mounted magnetic strip readers (MSR) or rear facing VFD display, the POS-X EVO-TM4 is a versatile touchscreen solution for restaurant, retail, or hospitality locations.

The EVO-TM4 features state of the art Tru-Flat resistive technology and a bezel free screen. This is a great new feature that not only makes the monitor easier to clean, but extends monitor life by preventing unwanted debris buildup. This is a perfect feature for kitchens where food and splashing liquids are near to the monitor. Easier to use then bevelled monitors,it allows the largest of fingers to get right to the edge of the screen with no effort. As a bonus, POS-X includes Tru-Flat support gestures making it is as simple as dragging a finger up or down on the screen to navigate within applications.

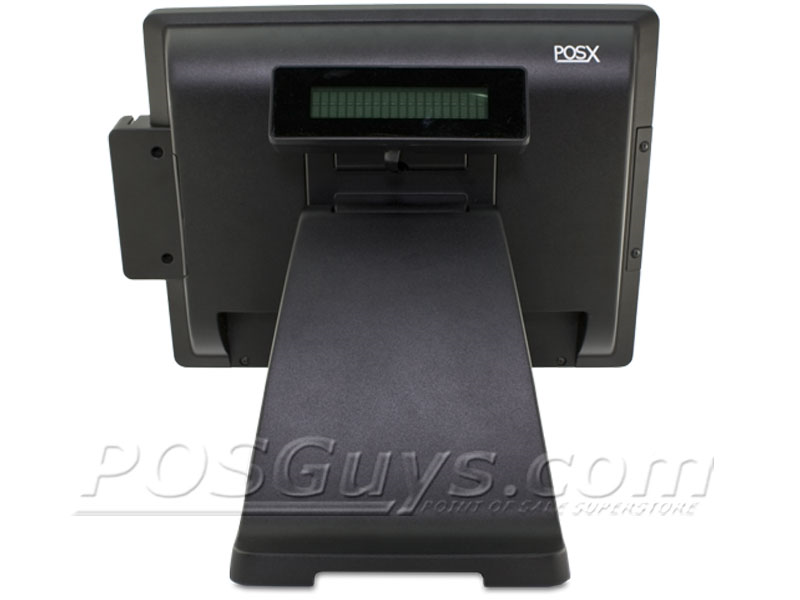

This monitor supports multiple configurations, giving you an option for most business layouts. The base of the unit can be removed, revealing VESA mounting options, ideal for wall or pole mounting. For added customer data display, including digital signage, an LCD monitor can be mounted to the back of the unit.

Similar models to the EVO-TM4 include the EVO-TM2 touch monitors which come in either 15 inch or 17 inch dimensions.


  • Tru-Flat zero bezel LCD screen
  • Built in cable management
  • PCAP touch technology
  • Energy efficient 36W power supply
  • IP54 International Protection Rating

    This 15 inch touchscreen monitor includes three years of POS-X's award winning warranty service and can be extended two additional years by purchasing a POS-X warranty extension any time during the warranty period.
  • Product Specifications
    Display Type 15 Inch TFT Active Matrix
    Color Options Black
    Interface USB
    Style Desktop - Cable Management Base
    Optimal Resolution 1024 x 768
    Aspect Ratio 4:3
    Brightness 250 nits
    Colors 16.7 million colors
    Weight 14.33 lbs
    Dimensions 14.21”(W) x 9.79”(H) x 13.27”(D)
    Mounting Options Desktop Placement, VESA 100mm x 100mm
    Operating Temperature 32°F to 104°F
    Adaptor Output 36 W 12V, 3A
    Optional Peripherals 3 track magnetic strip reader (MSR) - bezel free 8.4 inch rear display screen - bezel free 2 line rear display screen
    Warranty 3 Year Limited

    Frequestly Asked Questions

    POS-X EVO-TM4 Reviews

    POSGuys Rating:

    We’d been hoping to see a bezel free monitor come out of POS-X and here it is! We highly suggest this model for restaurants and retail settings as it is extremely easy to clean, and on top of that provides excellent resistance to grease, splashing water, food build up and dust. Besides being highly utilitarian this screen’s flat, bevel free design is simply more elegant than your everyday touch monitor. Definitely this reviewer’s current favorite.

    Customer Reviews

    Add a customer product review

    Recommended Models

    15" EVO-TM4 PCAP Touchscreen Monitor, Black with VGA input, USB / Serial Hub and USB Interface
    This model will soon be replaced by 932AD065200233
    Please Call


    EVO-XZ4-M100 Universal EVO VESA Mount
    Add to Cart
    ARTFITT969 POS-X 2-Year Warranty Extension (Previously ZWE-TMC)
    Add to Cart
    ARTFITT961 POS-X 3-Year Rapid Replacement Warranty Upgrade (must be purchased within 30 days of monitor purchase) (Previously ZOE-TMC3)
    Add to Cart
    ZOE-TMC5-KIT POS-X 5-Year Rapid Replacement Warranty Upgrade (Includes POS-X 2 year warranty extension. Must be purchased within 30 days of monitor purchase.)
    Add to Cart
    ARTFITT964 5-Year Rapid Replacement Warranty (Must be purchased with 2 year warranty extension and within 30 days of product purchase.) (Previously ZOE-TPC5)
    Add to Cart

    Previously Available Models

    15 Inch Tru-Flat Touchscreen Monitor: Black with VGA input, USB / Serial Hub and USB Interface
    This model has reached end of life. It has been replaced by 932AD065200233
    Please Call

    Previously Available Accessories

    EVO-MR4 EVO-TP4 Pro Integrated MSR: 3-Track, USB Interface
    Please Call
    EVO-RD4-LCD8 Rear Display Screen for EVO-TP4 Pro: 8.4 Inch, LCD, VGA, 800 x 600 resolution
    Please Call
    EVO-RD4-VFD Rear Display Screen for EVO-TP4 Pro: 2-line, VFD, Serial Interface
