POS-X TM6

Recommended Models

EVO TM6 touchscreen monitor. 15in. zero-bezel design, Multitouch PCAP, USB Interface (Previously EVO-TM6D)
$468.64

Accessories

Integrated Rear Display for EVO TP6 or EVO TM6 (15" LCD w/VGA Cable and Dual Display Stand) Perfect For Digital Signage Or As A Secondary Monitor. (Old POS-X part number EVO-RD6-LCD15)
$475.44
Integrated Rear Display for EVO TP6 or EVO TM6 (15" LCD w/VGA Cable and Dual Display Stand): The Vivid 15" LCD Display Is Sure To Leave A Lasting Impression. Perfect For Digital Signage Or As A Secondary Monitor.
$475.44
The EVO MR6 3-track Magnetic Stripe Reader (MSR) seamlessly integrates with the EVO TP6 line of POS-X POS Terminal. Supports tracks 1-2-3. (Old POS-X part number EVO-MR6) EVO-MR6 Integrated 3-track MSR for EVO-T
$79.23
Mounting bracket only for ID Tech Augusta reader for the EVO-TP6 (Old POS-X part number EVO-EMV6-AUG1)
$15.00
INTEGRATED FINGERPRINT READER FOR EVO-TP6, (PREVIOUSLY PART # EVO-BR6)
$146.37
Integrated 2 x 20 LCM customer display for EVO TP6. (Old POS-X part number EVO-RD6-LCM)
$119.50

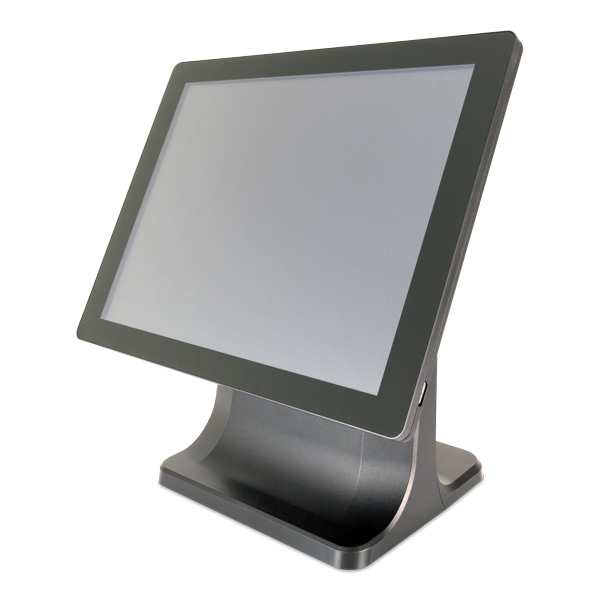

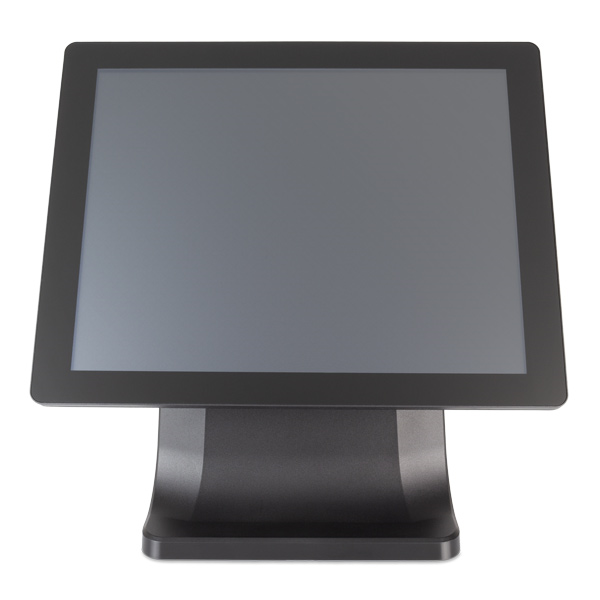

TM6 POS Touch Screen Monitor


This product replaces the older POS-X EVO-TM4.

TRUFLAT TOUCHSCREEN
The zero-bezel design creates a seamless, smooth surface that is easy to clean and is resistant to water, dust, grease, and food build-up, making the TM6 the ideal choice for high-traffic retail or restaurant settings.

VENTLESS DESIGN
No vent openings also means better protection from dust and water, reaching an IP54 ingress protection rating.

CABLE-FREE ACCESSORIES
Gold contact connectors built into all accessories make for quick, simple installation. No more messing around with tiny, internal computer connectors.

WHAT’S IN THE BOX
  • POS Monitor
  • AC Power Adapter
  • VGA Cable
  • USB Cable
Product Specifications
DIMENSIONS: 14.1″ x 9.4″ x 14.3″
WEIGHT: 13.2 lbs (6kg)
TILTING ANGLE: 90° to 37°
MOUNTING: VESA 100×100
RESOLUTION: 1024 x 768 pixels
BRIGHTNESS: 400 nit
TOUCH: Multitouch PCAP
IP RATING: IP54
OPERATING TEMP: 32°F to 95°F
