Honeywell Orbit 7120/7180

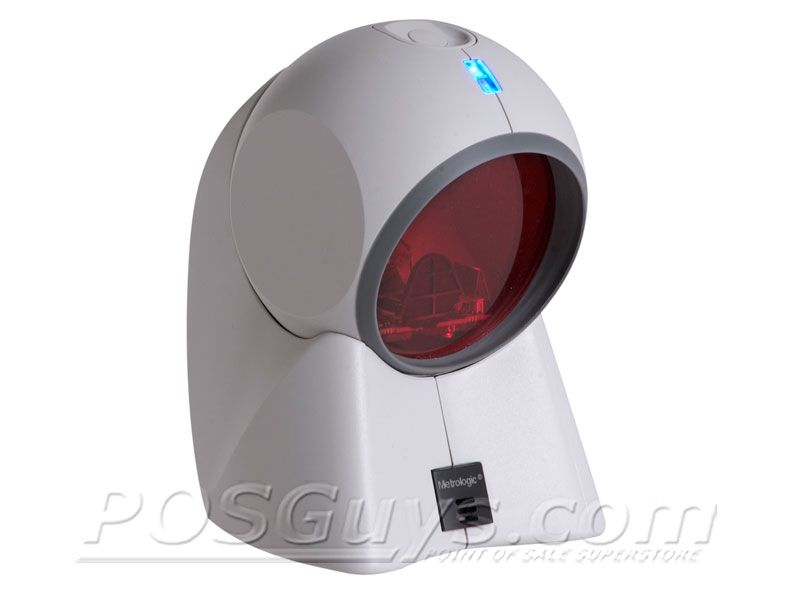

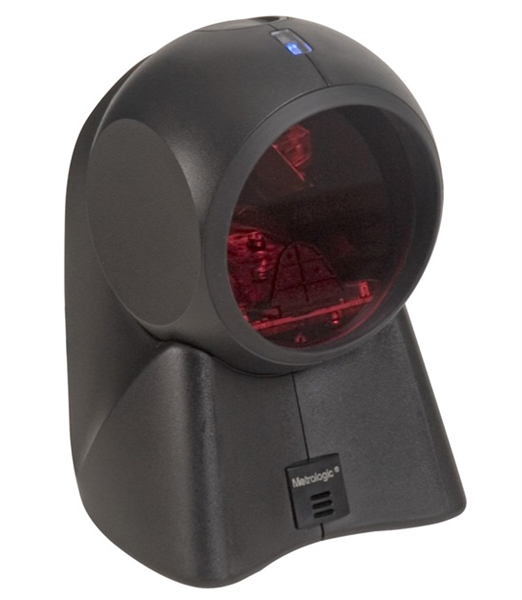

Orbit 7120/7180 Product Image

The pictures shown are general images for product Orbit 7120/7180 and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
Orbit 7120/7180 Features
Laser
Color Options

Black, White

Orbit 7120/7180 Presentation Barcode Scanners


The Honeywell Orbit 7120/7180 is nearing end of life. It will soon be replaced by the Honeywell Orbit 7190g.

Designed for applications where counter space is at a premium, Orbit is an ideal presentation scanner for retail, convenience, liquor and specialty stores.

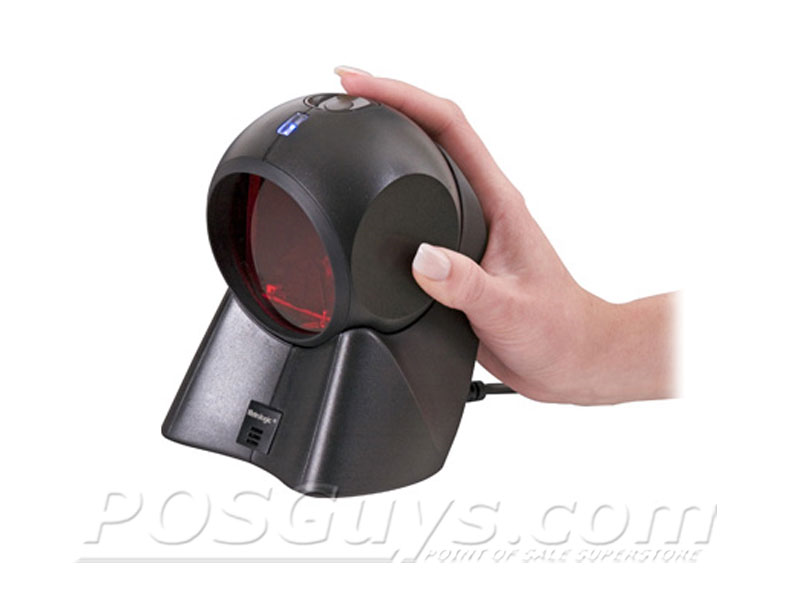

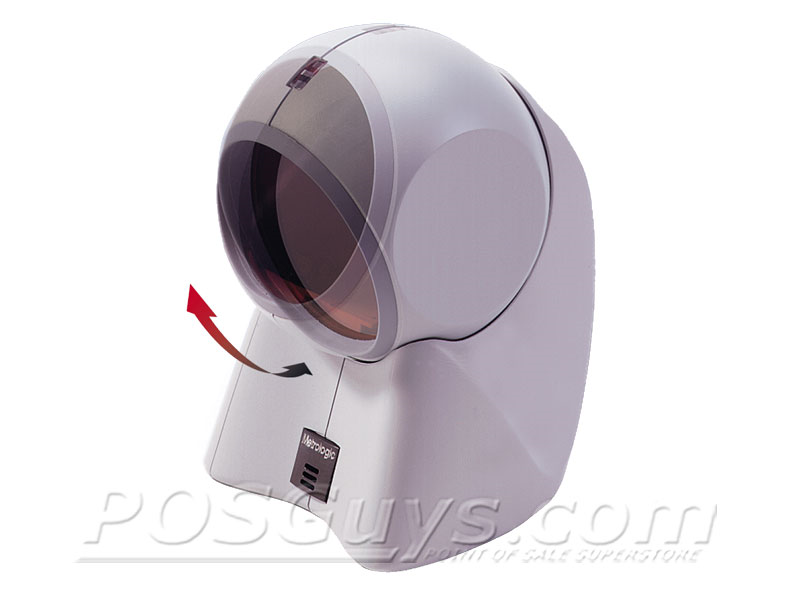

Orbit's unique, contoured shape allows hand-held use when scanning large or bulky items. Engineered with a large, easy-to-find sweet spot, Orbit increases first-pass read rate for maximum productivity. The scanning head virtically tilts a full 30% for barcode scanning ease.

Metrologic's MS7120 Orbit has a patented 20-line omnidirectional scan pattern producing 1,200 scan lines per second. These features increase the scanning through-put without increasing the barcode scanner's size. Orbit is engineered for easy configuration and utilizes user-replaceable cables. Data editing or parsing is also a standard feature. Parsing enables the encoded information to be manipulated to meet the host system's requirements.

Product Specifications
Dimensions 105 x 102 x 150 mm (4.1 x 4.0 x 5.9")
Weight 400 g (14.1 oz)
Color Options Black
White
Interfaces Available USB
RS232
Keyboard Wedge,
Scan Method Omni Directional/Single Line
Decoding Capabilities Reads standard 1D and GS1 DataBar symbologies
Mobility/Range Corded
Scan Rate (Maximum) Omnidirectional: 1120 scan/second
Single line: 56 scan lines per second (7180)
Reading Angle Pitch: 60°
Skew: 60°
Print Contrast (Min.) 35%
Typical Depth of Field Orbit 7120:
5.2 mil 0 - 50 mm (0- 2.0")
7.5 mil 0 - 150 mm (0 - 5.9")
10 mil 0 - 175 mm (0 - 6.9")
13 mil 0 - 215 mm (0 - 8.5")
Indicators LED
Beep
Auto Sense Mode Yes
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Drop Specification Designed to withstand 1.2 m (4´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Ambient Light (Max) 4842 Lux
Stand No
Warranty 3 year factory warranty

Honeywell Orbit 7120/7180 Reviews

POSGuys Rating:

One of the long standing customer favorites for presentation scanner. This scanner uses a grid of lasers to capture barcode data, it can only scan regular 1D barcodes (lines). This is an older model that still performs well but lacks the capabilities of the newer model the Genesis that can also capture 2D barcodes and scan phones.


Read the comprehensive Honeywell Orbit 7120/7180 Review by POSGuys' Staff
