Honeywell Stratos

The pictures shown are general images for product Stratos and may not be applicable to all part numbers

Stratos Presentation Barcode Scanners

The Honeywell Stratos has reached end of life. It has been replaced by the Zebra MP7000.

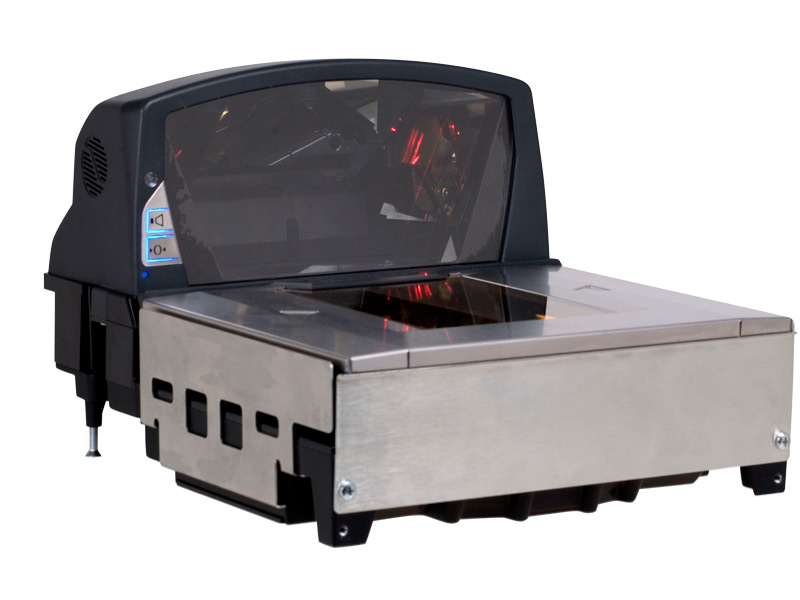

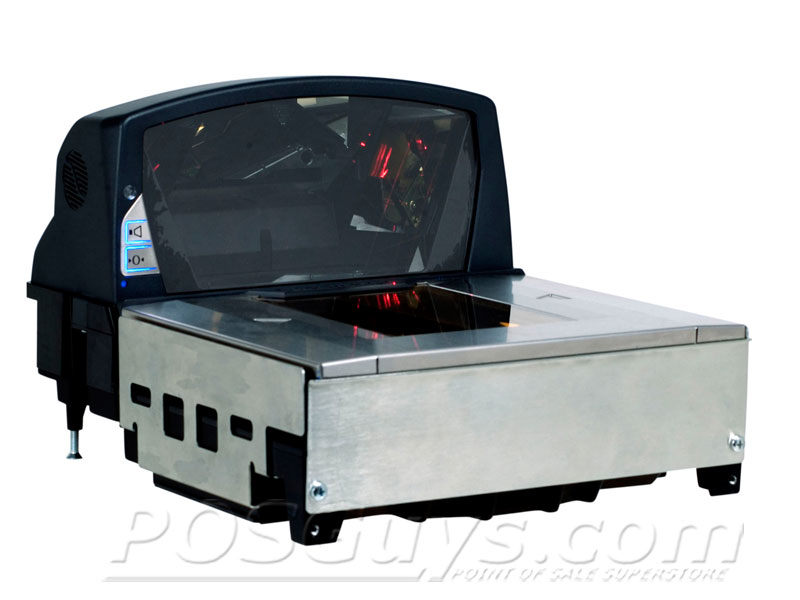

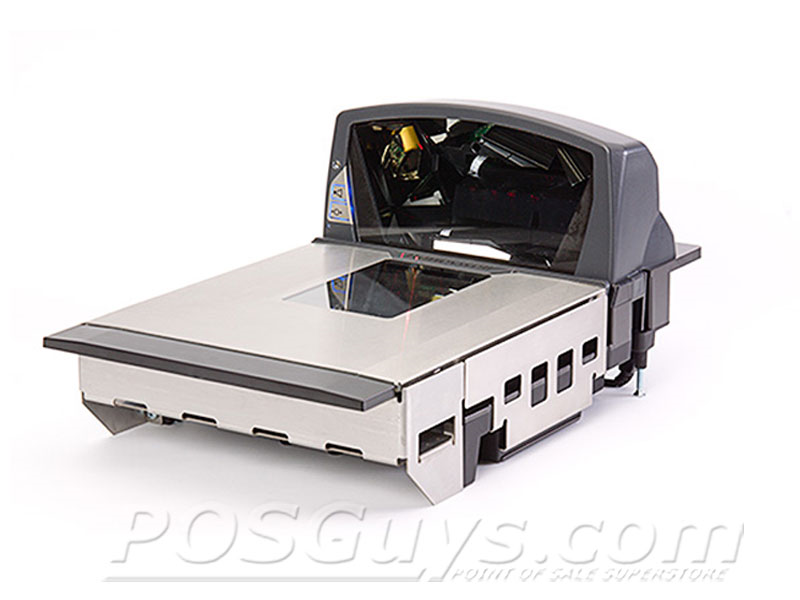

The Honeywell MS2400 Stratos scanner / scale combination sports advanced features over the rest of the Stratos line, making it an ideal choice for high-volume retail and grocery environments looking to get the most out of a sub-compact unit. A 4" in-counter depth allows the Stratos to fit into all but the most shallow check stations. Available as both a sub-compact flat bed scanner or as a combination scanner / scale, the Honeywell MS2400 Stratos will provide you with years of reliable service.

Click Here for Additional Warranty Information


  • 5400 Scan lines per second
  • 5-side, 360° scanning
  • StratosSWAP allows for field-replacement of faulty parts
  • Available in single or dual cable modes

  • Product Specifications
    Dimensions MS2420 (compact scanner with scale): 5.7 L x 11.5 W x 5.1 H (Above Counter) x 4" D (Below Counter)
    MS2422 (sub compact scanner only): 13.9 L x 11.5 W x 5.1 H (Above Counter) x 4" D (Below Counter)
    Color Options Grey
    Interfaces Available USB
    IBM46xx (RS485)
    Scan Method Omni-Directional Laser Scanner
    Decoding Capabilities Reads standard 1D and GS1 DataBar symbologies.
    Mobility/Range In Counter
    Scan Rate (Maximum) 5400 Scan Lines Per Second
    Print Contrast (Min.) 35%
    Reading Angle 5 Sided Reading
    360 Scan Zone
    Typical Depth of Field Horizontal: 0 mm - 100 mm (0-4"); Vertical: 0 mm - 216 mm (0 -8."½) for 0.33 mm (13 mil) bar code
    Scale Capacity 30 lbs (15kg)
    Scale Minimum Legal Weight 0.01 lbs (0.005 kg)
    Scale Max Static Weight 150 lb (68 kg)
    Indicators LED
    Adjustable Beep
    Auto Sense Mode Yes
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Storage Temperature -40°C to 60°C (-40°F to 140°F)
    Ambient Light (Max) 4842 Lux
    Environmental Sealing Sealed to resist airborne particulate contaminants
    Accessories Optional Secondary Display
    Warranty 2 Year Manufacturer Warranty
