Zebra MP7000

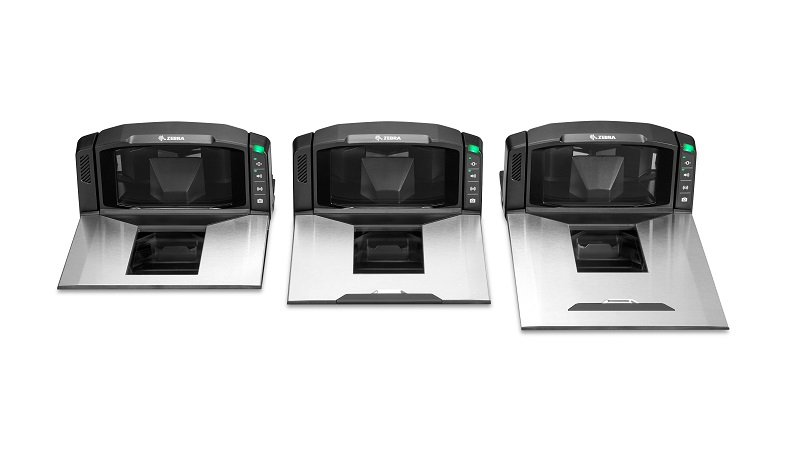

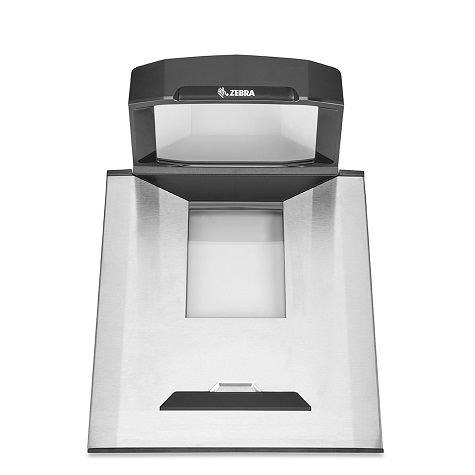

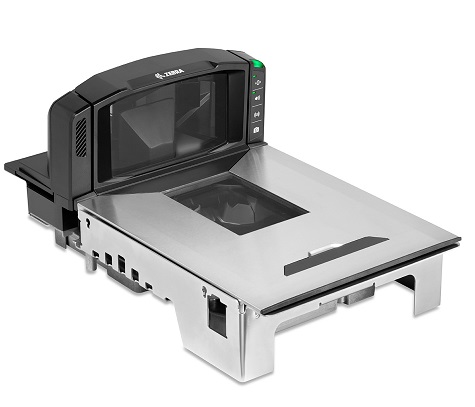

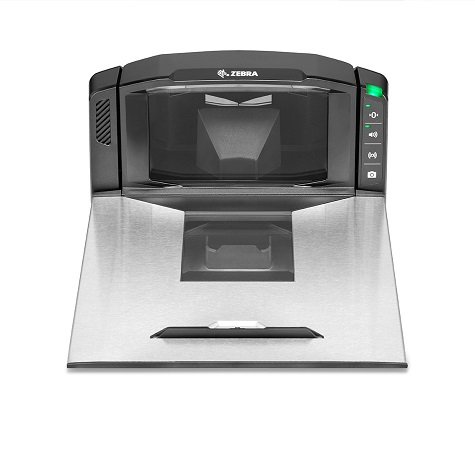

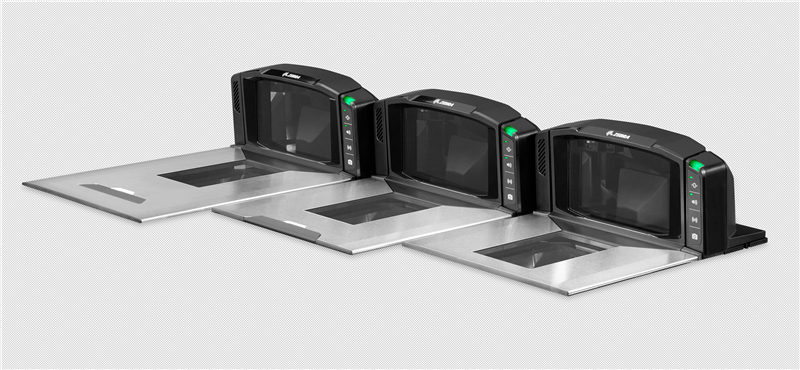

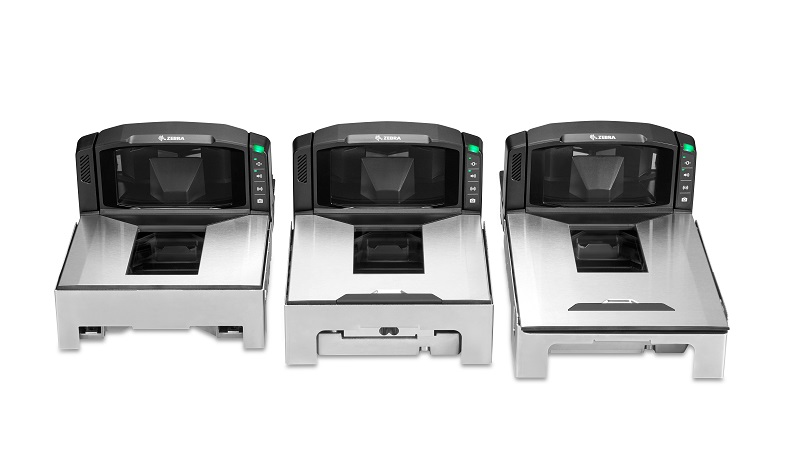

MP7000 Product Image

The pictures shown are general images for product MP7000 and may not be applicable to all part numbers

MP7000 Presentation Barcode Scanners


This product replaces the older Honeywell Stratos.

Get Unsurpassed Checkout Speeds, Reduce Loss and Protect Profitability in the Busiest Stores

Deliver a superior checkout experience for cashiers and shoppers in high volume POS lanes with the MP7000. This next generation multi-plane 1D/2D imager takes scanning performance and simplicity to the next level for faster-than-ever checkout in cashier-manned and self-checkout lanes. An optional color camera enables a range of applications, such as produce recognition and loss prevention, to further improve the customer experience and maximize self-checkout success. A smart investment, the MP7000 offers an unmatched total cost of ownership (TCO) by delivering maximum uptime, minimum power consumption and an easy-to-service design with fewer parts and components. And DataCapture DNATM, Zebra’s exclusive software ecosystem, takes performance far beyond the basics — simplifying every stage of the scanning experience over the life of your device.

Key Features - MP7000 Scanner
  • Unparalleled Scanning in the Busiest Checkout Lanes
    Keep checkout lanes moving and process more transactions per shift. With Zebra’s exclusive PRZM Intelligent Imaging technology, cashiers and self-checkout shoppers can instantly capture virtually every electronic and printed 1D or 2D barcode — including barcodes that are dirty, damaged, poorly printed and under shrinkwrap.
  • Large Scan Volume Maximizes Checkout Speed
    The MP7000 offers the largest scan volume in its class, allowing your workers to simply swipe-and-go, boosting cashier productivity and your shoppers’ checkout experience.
  • Customer Side Scanner Enhances Productivity
    With the optional side scanner, customers can simultaneously scan mobile coupons, loyalty cards and impulse buy items — without slowing down the cashier.
  • Optional Color Camera Increases Versatility—and Value
    The optional high-resolution 2.3 Megapixel color camera paves the way for new applications that deliver major business benefits. Produce recognition applications can help identify produce to streamline item selection for easier and faster self-checkouts. Loss prevention applications can use the camera to help identify suspicious transactions and ensure the proper barcode was scanned for an item. And the color camera makes it easy to build the image database needed to support these applications.
  • Reduce Shrink With Non-Decode Events
    The MP7000’s sensor-based Non-Decode Events can identify when items are passed through the scanner’s field of view but a barcode is not scanned. This feature can detect if a cashier accidentally misses a scan, as well as scan avoidance schemes when customers try to bypass the scanner to avoid paying for an item in self-checkout. When such non-decode events are detected, the MP7000, along with other POS equipment, can provide alerts and videos to the POS system, so proper mitigation actions can be taken.
  • Single Out One Barcode From Many
    With Zebra’s Preferred Symbol, the MP7000 can capture and output only the preferred barcode, so workers no longer have to waste time physically covering nearby barcodes before scanning.
  • Read Up to 20 Barcodes With One Press of the Scan Trigger
    With Multi-Code Data Formatting (MDF), the MP7000 can capture multiple barcodes with a single scan and transmit only the barcodes you need, in the order your application expects.
  • Easy to Deploy
    The MP7000 is designed to easily fit into your existing cash wrap, providing a cost-effective path to deploying the latest POS technology in your checkout lanes.
  • Lowest Power Consumption in the Industry
    Our intelligent illumination system consumes up to 60 percent less power than competitive devices, greatly reducing power consumption and cost.
  • Superior Durability for Maximum Uptime
    With solid state technology, the MP7000 has no moving parts, providing the fewest failure points in this class. The result? Fewer repairs, maximum uptime and a low total cost of ownership (TCO).
  • Easy to Service
    The MP7000 was designed with fewer components and parts and an upper housing that can be removed without tools. As a result, reliability is greatly improved, there are fewer parts to stock and less time is required for repair.

BOX CONTENTS
  • Scanner Scale Only

    Buy Separately
  • Interface Cables: CBA-U51-S16ZAR + CBA-R51-S16ZAR
  • Power: PWR-BGA12V50W0WW + CBL-DC-388A1-01 + 23844-00-00R
  • Product Specifications
    Dimensions (LxWxDxH) Long Scanner/Scanner-Scale: 20" x 11.5" x 4" x 5"
    Medium Scanner/Scanner-Scale: 15.7" x 11.5" x 4" x 5"
    Short Scanner/Scanner-Scale: 13.9" x 11.5" x 4" x 5"
    Weight Long Scanner: 14.6 lb
    Long Scanner/Scale: 17.6 lb
    Medium Scanner: 12.6 lb
    Medium Scanner/Scale: 15.7 lb
    Short Scanner: 12.1 lb
    Scale Capacity 30 lb in 0.01 lb increments
    Scale Max Static Weight 300 lb
    Interface Options Soft-Touch Capacitive pads, large 2-color LED, beeper, 4 programmable buttons
    Ports One POS Port for USB/Serial/IBM RS-485; 3 USB. 2 Powered Serial; Checkpoint interlock; Remote scale display
    Scan Method Multiple CMOS Array Imager; Illumination controlled by item detection system
    Decoding Capabilities All Standard 1D and 2D barcodes, including Digimarc
    Operating Temperature 32°F to 104°F
    Storage Temperature -40° to 158°F
    Humidity 20 to 95% non-condensing
    Warranty 1 Year Manufacturer Warranty, extensions and service contracts available

    Zebra MP7000 Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Frequestly Asked Questions

    Recommended Models

    MP7000, Scanner Scale, Long, Sapphire Glass, Flip Up Bar Platter, Customer Side Scanner, Drivers License Parsing, United States. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $2341.02 Add to Cart
    Customer Side Scanner:Included
    Drivers License Parsing:Included
    Platter Length:Long
    Configuration:Scanner/Scale
    Country:USA
    MP7000, Scale, Long, Single Interval Scale, Sapphire, Scanner, United States. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $2085.69 Add to Cart
    Platter Length:Long
    Configuration:Scanner/Scale
    Country:USA
    MP7000, Scale, Long, Single Interval Scale, Sapphire, United States. Flip Up Bar (Order Power Supply, Line Cords, and Interface Cables Separately)
    $2085.69 Add to Cart
    Platter Length:Long
    Configuration:Scanner/Scale
    Country:USA
    MP7000, Scale, Long, Single Interval Scale, Sapphire, DLP, United States. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $2085.69 Add to Cart
    Drivers License Parsing:Included
    Platter Length:Long
    Configuration:Scanner/Scale
    Country:USA

    Additional Models

    MP7000, Scanner, Long, Sapphire, DLP, Worldwide. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $1527.82 Add to Cart
    Drivers License Parsing:Included
    Platter Length:Long
    Configuration:Scanner Only
    Country:Worldwide
    MP7000, Medium, Sapphire, Worldwide, Not Standard. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $1527.82 Add to Cart
    Platter Length:Medium
    Configuration:Scanner Only
    Country:Worldwide
    MP7000, Multiplane Scanner Only, Medium, Flip Bar Platter, Third Party Scale Support, United States, Not Standard. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $1527.82 Add to Cart
    Platter Length:Medium
    Configuration:Scanner Only
    Country:USA
    MP7000, Scanner, Medium, Sapphire, DLP, Worldwide, Not Standard. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $1527.82 Add to Cart
    Drivers License Parsing:Included
    Platter Length:Medium
    Configuration:Scanner Only
    Country:Worldwide
    MP7000, Multiplane Scanner, Short, Sapphire, Worldwide, Not Standard. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $1527.82 Add to Cart
    Configuration:Scanner Only
    Platter Length:Short
    Country:Worldwide
    MP7000, Scanner, Short, Sapphire, DLP, Worldwide, Not Standard. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $1527.82 Add to Cart
    Configuration:Scanner Only
    Platter Length:Short
    Country:Worldwide
    MP7000, Scale, Long, Single Interval Scale, Sapphire, Canada/Mexico. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $2085.69 Add to Cart
    Country:Canada/Mexico
    Platter Length:Long
    Configuration:Scanner/Scale
    MP7000, Scanner Scale, Medium, Single Interval Scale, Sapphire, United States, Not Standard. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $2085.69 Add to Cart
    Platter Length:Medium
    Configuration:Scanner/Scale
    Country:USA
    MP7000, Scanner Scale, Medium, Single Interval Scale, Sapphire, DLP, United States, Not Standard. (Order Power Supply, Line Cords, and Interface Cables Separately)
    $2085.69 Add to Cart
    Drivers License Parsing:Included
    Platter Length:Medium
    Configuration:Scanner/Scale
    Country:USA

    Accessories

    Cable, Multiplane Scanner Standard USB Cable, 5M, Type A Connector
    Cable, Multiplane Scanner RS232, DB-9 Female Cable, 5M
    Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle)
    7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
    7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
    MP6000/7000 Accessory: Pole Display, Single Interval, Worldwide.
    3 Year Comprehensive Coverage for Zebra MP7000 Scanner. Includes Accidental Damage and Issues Caused By Wear & Tear. 3 Business Day Repair Depot Turnaround. Can Be Added Up to 30 Days After Product Purchase.
