Symbol LS9203
The pictures shown are general images for product LS9203 and may not be applicable to all part numbers
LS9203 Presentation Barcode Scanners
The Symbol LS9203 has reached end of life. It has been replaced by the Symbol LS9208.

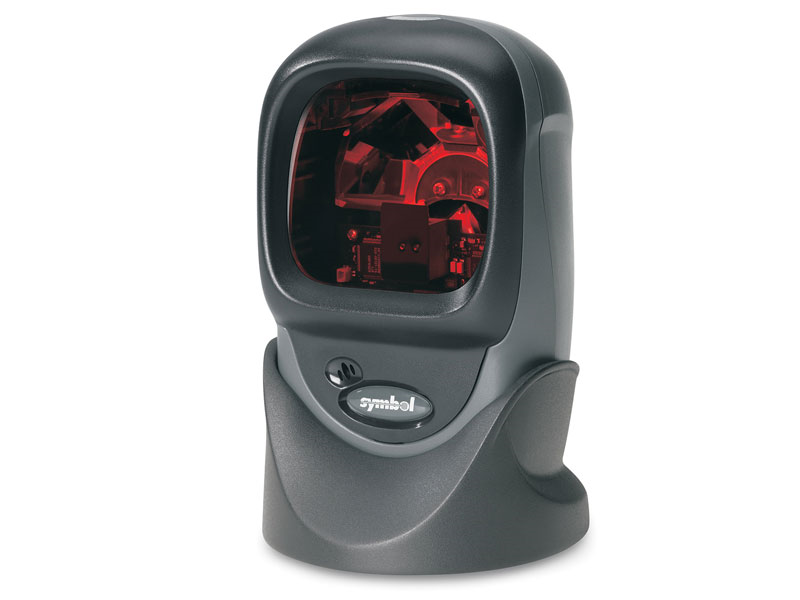

The Symbol LS9203 is a high-value, cost-effective omnidirectional scanner designed for both hands-free and handheld barcode scanning for retail operations and institutional organizations requiring dependable data entry.
Increasing the accuracy of transactions inventory tracking while reducing the costs associated with scanner maintenance, training and operations, the Symbol LS9203 provides excellent return on investment. The ease of LS9203 deployment and durability combine to lower total cost of ownership. The LS9203 is so intuitive, you need no formal training. And its small form factor suits retail environments where counter space is at a premium.
| Product Specifications | |
|---|---|
| Dimensions | 5.51 in. x 3.49 in. x 2.96 in.(14 x 8.86 x 7.52 cm) |
| Weight | Scanner only: 9.9 oz. (282 g) With stand: 12.2 oz. (379 g) |
| Color Options | Twilight Black |
| Interfaces Available | USB RS 232 Keyboard Wedge |
| Scan Method | Omni-Directional Presentation Scanner |
| Decoding Capabilities | Standard 1D Barcodes & RSS Codes |
| Mobility/Range | Corded |
| Scan Rate (Maximum) | 1500 scans/second |
| Reading Angle | Pitch: ± 50° Roll: 360° Skew: ± 50° |
| Print Contrast (Min.) | 25% |
| Typical Depth of Field | 5 mil: (38%) 1 to 2.5 in. (2.5 to 6.4 cm) 7.8 mil: (60%) 0 to 6 in. 10.4 mil: (80%) 0 to 7.5 in. (0 to 19 cm) 13 mil: (100%) 0 to 8.5 in. (0 to 21.6 cm) |
| Indicators | LED Beep |
| Auto Sense Mode | Yes, with optional handheld scanning |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -40° to 158°F (-40° to 70°C) |
| Drop Specification | Withstands repeated 4-ft. (1.2-m) drops to concrete |
| Environmental Sealing | n/a |
| Ambient Light (Max) | Fluorescent, incandescent, mercury vapor and sodium vapor: 450 foot-candles (4,844 lux) Sunlight: 8,000 foot-candles (86,111 lux) |

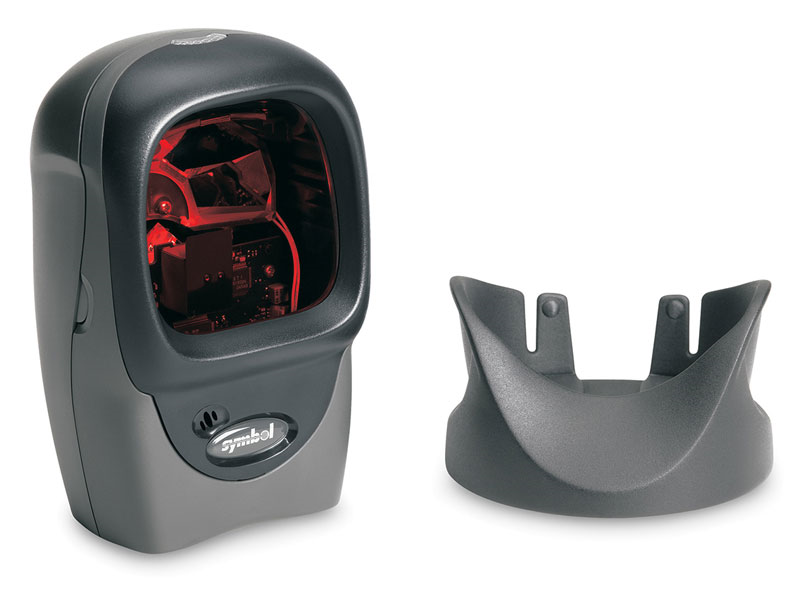

| Stand | Yes, Included |
| Warranty | 2 Year Warranty |
Symbol LS9203 Reviews
It is an ideal scanner for bright retail environments where hands free scanning is needed far more than handheld scanning.
Read the comprehensive Symbol LS9203 Review by POSGuys' Staff
Customer Reviews
| Downloads |
|---|
| Data Sheet (English) |
| Manual (Español) |
| Quick Start Guide (English) |
| Portafolio de Lectores Motorola (Español) |
Frequestly Asked Questions
Previously Available Models
