Zebra DS9908

The pictures shown are general images for product DS9908 and may not be applicable to all part numbers

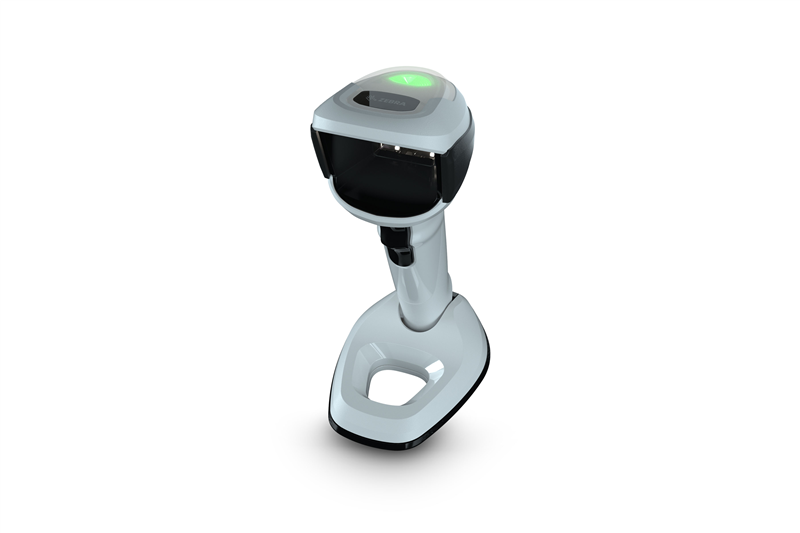

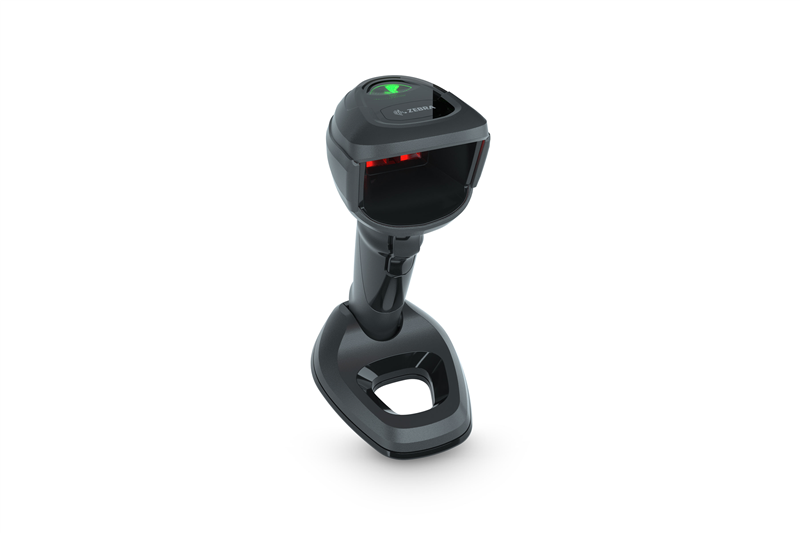

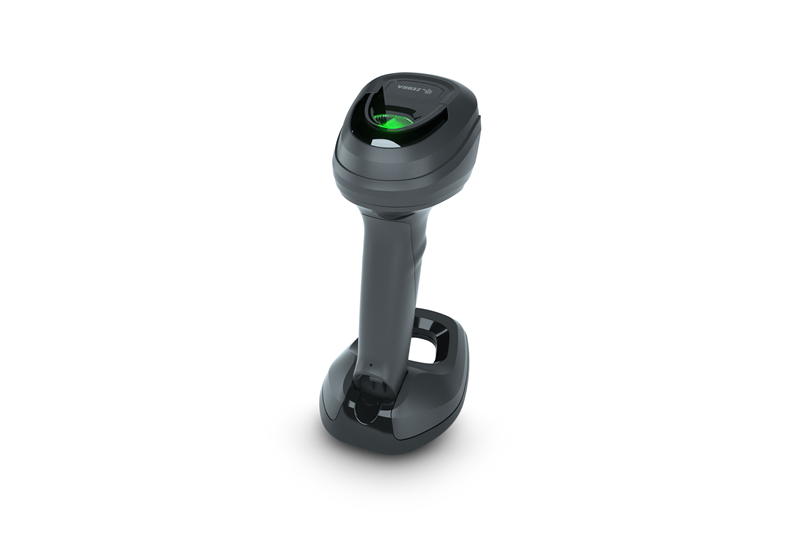

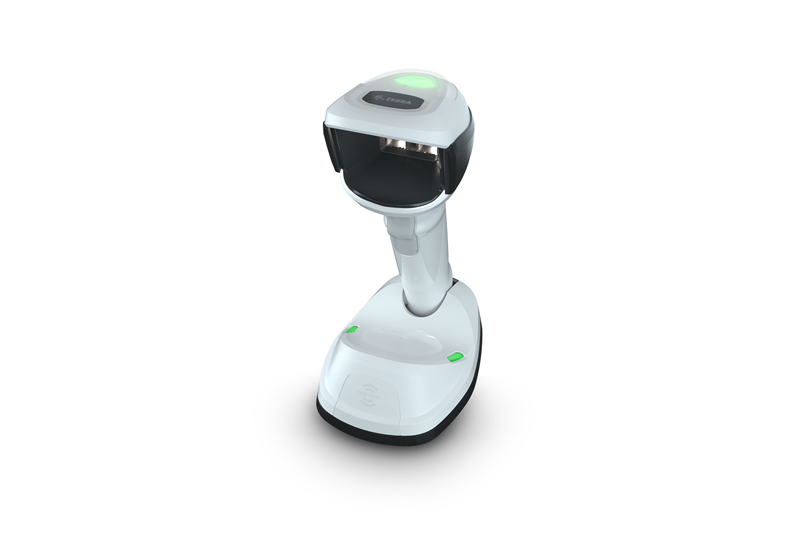

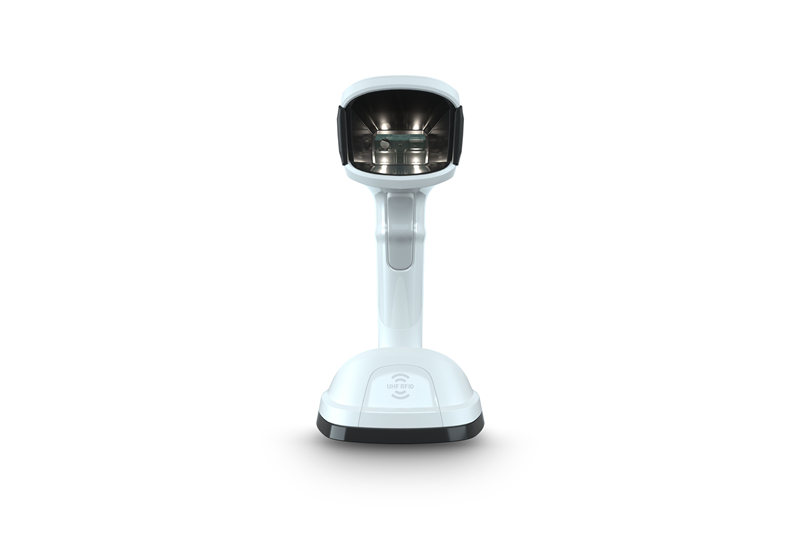

DS9908 Presentation Barcode Scanners


This product replaces the older Symbol DS9808.

The Zebra DS9908 brings mobility and stability to any retail or convenience store location, combining the best of Zebra's current-gen scanning technologies and preparing you for the future of customer service and functionality.

Scan barcodes from your sale items, read coupons off of a customer's phone, check an ID for verification, or simply check something price, the DS9908 does it all right from your countertop or in the palm of your hand. Quick scanning, versatile usage, and a durable chassis come together to give you a device that will perform for years to come. Using Multi-Code Data Formatting, the DS9908 can take in multiple barcodes in one scan and transmit them into your required fields. High-motion tolerance means you don't have to fight to keep up with a quick-moving conveyor belt or a long line of items needing to be scanned, making checkouts faster and more convenient for you and your customers. Right out of the box this scanner family is set to work with 97 different international keyboards, is backward compatible with the previous DS9808 cables, is ready for RFID implementation, and can be managed in a few minutes with rapid deployment configuration barcodes with 123Scan. You can even keep an eye on data and performance of your scanners from multiple locations with Zebra's Scanner Management Service (a no-cost addition to your fleet).

For the most promising use of this new scanner, we suggest it be used in a grocery or convenience store setting, where one is attempting to save money or counter space by not installing a combination scanner/scale. With the hybrid nature of the DS9908, picking up the scanner automatically takes you from presentation mode to the more traditional scanning mode for off-the-counter uses. You can quickly go from scanning items on your counter to scanning heavier, hard-to-reach items still in or under the customer's cart.

Features
  • Able to scan 1D, 2D, and Digimarc codes with OCR functions
  • USB/ RS-232 Serial, and Keyboard Wedge interfaces available
  • Drivers License Parsing available, reads damaged and poorly-printed barcodes
  • Fast configuration of multiple scanners with 123Scan
  • ScanSpeed Analytics help keep an eye on how your scanner is performing
  • Product Specifications
    Dimensions 8.0 in. H x 3.7 in. W x 5.2 in. D (20.3 cm H x 9.4 cm W x 13.2 cm D)
    Weight 11.6 oz / 330.0 g
    Interfaces Available USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
    Scan Method 1280 x 800 pixel Imager, Circular 617nm Amber LED Aiming Pattern
    Decoding Capabilities Standard 1D, 2D, Digimarc, and OCR (OCR-A, OCR-B, MICR, US Currency)
    Mobility/Range Corded
    Motion Tolerance Up to 240 in./610 cm per second for 13 mil UPC in optimized mode
    Reading Angle Roll: 360°
    Pitch: ±60°
    Skew: ±60°
    Indicators Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume)
    Image Capture Images taken can be exported as Bitmap, JPEG or TIFF
    Mobile Phone Scanning Capabilites Yes
    Drivers License Data Parsing Options Available
    Operating Temperature 32.0° to 122.0° F / 0.0° to 50.0° C
    Drop Specification Multiple drops at 5.0 ft./1.5 m to concrete
    2,000 tumbles
    Ambient Light (Max) 0 to 10,000 Foot Candles / 0 to 107,600 Lux
    Warranty 5-Year Manufacturer Warranty

    Zebra DS9908 Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Frequestly Asked Questions

    Recommended Models

    DS9908-SR Serial Kit: Scanner, Serial Cable & Power Supply (USA, CA, MX, JP, TW)
    Color:Black
    Interface:Serial (w/Cable)
    Imager:Standard Range
    DS9908-SR USB Kit: Scanner & Shielded USB Cable
    Color:Black
    Interface:USB (w/Cable)
    Imager:Standard Range
    DS9908-SR - Scanner Only — Order Cable Separately
    Color:Black
    Interface:No Cable
    Imager:Standard Range

    Additional Models

    DS9908-HL - HD Scanner w/Drivers License Parsing, Scanner Only — Order Cable Separately
    Color:Alpine White
    Interface:No Cable
    Imager:High Density w/DL Parsing
    DS9908-HD USB Kit: HD Scanner & Shielded USB Cable
    Color:Black
    Interface:USB (w/Cable)
    Imager:High Density
    DS9908-DL - SR Scanner w/Drivers License Parsing & Checkpoint EAS, Scanner Only — Order Cable Separately
    Color:Black
    Interface:No Cable
    Imager:Standard Range w/DL Parsing
    DS9908-DL - SR Scanner w/Drivers License Parsing, Scanner Only — Order Cable Separately
    Color:Black
    Interface:No Cable
    Imager:Standard Range w/DL Parsing
    DS9908-SR USB Kit: Scanner & Shielded USB Power+ Cable
    Color:Black
    Interface:USB Power+ (w/Cable)
    Imager:Standard Range
    DS9908-SR - SR Scanner with Checkpoint EAS, Scanner Only — Order Cable Separately
    Color:Black
    Interface:No Cable
    Imager:Standard Range/Checkpoint EAS
    DS9908-SR Black RFID USB Kit - 902-928 MHZ: DS9908-SRR0004ZZUS Scanner, CBA-U23-S07ZBR Shielded USB Power+ Cable
    $1282.02 Add to Cart
    Color:Black
    Interface:USB Power+ (w/Cable)
    Imager:Standard Range w/RFID
    DS9908: Presentation Area Imager, Standard Range, Corded, RFID, Midnight Black, 902-928 MHZ, Scanner Only — Order Cable Separately
    $1249.89 Add to Cart
    Color:Black
    Interface:No Cable
    Imager:Standard Range w/RFID
    DS9908: Presentation Area Imager, High Density, Corded, Alpine White, Scanner Only — Order Cable Separately
    Color:Alpine White
    Interface:USB Cable
    Imager:High Density

    Accessories

    Cable - Shielded Usb: Series A Connector, 7Ft. (2.1M), Straight (Updated)
    Standard Cradle Power Supply, Level VI AC/DC Power Supply Wall Adapter, w/Captive DC cable and US Adapter Clip AC Input: 100-240V, 0.2A DC Output: 5.2V, 1.1A, 5.7W (Standard Cradle Only)
    Multi-Mount - DS9908 (Midnight Black)
    Cable, Shielded USB: Series A Connector, 9ft. 2.8m, Coiled
    Cable, Shielded USB: Series A Connector, 9ft. 2.8m, Straight, EAS
    Cable, RS232, DB9 FEMALE CONNECTOR, 7FT. (2M) STRAIGHT, TXD ON 2
