Logic Controls LK8000

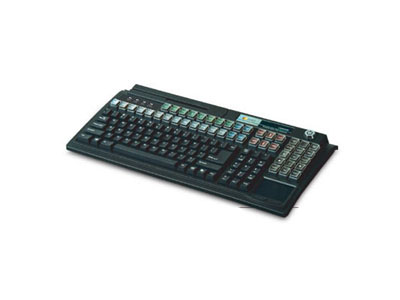

The pictures shown are general images for product LK8000 and may not be applicable to all part numbers
LK8000 Programmable Keyboard
The Logic Controls LK8000 has reached end of life. It has been replaced by the Logic Controls KB5000.
This product replaces the older Logic Controls LK6000.
The LK8000 is one of the easiest and most programmable keyboards on the market. All 122 keys are programmable with multiple layers of definitions, and 46 keys are relegendable and programmable. Using a powerful Windows-based programming utility that stores key definitions in a data file, an integrator can create a program layout for multiple keyboards, rather than programming key by key, keyboard by keyboard. 122 key QWERTY keyboard with touchpad and 2 mouse buttons
- Optional integrated magnetic stripe reader
- All 122 keys are programmable; 46 keys are relegendable and programmable
- Multiple layers of key definitions and multiple shift levels
- Programmed with a powerful Windows-based programming utility software
- Create program layout for multiple keyboards – programming utility saves templates in data files
- Program up to 1800 characters or codes per key
- Programmable inter-character and inter-string time delays
- Full travel key switches
- Programmable without special programming switches, programming kits, TSR programs or the need for internal batteries.
- Keylock switch for layer selection
- Includes cable and Windows programming utility
| Product Specifications | |
|---|---|
| Color Options | Black |
| Interface | PS/2 keyboard wedge - optional RS232C - optional USB |
| Weight | 3 lbs (1.4 kg) |
| Dimensions | 441 (l) x 214 (w) x 25 (h) mm |
| Keys | 122 full travel - 46 relegendable |
| Keyswitch Lifetime | Greater than 50 million cycles |
| Warranty | 1 Year |
