POS-X ION TP5 Pro

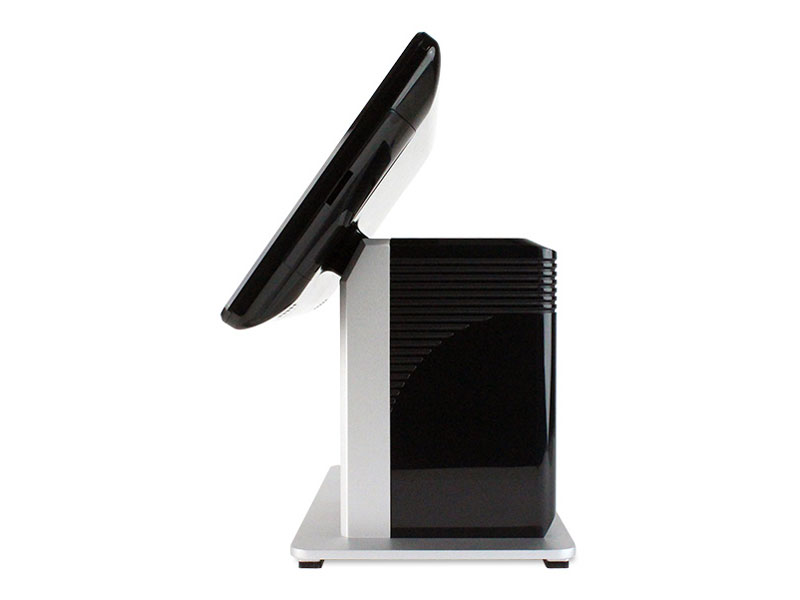

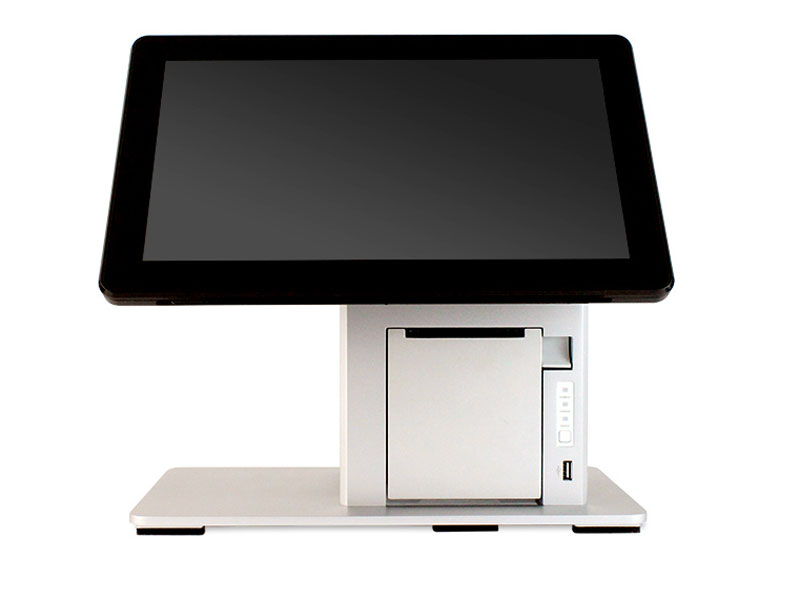

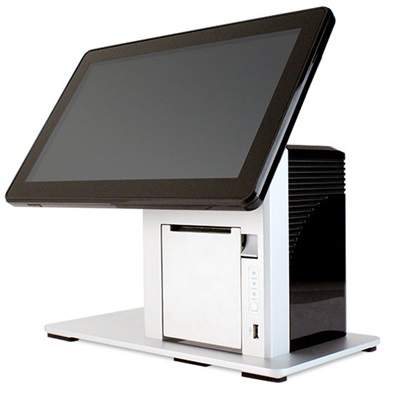

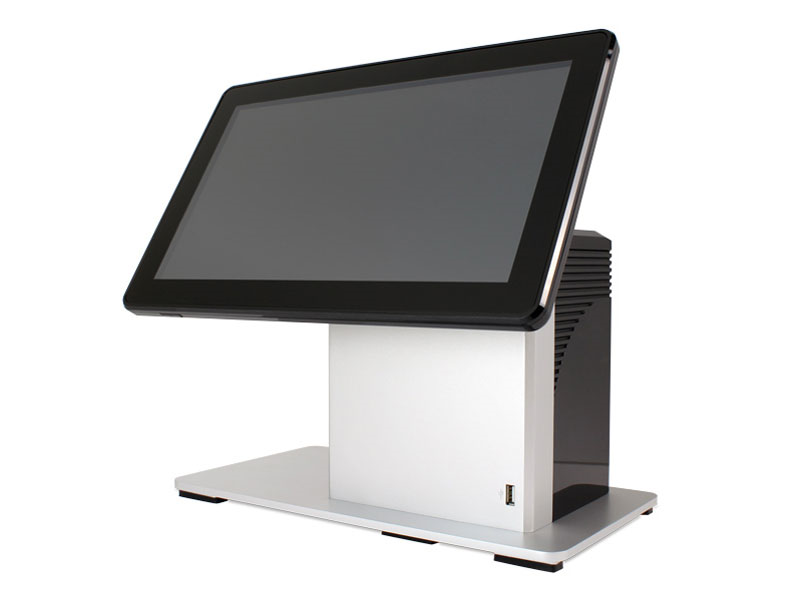

ION TP5 Pro Product Image

The pictures shown are general images for product ION TP5 Pro and may not be applicable to all part numbers

ION TP5 Pro POS Computers


The POS-X ION TP5 Pro has reached end of life.

This product replaces the older POS-X ION TP5.

The TP5 Pro features a 14″ widescreen LCD with TruFlat projected capacitive (PCAP) multi-touch technology built to take the rigors of heavy everyday use. Built on a sturdy aluminum frame, the ION TP5 Pro delivers a modern look for your business while maintaining a small footprint, saving you valuable counter space. The integrated printer means no external printer cables creating a clean, cable free environment. With a IP54 Ingress Protection Rating, the TP5 Pro was designed to withstand the harshest of environments. Built on Intel’s mobile Bay Trail technology, the fanless ION TP5 Pro is powered by Intel’s latest J1900 CPU. Making it fully capable of handling even the most demanding applications.

Features

  • 14" Widescreen PCAP Multi Touch Screen
  • Optional Integrated Printer
  • IP54 Splash Resistant Screen
  • Fanless J1900 CPU
  • 3 Year Warranty
Product Specifications
Color Black and Silver
Processor Intel Celeron J1900 up to 2.4GHz Quad Core
Hard Drive 64~120GB Half Slim SSD (Field Removable)
Operating System Windows 7
Windows 8.1
Windows 10
Memory 4~8GB DDR3
Display Type LCD 14" (356mm) LED LCD
Touch Technology Capacitive Touch 10 Point
Ports USBx5
COMx3
LAN
RJ11 Cash Drawer
Optimal Resolution 1366 x 768
Weight 12.13lbs
Dimension 14.3” x 7.8” x 13.4”
Operating Temperature 32°F to 95°F
Housing ABS
Seal Specification IP54: Splash Resistant Screen
Warranty 3YR Warranty

POS-X ION TP5 Pro Reviews

POSGuys Rating: Not Rated

Customer Reviews

Frequestly Asked Questions

Recommended Models

Ion TP5 Pro POS Terminal with Integrated Printer, Intel Celeron 2.4ghz Quad Core, 14" Wide Screen, 8GB, 120G SSD, Windows 10x64 bit (Previously ION-TP5E-F8VG)
Please Call
Integrated Printer:Printer Included
Operating System:Win 10 - Pro 64bit
Memory:8 GB
Storage:120GB SSD
Ion TP5 Pro with integrated printer (Intel Celeron 2.4GHz quad core, 4GB DDR3, 64GB SSD, Win 10 IoT x64) (Previously ION-TP5E-F4UF)
Please Call
Integrated Printer:Printer Included
Operating System:Win 10 - IoT 64bit
Memory:4 GB
Storage:64GB SSD

Additional Models

Ion TP5 Pro (Intel Celeron 2.4GHz quad core, 4GB DDR3, 60GB SSD, Win 10 Retail x64) NO PRINTER (Previously ION-TP5F-F4UF)
Please Call
Integrated Printer:No Printer
Operating System:Win 10 - IoT 64bit
Memory:4 GB
Storage:64GB SSD
Ion TP5 Pro (Intel Celeron 2.4GHz quad core, 4GB DDR3, 120GB SSD, Win 10 Retail x64) NO PRINTER (Previously ION-TP5F-F4VF)
Please Call
Integrated Printer:No Printer
Operating System:Win 10 - IoT 64bit
Memory:4 GB
Storage:120GB SSD
Ion TP5 Pro (Intel Celeron 2.4GHz quad core, 4GB DDR3, 60GB SSD, No O/S) NO PRINTER (Previously ION-TP5F-F4UN)
Please Call
Integrated Printer:No Printer
Operating System:No Operating System
Memory:4 GB
Storage:64GB SSD
Ion TP5 Pro (Intel Celeron 2.4GHz quad core, 4GB DDR3, 60GB SSD, Win 10 Pro x64) (Previously ION-TP5F-F4UG)
Please Call
Integrated Printer:No Printer
Operating System:Win 10 - Pro 64bit
Memory:4 GB
Storage:64GB SSD
Ion TP5 Pro (Intel Celeron 2.4GHz quad core, 8GB DDR3, 60GB SSD, Win 10 Retail x64) (Previously ION-TP5F-F8UF)
Please Call
Integrated Printer:No Printer
Operating System:Win 10 - IoT 64bit
Memory:8 GB
Storage:64GB SSD
Ion TP5 Pro (Intel Celeron 2.4GHz quad core, 8GB DDR3, 120GB SSD, Win 10 Retail x64) (Previously ION-TP5F-F8VF)
Please Call
Integrated Printer:No Printer
Operating System:Win 10 - IoT 64bit
Memory:8 GB
Storage:120GB SSD
Ion TP5 Pro (Intel Celeron 2.4GHz quad core, 4GB DDR3, 120GB SSD, Win 10 Pro x64) (Previously ION-TP5F-F4VG)
Please Call
Integrated Printer:No Printer
Operating System:Win 10 - Pro 64bit
Memory:4 GB
Storage:120GB SSD
Ion TP5 Pro (Intel Celeron 2.4GHz quad core, 8GB DDR3, 60GB SSD, Win 10 Pro x64) (Previously ION-TP5F-F8UG)
Please Call
Integrated Printer:No Printer
Operating System:Win 10 - Pro 64bit
Memory:8 GB
Storage:64GB SSD
Ion TP5 Pro with integrated printer (Intel Celeron 2.4GHz quad core, 4GB DDR3, 120GB SSD, Win 10 IoT x64) (Previously ION-TP5E-F4VF)
Please Call
Integrated Printer:Printer Included
Operating System:Win 10 - IoT 64bit
Memory:4 GB
Storage:120GB SSD
Ion TP5 Pro with integrated printer (Intel Celeron 2.4GHz quad core, 8GB DDR3, 120GB SSD, Win 10 IoT x64) (Previously ION-TP5E-F8VF)
Please Call
Integrated Printer:Printer Included
Operating System:Win 10 - IoT 64bit
Memory:8 GB
Storage:120GB SSD
Ion TP5 Pro with integrated printer (Intel Celeron 2.4GHz quad core, 4GB DDR3, 64GB SSD, Win 10 Pro x64) (Previously ION-TP5E-F4UG)
Please Call
Integrated Printer:Printer Included
Operating System:Win 10 - Pro 64bit
Memory:4 GB
Storage:64GB SSD
Ion TP5 Pro with integrated printer (Intel Celeron 2.4GHz quad core, 4GB DDR3, 120GB SSD, Win 10 Pro x64) (Previously ION-TP5E-F4VG)
Please Call
Integrated Printer:Printer Included
Operating System:Win 10 - Pro 64bit
Memory:4 GB
Storage:120GB SSD
Ion TP5 Pro with integrated printer (Intel Celeron 2.4GHz quad core, 8GB DDR3, 64GB SSD, Win 10 Pro x64) (Previously ION-TP5E-F8UG)
Please Call
Integrated Printer:Printer Included
Operating System:Win 10 - Pro 64bit
Memory:8 GB
Storage:64GB SSD

Accessories

3-Year Rapid Replacement Warranty (Must be purchased within 30 days of product purchase.) (Previously ZOE-TPC3)
5-Year Rapid Replacement Warranty (Must be purchased with 2 year warranty extension and within 30 days of product purchase.) (Previously ZOE-TPC5)
TP5 2-Year Warranty Extension (Previously ZWE-TPC)
ION Integrated MSR, 3-Track, ION TP5 14" (Previously ION-MR514)

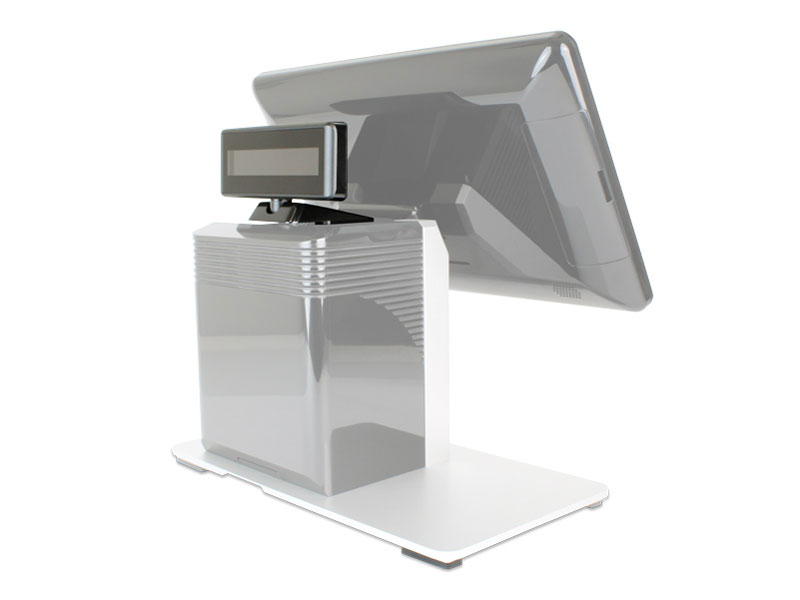

ION TP5 Pro 2-line Rear Display (Previously ION-RD5-FLCM)
ION TP5 Pro 10" Rear Display (Formerly ION-RD5-FLCD10)
Integrated rear touch display for ION TP5 Pro (10" LCD w/VGA Cable & Mount): Compact 10" LCD display is perfect for digital signage or signature capture. (Old POS-X part number ION-RD5-FTLCD10)

Previously Available Models
