Pioneer 15-Inch S-Line

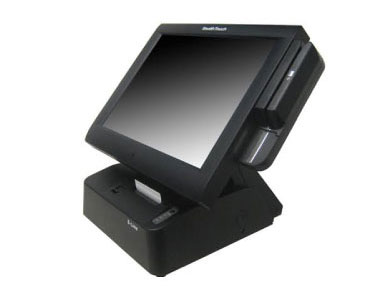

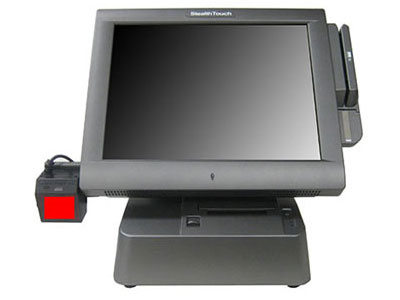

15-Inch S-Line Product Image

The pictures shown are general images for product 15-Inch S-Line and may not be applicable to all part numbers

15-Inch S-Line POS Computers

The Pioneer 15-Inch S-Line has reached end of life. It has been replaced by the Pioneer S-Line II.

The Pioneer 15" S-Class POS Computer provides a space saving solution for restaurants, retailers, or hospitality locations. An integrated Epson 3" thermal printer puts fast, reliable printing in the POS computer itself, cutting down on clutter at your checkstand.

The S-Class comes equipped with a 15" monitor running at a native 1024x768 resolution, fantastic for displaying most restaurant and retail applications on the market. Available with your choice of Resistive, InfraRed, or Capacitive touchscreen technologies, there's a model of S-Class ideally suited for success at your business. The POS computer is powered by an Intel Atom, Dual Core, or Core 2Duo processor, able to run POS software with ease, either as a server or secondary station.

The integrated receipt printer in the S-Class saves space at your checkstand while providing tremendous capabilities. A maximum print speed of 9.8" per second ensures receipts and orders are printed quickly and with no hassle. The printer can connect via serial or USB interface, freeing up a port if needed. To minimize downtime, the integrated printer is field-replaceable, eliminating the hassle of shipping the entire POS computer in for repair.

To save more space, the 15" S-Class offers integrated accessories. Data capture is a snap with the integrated omni barcode scanner and side-mounted 3-track magnetic card reader. For customer displays and digital signage, Pioneer's rear-mounted customer display and 8" LCD provide a fantastic way to tell customers of current and upcoming deals. Shipping with a 3-year warranty standard, the Pioneer 15" S-Class POS computer offers years of great service.

  • 1.6 GHz Intel Atom, 1.9 GHz Intel Dual Core, or 2.5 GHz Intel Core 2Duo Processor
  • 1 GB to 4 GB RAM
  • Windows XP Pro, XP Embedded, POS Ready, Windows 7
  • 15" LCD display with Resistive, InfraRed, or Capacitive touchscreen
  • Epson 3" wide thermal printer (9.8" per sec print speed, auto cutter)
Product Specifications
Color Options Black
Memory 1GB, 2GB, 3GB, 4GB (only on Dual Core/Core 2 Duo models)
Processor Intel Atom 1.6GHz, Dual Core 1.9GHz, Core 2 Duo 2.53GHz
Hard Drive 80GB SATA Hard Drive, 4GB Compact Flash
Operating System XP Prof, WePOS, POS Ready, XP embedded, Windows 7, Linux
Ports 4 Serial
6 USB 2.0
2nd VGA
Powered USB 12V, +24V
Intel 10/100/1000 BaseT Ethernet
Optional Cash Drawer
Optional Parallel
Display Type 15" Active Matrix TFT LCD
Screen Resistive, InfraRed, Capacitive
Style Desktop
Aspect Ratio 4:3
Optimal Resolution 1024x768
Weight 26 lbs
Bezel Standard
Colors Black
Dimensions 14.5 (16.25 with MSR) x 15.0 x 13.0inches
Operating Temperature 0° C to 40° C, 20% to 80% Humidity
Power Supply 150W, AC 100-240V
Speakers Optional
Optional Peripherals MSR
Rear Customer Display, 2x20
Rear Customer Display, 8" LCD
MSR & Fingerprint Reader
Privacy Filter - Factory Installed
Omni-directional Barcode Scanner
Warranty 3 Year
Return Policy All Sales Final

Pioneer 15-Inch S-Line Reviews

POSGuys Rating:

Customer Reviews


S-Line Rear Customer Display: 2 x 20
S-Line Rear Customer Display: 2 x 20, Logic Controls PD3000
S-Line MSR: Integrated, 3-Track, USB Interface
S-Line Rear Customer Display: 8", LCD, Bracket Included
Barcode Scanner: USB Interface, Bracket Included, 1D Only
S-Line Warranty Upgrade: 3 Year Warranty Including Hot Swap, Continental US Only

Previously Available Models
