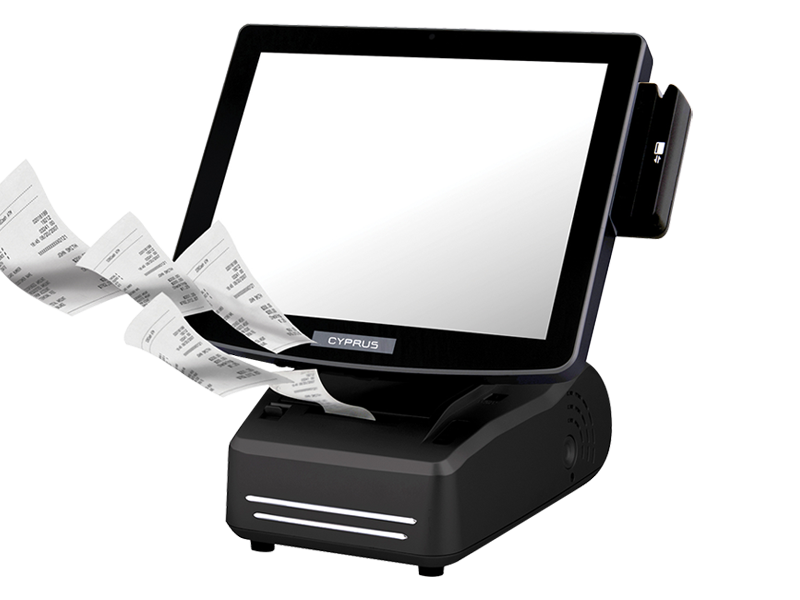

Pioneer S-Line II
The pictures shown are general images for product S-Line II and may not be applicable to all part numbers
S-Line II POS Computers
This product replaces the older Pioneer 15-Inch S-Line.
This product is custom manufactured by Pioneer on an order-by-order basis. Please expect an additional 4-5 days for delivery.
The S-Line II redefines the all-in-one design by integrating an EPSON® thermal receipt printer into a touchcomputer. Its compact design allows easy setup (watch video), and will save precious counter space, reduce cable clutter, and last but not least, generate additional revenue.
The S-Line can load the most commonly used paper size: 80mm (3 1/8") wide by 80mm (3 1/8") diameter. The printer has a quiet operation and prints a fast 250mm (9.8") per second. It has an auto-cutter which will help reduce paper jams. Replacing the paper is very easy, and works just like any standard thermal printer.
The most exciting feature of the S-Line is the printer's patented tool-less "slider" design. It allows the printer to be easily replaced in the field in about a couple minutes, without affecting the entire system.
The S-Line stands 15" tall and 14.5" wide (16.25" with MSR), and will free up the space beside your POS terminal by eliminating the need of an external printer. You can now use this space to generate additional revenue by displaying advertisements or selling merchandise.
The S-Line has a True Flat 15" touch, and can run up to Intel's Core i7 processor. It runs most Windows operating systems, and offers a wide range of integrated peripherals, such as magnetic stripe reader, biometric reader, barcode scanner, and secondary display. Expandability includes Intel Gigabit network, 4 Serials, 6 USB, poweredUSB +12V and +24V.
Product Specifications | |
---|---|
Display | 15" LCD, Active matrix TFT, 1024x768 |
Spill-proof | Yes (front panel) |
Network/Ethernet | Intel 10/100/1000 BaseT. Option: Wifi RF802.11 a/g/n |
Serial Ports | 4 |
Parallel Port | Optional |
USB Port | Atom model: 5 x USB 2.0 / Core-i model: 2 x USB 2.0, 3 x USB 3.0 |
Powered USB | +12V, +24V |
2nd VGA | 1 (supports dual view) |
Printer (built-in, field-replaceable) | EPSON® 3" Thermal with autocut, Speed : 250mm (9.8") per second, Driver : Epson ESC/POS, Windows, OPOS Interface : Serial or USB, Paper Width : 80mm / 3.125", Diameter : 80mm / 3.125" |
Cash Drawer Port | Optional (Epson emulation, +24V) |
Dimensions (W x D x H) | 14.0 x 11.9 x 15.5 (16.3 when Full Tilt) inches |
Weight | 26 lbs |
