Epson TM-H6000III

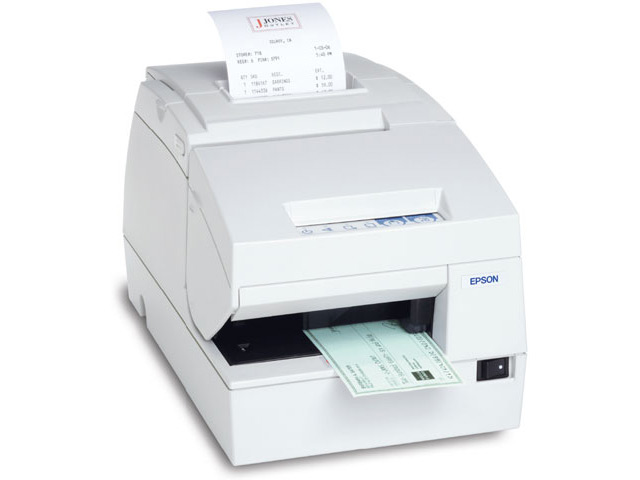

TM-H6000III Product Image

The pictures shown are general images for product TM-H6000III and may not be applicable to all part numbers

TM-H6000III Receipt Printer


The Epson TM-H6000III has reached end of life. It has been replaced by the Epson TM-H6000IV.

The high performance TM-H6000III delivers high-speed receipt and slip printing, endorsement, advanced QuickPass check processing and two-color graphics all in one compact, reliable printer. With QuickPass technology, the TM-H6000III reads MICR and prints and endorses a check in a single pass, shortening check printing time by over 50%. Through Epson's Connect-It interfaces, the printer is compatible with IBM POS systems and best-of-breed component-based POS systems.

Click Here for Additional Warranty Information

***Windows Vista Drivers Currently not Available***

Requires PS180 Power Supply found in Accessories

For the latest printer in the Epson TM-H6000 series, visit the Epson TM-H6000IV.

Product Specifications
Dimensions 7.3W x 11.7D x 7.3H in. (186 x 298 185 mm)
Weight 11.7 lb (5.3 kg)
Color Options White, Dark Grey
Interface RS-232C / Bi-directional parallel / RS-485 / USB / IBM® P7 / Connect-It*
Print Method Receipt: thermal line printing - Slip: 9-pin, serial impact dot-matrix - Endorsement Printer: 8-pin shuttle impact dot-matrix
Print Speed 200 mm / sec
Print Resolution 180 x 180 dpi
OPOS Compatible Yes
Character Set 95 Alphanumeric, 37 International, 128 x 8 Graphic, Japanese or Taiwanese Kanji (factory option)
Character/Line 42 (font A, default), 56 (font B)
Graphics Printing Yes
Barcodes Supported Ladder bar code is not supported, HRI character must be added, use the ERC-32(B) black ink ribbon cassette that is sold separately
Operating Temperature 41°F - 113°F (5°C - 45°C)
Data / Logo Storage 4K bytes (45 bytes) Data Buffer (up to 384 KB for graphic files)
MCBF Receipt Printer: 72,000,000 lines - Slip/Validation: 37,000,000 lines - Endorsement: 3,300,000 lines
Print Head Life Receipt Printer: 100 million pulses (when using monochrome thermal paper), 50 km (when using two-color thermal paper) - Slip/Validation: 200 million characters
Auto Cutter Lifespan 1,500,000 cuts
Paper Dimensions 79.5 mm width (3.13 in), 83 mm roll diameter (3.27 in)
Paper Thickness Receipt Printer: 0.06 to 0.09mm {0.0024 to 0.0035 in} - Slip/Validation: 0.09 to 0.31mm {0.0035 to 0.012in} - Endorsement: 0.09 to 0.2mm {0.0035 to 0.0079 in}
Two Color Printing Capabilities Yes - requires two-color paper rolls
Sensors Nearly out of paper sensor and paper out sensor - Slip/Validation: TOF (top of form) sensor, BOF (bottom of form) sensor, validation sensor, slip/validation eject sensor - Receipt section: cover open sensor, unit cover open sensor - Slip Section: front cover open sensor
Auto Cutter Optional
Wall Mountable No
Mac Compatible No
In The Box Printer, users manual, 1 roll paper, power switch cover, exclusive ribbon cassette ERC-32, endorsement ribbon cassette (only for printers equipped with the optional endorsement print mechanism)
Check Endorsing Optional
MICR Reader Optional
Slip Printing Yes
