Epson TM-H6000IV

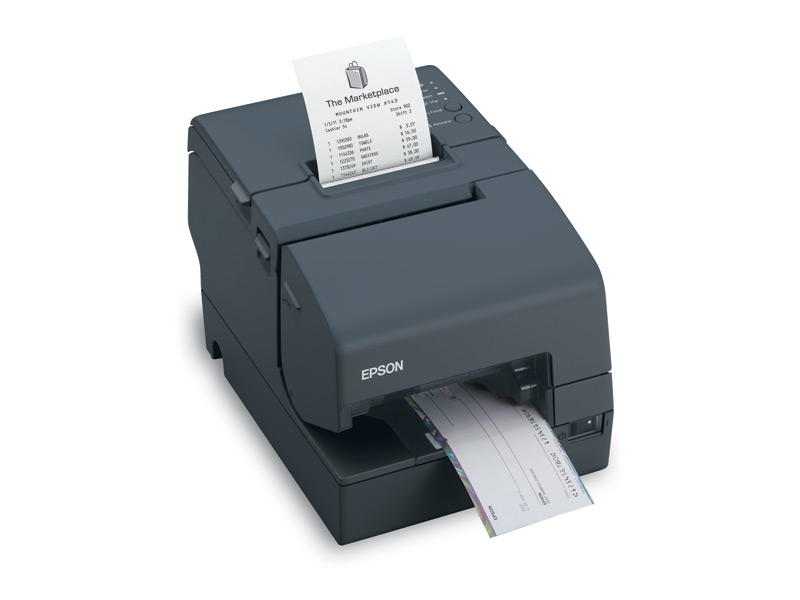

The pictures shown are general images for product TM-H6000IV and may not be applicable to all part numbers




White, Dark Grey
TM-H6000IV Receipt Printer
The Epson TM-H6000IV has reached end of life. It has been replaced by the Epson TM-H6000V.
This product replaces the older Epson TM-H6000III.
Other features of the TM-H6000IV include drop-in paper loading, an autocutter, printer status LED lights, industry leading 99.9% MICR accuracy and crisp high resolution graphics. It is compact, durable and features best-in-class reliability including an MCBF (Mean Cycles Between Failure) of 96 million lines. This multifunction printer is a versatile and reliable solution for any business, sure to speed up check out and conserve space with any POS system.
Features
** Several configuration of the TM-H6000IV are qualified Energy Star products while others are not. The following part numbers are Energy Star qualified: C31CB25901, C31CB25902
Product Specifications | |
---|---|
Weight | Approx. 9.7 lb (4.4 kg) |
Color Options | White, Dark Grey |
Dimensions | 7.32W x 10.95D x 7.13H in 186W x 278D x 181H mm |
Interface | USB, ethernet, RS-232C, Bi-directional parallel, Connect-It |
Print Method | Receipt: Direct thermal Slip: 9-Pin serial impact dot matrix Endorsement: 8-Pin shuttle impact dot matrix |
Print Speed | Receipt: 300 mm / sec, 94 lps (lines per second) Slip: Up to 5.7 lps (lines per second) Endorsement: Up to 4.0 lps (lines per second) |
Print Resolution | 180 x 180 dpi |
OPOS Compatible | Yes |
Character Set | 95 Alphanumeric, 37 International, 128 x 12 Graphic, Simplified and Traditional Chinese |
Character/Line | 42 characters per line (font A), 56 characters per line (font B) |
Barcodes Supported | Receipt: 1D and 2D barcodes |
Graphics Printing | Yes |
Data / Logo Storage | 45 bytes or 4 KB (up to 384 KB for graphic files) |
Operating Temperature | 41°F - 113°F 5°C - 45°C |
MCBF | Receipt: 96,000,000 Lines Slip: 29,000,000 Lines Endorsement: 65,000,000 Lines |
Print Head Life | Receipt: 150 Million pulses, 150 km |
Auto Cutter Lifespan | 2 Million cuts |
Paper Dimensions | Receipt: 3.13 in width, 3.27 in roll diameter (79.5 mm width, 83 mm roll diameter) Slip: 2.76 to 5.82 in width by 5.91 to 8.27 in length (70 to 148 mm width by 150 to 210 mm length) |
Paper Thickness | Receipt: 0.06 to 0.09 mm Slip:0.09 to 0.47 mm Endorsement: 0.09 to 0.2 m |
Two Color Printing Capabilities | No |
Auto Cutter | Yes - scissors type with partial cut |
Sensors | Cover open, top of form, bottom of form, slip eject, roll paper near end, paper out |
Wall Mountable | No |
Mac Compatible | No |
In The Box | Printer, 1 roll paper, 1 ink cartridge, power switch cover, connector cover, user manual Optional: AC adapter (model PS-180), AC cable (model AC-170), interface boards (UB series), EPSON customer display series (DM-D), paper guide for 58 mm width paper (model PG-58II) |
Check Endorsing | Optional |
MICR Reader | Optional |
Slip Printing | Optional |
Epson TM-H6000IV Reviews
Note: This is a reliable energy efficient multifunction printer, and does indeed print 50% faster than its predecessor but if your business and receipt printing needs involve color printing than try the TM-TM-H6000III model instead.
Customer Reviews
Downloads |
---|
Data Sheet |
Manual |
TM Virtual Port Driver |
Windows Driver |
