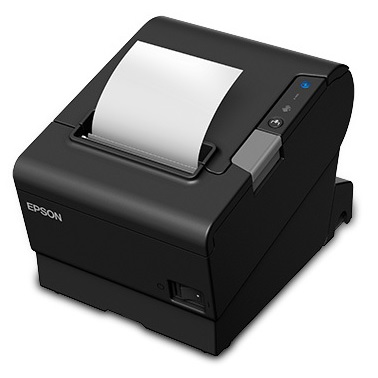

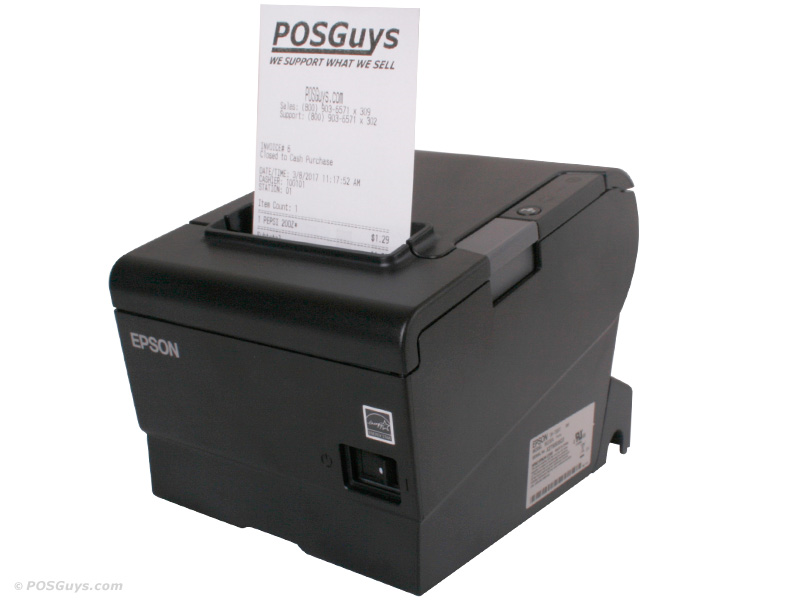

Epson TM-T88VI

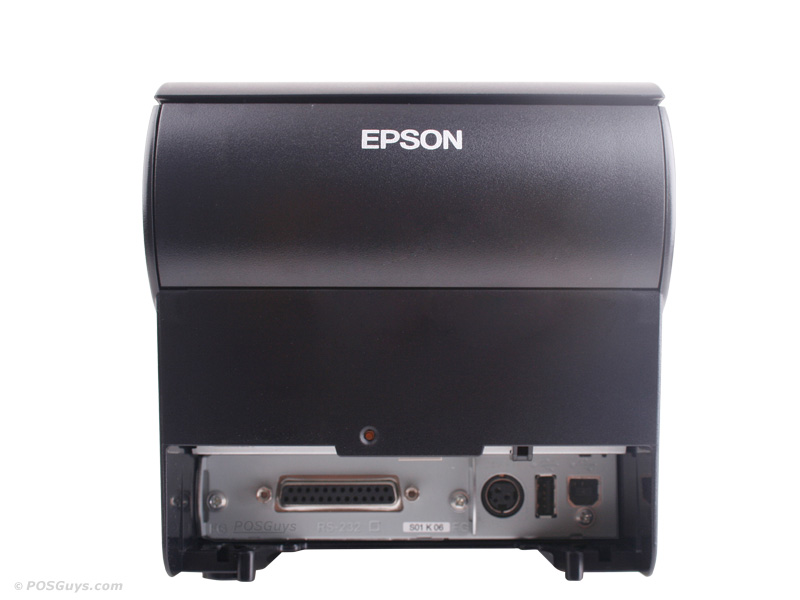

First, and foremost, check the cable connection between the cash drawer, and the printer. On the Epson TM-T88VI, there is an Ethernet port on the left hand side, that is black in color, and then in the center, on the back, there is a white port that says DK. This port is the cash drawer port. You will want to make sure that the printer is turned off when plugging the cable in.

If the cash drawer stil will not pop open, then it may be a setting within the device driver that needs to be enabled. Typically, you can check this by going into the Devices and Printers section of Control Panel. Once in there, right click on the printer driver, and select Printer Properties. From there, select the Advanced tab. Click on Printing Defaults. Click on Peripherals. Select either Start of Document or select End of Document. From the drop down box, select Cash Drawer. Try both pin 2 or pin 5 and perform an Operation Check after opening both pins, to verify which pinout you need.

If you are still experiencing issues after this, please contact POSGuys Technical Support department either at [email protected] or via phone at 1-800-903-6571 ext 302.

Required Items

• The Epson OT-WL06 Adapter
• Epson TM Printer compatible with the version of OT-WLXX adapter you have
• Serial number of the printer
• WIFI Computer, Tablet or Phone
• A working network Wi-Fi, making sure you know the WIFI name and password

Configuring the Adapter using AP (Access-Point) Mode

1. Plug the OT-WL Adapter to the printer and then turn the printer on
2. Once the printer is powered on, use your chosen computer or device to search for available WIFI networks.
3. There should be a network named EPSON_Printer
4. Connect to that network using the password 12345678
5. Once connected, open a web browser and go to the address 192.168.192.168
6. Your browser will display an "untrusted connection" message. Click on the Advanced option and then click 'proceed to the site'
7. When you reach the site, it will prompt for a Username and Password, which are as follows
   • Username: epson
   • Password: [Enter the Serial number of the printer, this is case sensitive]
   • Note: older models will use ‘epson’ as both the username and password

8. Select the Wireless option from the menu located on the left side of the page
9. In the SSID field, delete the EPSON_Printer and replace it with your WIFI network name. Please double check as it is case sensitive
10. Enter the password to the wifi network into the field for WPA Pre-Shared Key field
    • Note: If the incorrect wifi name or password is saved, the printer will need to be reset. For this follow the instructions for Interface Reset from the manual
11. Once those steps are complete, click Send at the bottom of the page.
12. After it confirms ‘Configuration Sent’, click the Reset option from the left hand side of the screen
13. The printer will reboot and connect to the wireless address it was given; once its successful it should print its new network info.

Units with 40.51B or later would need to use a OT-WL05 or OT-WL06 adapter. [Read More]

This feature is enabled in the Epson TM Driver in Windows. After installing the printer driver, follow the

1. Open the Windows Start menu
2. Type or select Control Panel
3. Go to Devices and Printers
4. Right-click on the Epson printer
5. Select Printer Properties
6. Go to the Advanced Tab
7. Click Printing Defaults
8. Go to the Peripherals Tab
9. Select Cash Drawer from the drop-down Menu
10. Select Open under the Cash Drawer #1 section
11. Click Apply
12. Click OK
