Epson TM-T90
The pictures shown are general images for product TM-T90 and may not be applicable to all part numbers

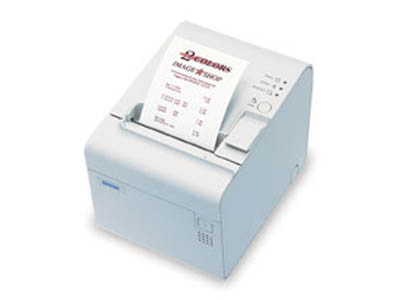

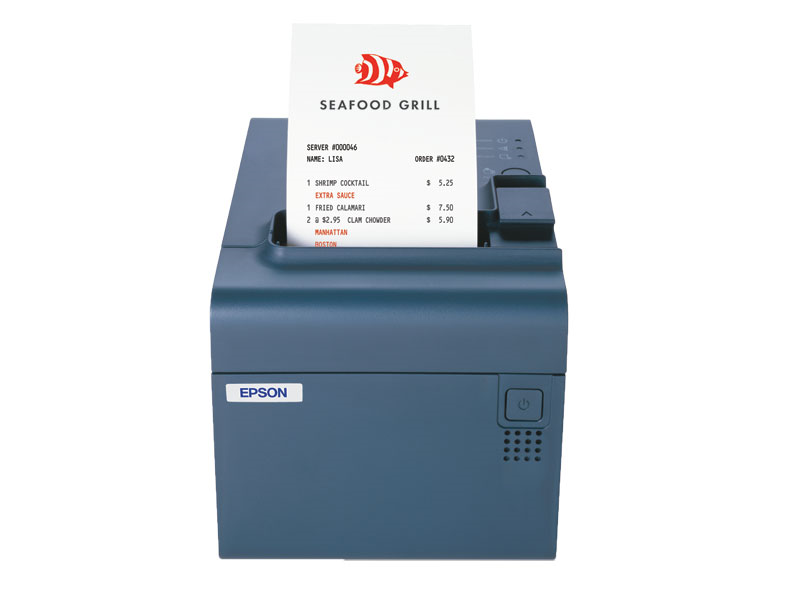

TM-T90 Receipt Printer
The Epson TM-T90 has reached end of life. It has been replaced by the Epson ReadyPrint T20.
Epson's TM-T90 thermal printer is the ideal solution when you want one or two-color receipt printing at the highest speed available. Built with the same high quality and reliability of Epson's best-selling TM-T88II, the TM-T90 brings you the added advantages of increased speed, cost-effective graphics printing, and larger paper roll capacity. It's the perfect choice for retail stores and restaurants that demand high-volume printing with both one and two-color capability.
Click Here for Additional Warranty Information
***Windows Vista Drivers Currently not Available***
Click Here for Additional Warranty Information
***Windows Vista Drivers Currently not Available***
Product Specifications | |
---|---|
Weight | 3.97 lb (1.8 kg) |
Dimensions | 5.51W x 5.83H x 7.91D in. (140 x 148 x 201 mm) |
Color Options | White Dark Grey |
Interface | RS-232C / Bi-directional parallel, Dealer option: RS-485, USB, 10 Base-T I/F |
Print Method | Thermal line printing |
Print Speed | Normal: 6.69 in / sec maximum (170 mm / sec) - Two Color: 3.95 in / sec maximum (100 mm / sec) |
Print Resolution | 180 x 180 dpi |
Character Set | 95 Alphanumeric, 37 International, 128 x 11 Graphic |
Barcodes Supported | UPC-A, UPC-E, JAN8 (EAN), Jan13 (EAN), ITF, CODE39, CODE93, CODE128, CODABAR, PDF417 |
MCBF | 70,000,000 lines (single-color thermal paper used) - 35,000,000 million lines (two-color thermal paper used) |
Paper Dimensions | 58 - 80 mm (80 mm factory setting) |
Sensors | Status LED lights - error LED, nearly out of paper LED, power LED |
Operating Temperature | 41°F - 113°F (5°C - 45°C) |
Wall Mountable | Yes - optional WH-10 wall mounting bracket required |
In The Box | printer, paper roll, power switch cover, control panel label used for vertical installation, 4 rubber feet for vertical installation, hexagonal lock screws (2 pieces, only for the serial interface), AC adapter (may not be included with the printer) |
