Epson TM-U230

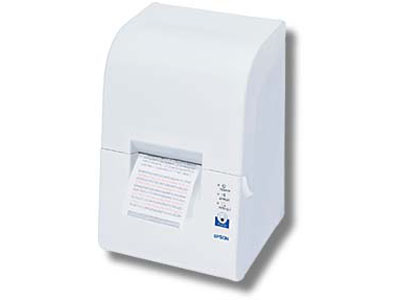

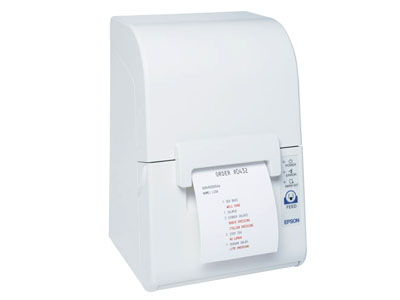

TM-U230 Receipt Printer


The Epson TM-U230 has reached end of life.

Epson's TM-U230 single-station impact printer is ruggedized to provide reliable, high-quality performance in kitchen environments. Built with the same high quality and reliability of Epson's best-selling TM-U200B impact printer, the new TM-U230 offers fast, two-color order printing and an exceptionally durable case that stands up to harsh kitchen conditions. It also offers Epson's exclusive right-side-up printing for easy reading of kitchen orders.

Click Here for Additional Warranty Information

***Windows Vista Drivers Currently not Available***

Cable Not Included, See Accessories Below
Product Specifications
Dimensions 6.5W x 6.6D x 10.2H in. (166 x 168 x 259.5 mm)
Weight 6.17 lb (2.8 kg)
Color Options White, Dark Grey, (Dark Grey comes with coated case only)
Interface RS-232, Bi-directional parallel, Dealer option: RS-485, USB, Connect-It family*
Print Method 9-pin, serial impact dot-matrix
Print Speed 3.5 lines per second (at 40 columns, 16 cpi) - 6.4 lines per second (at 16 columns, 16 cpi))
Character Set 95 alphanumeric, 37 international characters, 128 × 8 graphic
Character/Line 16 characters per in (7 x 9 font) / 13.3 characters per in (9 x 9 font)
Graphics Printing 128 x 8 Graphic
Operating Temperature 32°F to 122°F (0 to 50°C)
MCBF 18,000,000 lines
Auto Cutter Lifespan 1 million cuts
Paper Dimensions 2.99 in width, 3.27 in roll diameter(76 mm width, 83 mm roll diameter)
Paper Thickness 0.06 - 0.085 mm (0.0024 to 0.0033 in.)
Two Color Printing Capabilities Yes - black, purple or black/red (optional ribbons)
Data / Logo Storage 1 KB / 16 KB
Sensors Status LED lights - error LED, nearly out of paper LED, power LED
Auto Cutter Yes
Wall Mountable Yes - optional WH-10 wall mounting bracket required
Mac Compatible No
In The Box Printer, ribbon cassette, 1 roll paper, switch panel label used for horizontal installation, AC adapter and power supply box (may not be included), hexagonal lock screws (two pieces, only for the serial interface)

Epson TM-U230 Reviews

POSGuys Rating:

Customer Reviews

Add a customer product review

Reviewed by: Richard of Menlo Park CA

Purchased: Epson TM-U230 Receipt Printer Color: Dark Grey with Coated Case Power Supply Serial Interface (C31C391201)

Recommended Models

TM-U230 Receipt Printer, Color: Dark Grey with Coated Case & Power Supply, ROHS, Parallel Interface
This model has reached end of life.
Please Call
  • color: Gray
  • interface: Parallel
TM-U230 Receipt Printer, Color: Dark Grey with Coated Case, & Power Supply, Serial Interface
This model has reached end of life.
Please Call
  • color: Gray
  • interface: Serial
TM-U230 Impact Receipt Printer, Color: Dark Gray with Coated Case, PS180 power supply, Parallel Interface
This model has reached end of life.
Please Call
  • color: Dark Gray
  • interface: Parallel
TM-U230, Receipt Printer, Color: Dark Grey with Coated Case, & Power Supply, ROHS, Ethernet E03 Interface
This model has reached end of life.
Please Call
  • color: Gray
  • interface: Ethernet

Additional Models

Receipt Printer, Color: White with Coated Case, & Power Supply, Serial Interface
This model has reached end of life.
Please Call
  • color: White
  • interface: Serial
TM-U230, Receipt Printer, Color: Dark Grey with Coated Case, & Power Supply, ROHS, Ethernet Interface (Replaced by part number #C31C391A8601)
This model has reached end of life.
Please Call
  • color: Gray
  • interface: Ethernet
Impact Receipt Printer, Color: White with, Coated Case and PS180 Power Supply, Ethernet Interface
This model has reached end of life.
Please Call
  • color: White
  • interface: Ethernet

Accessories

03019 6-Foot Null Modem Serial Printer Cable (9 to 25 pin): Beige $10.00 Add to Cart
C32C845030 Wall Hanging Bracket, ROHS for the U220, U300B/D, U230, T88 and L90 $43.00 Add to Cart
ERC-38B Ribbon (Black, 10 Ribbons-Case) for TM-U200, TM-U300 Series and TM-U375 Printers $25.00 Add to Cart
ERC-38BR Ribbon (Black-Red, 10 Ribbons-Case) for TM-U200 and TM-U300 Series Printers $22.00 Add to Cart
28102 6 Foot USB Printer Cable: Black, A to B $12.00 Add to Cart
13172 6-Foot USB Printer Cable: White, A to B $12.00 Add to Cart
02798 6-Foot Parallel Printer Cable, DB25M/CENT36M, Beige $13.00 Add to Cart
XWP-2P90 (Case of 50 Rolls) 3.00 Wide 2-Ply (Also known as 4005) $82.00 Add to Cart
ECTMB-I 1-Year Extended Care for Epson TM-H, SecurColor, TM-U, P60, TM-S, and PLQ Series $95.95 Add to Cart
ECTMB-II 2-Year Extended Care for Epson TM-H, SecurColor, TM-U, P60, TM-S, and PLQ Series $135.95 Add to Cart
