Epson TM-U325

The pictures shown are general images for product TM-U325 and may not be applicable to all part numbers

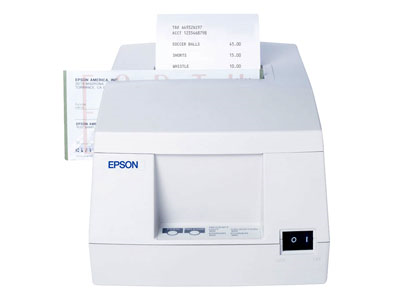

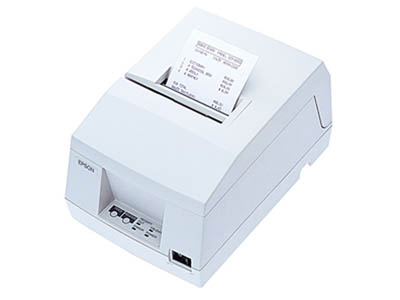

TM-U325 Receipt Printer

The Epson TM-U325 has reached end of life. It has been replaced by the Epson TM-H6000V.

This product replaces the older Epson TM-U230.

The Epson TM-U325 is a cost-effective choice for environments that need the benefits of both receipt and validation printing all in one space-saving printer. Fast and quiet, the TM-U325 provides crisp, clean receipts and handles up to nine lines of validation printing. The drop-in roll paper loading system enables easy paper replacement and the semiautomatic paper loading function reduces the work for busy operators.

Click Here for Additional Warranty Information

Product Features:

  • Receipt and validation printing in a compact footprint
  • Quiet, 6.4 lps receipt printing speed
  • Handles up to 9 lines of validation
  • User-friendly features such as drop-in paper loading and Auto Status Back (ASB) messages
  • Connect-It interfaces for system compatibility
  • Renowned Epson quality, reliability, dependability

    ***Windows Vista Drivers Currently not Available***
  • Product Specifications
    Dimensions 6.46W x 9.45D x 5.35H in (164 x 240 x 136 mm)
    Weight 5.07 lb (2.3 kg)
    Color Options White, Dark Grey
    Interface RS-232C / Bi-directional parallel / Connect-It*
    Print Method 9-pin, serial impact dot-matrix
    Print Speed Approx. 3.5 LPS (at 40-column printing), approx 6.4 lps (at 16-column printing)
    Emulation TMCOMUSB Serial Emulation
    OPOS Compatible No
    Character Set 95 Alphanumeric, 32 International,128 × 8 Graphic
    Graphics Printing Yes
    Data / Logo Storage 4K bytes (45 bytes) Data Buffer
    Operating Temperature 0°C to 50°C (32°F to 122°F)
    Print Head Life 150 million characters (using an average of 2 dots / wire per character)
    MCBF 49,000,000 Lines
    Character/Line 40 (character size 1.2 x 3.1 mm)
    Paper Dimensions 76 mm (3 in) width, 83 mm (3.27 in) maximum diameter
    Paper Thickness Normal Paper: 0.06 to 0.085 mm (0.0024 to 0.0033 in) - Pressure Sensitive Paper: 0.05 to 0.08 mm (0.0020 to 0.0031 in) - Single-ply Validation Paper: 0.09 to 0.12 mm (0.0035 to 0.0047 in) - See Users Manual page 47 for details on copy paper thickness
    Two Color Printing Capabilities Yes - black, black/purple
    Sensors Status LED lights - error LED, nearly out of paper LED, power LED, validation indicator
    Auto Cutter No
    Wall Mountable No
    Mac Compatible No
    In The Box Printer, power supply, ribbon cassette, paper roll, manual, spacers for the paper roll near end sensor, power switch cover (included ith the standard specification printer)
    Check Endorsing No
    Slip Printing Yes
    MICR Reader No
