Epson TM-m10

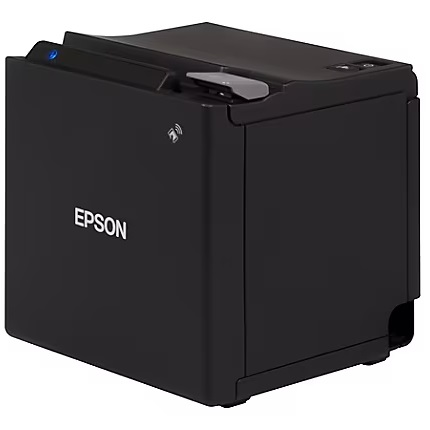

TM-m10 Product Image

The pictures shown are general images for product TM-m10 and may not be applicable to all part numbers

TM-m10 Receipt Printer


The industry’s smallest POS 2" receipt printer in its class, the TM-m10 thermal receipt printer saves valuable counter space, while offering the freedom to print receipts from virtually any mobile device and/or desktop PC. Ideal for cramped spaces, its modular casing can be easily switched from a top-load to front-load configuration. This versatile thermal printer offers smooth integration with existing mobile POS environments, intuitive functionality and advanced connectivity for effortless configuration. The TM-m10 is the first of its kind designed exclusively for small businesses. Featuring ePOS™ print technology, it works with iOS®, Android™ and Windows® mobile devices and desktop PCs, and offers a fast, easy setup.

Features

  • 2 Inch Print Width
  • 4"x4"x4" Size
  • Front or Top Load
  • Autocutter
  • Built-in USB Interface in All Models
  • 1 Year Warranty
Product Specifications
Colors Options Black
Epson White
Weight 1.98 lb/900g
Dimensions 4" x 4" x 4" 102 x 102 x 102 mm
Interfaces Available USB: Built-in USB
Ethernet: Built-in USB + Ethernet 10/100Base-T/TX
Bluetooth: Built-in USB + Bluetooth 3.0 (EDR supported)
Wi-Fi: Built-in USB + 802.11b/g/n (2.4GHz) + Ethernet 10/100Base-T/TX
Print Method Thermal
Print Speed 150 mm/s
Print Resolution 203 dpi
Character/Line Font A: 12 x 24 35cpl (default)
Font B: 10 x 24 42 cpl
Font C: 9 x 17 46 cpl
Character Size Font A: 1.25 x 3.00 mm
Font B: 1.13 x 3.00 mm
Font C: 0.88 x 2.13 mm
Character Set 95 Alphanumeric, 18 International, 128 x 43 Graphic
Mobile Compatibility iOS
Android
Windows
Barcodes Supported UPC-A, UPC-E, JAN8 / EAN 8, JAN13 / EAN13, Code39, Code93, Code128, ITF, CODABAR(NW-7), GS1-128, GS1 DataBar
Printer Languages ePOS-Print SDK, Windows Driver (APD), OPOS, OPOS.NET, JavaPOS (Win), JavaPOS (Linux), TM Virtual Port Driver, CUPS Driver (Linux), Mac Driver
Print Direction Vertical and horizontal
Paper Dimensions Width: 2.26"/57.5 mm
Roll (max): 2.36"/60 mm
Core: 0.71"/18 mm
Auto Cutter Yes
Auto Cutter Lifespan 1 million cuts
Print Head Life 15 million printing lines
Wall Mountable Yes, with Optional Mounting Brackets
Sensors Paper End
Cover Open
Software TM Utility (iOS, Android), TM-m10 Utility (Windows Desktop), EpsonNet Config (Win, Mac), TM Bluetooth Connector, Deployment Tool, Monitoring Tool
Warranty 1 Year Limited

Epson TM-m10 Reviews

POSGuys Rating:

March 2017 - This is the mini version of the Epson desktop receipt printer. It has the same connectivity options as it's bigger brothers (M30, TM-T88V) but on a smaller receipt format. For businesses that don't always print receipts and want to save some counter space or hide the receipt printer this little printer has one of the smallest footprints possible.

Customer Reviews

Frequestly Asked Questions

Product Video Transcript

TM-m10 Thermal Receipt Printer Review Video

Hi, Travis from POSGuys.com. Today we'll be reviewing the M series of printers from Epson. This is the TM-M30 and the TM-M10 receipt printers. They're both thermal receipt printers, they're similar form factor where they're very square. This is the 3-inch version, this is the 2-inch version. By 3-inch version, this means this uses standard receipt printer of 3 inch width, and this uses a 2 inch, smaller receipt paper. They're both top load or front load, this is set into front-load version, this is set in to top-load version. They print at a reasonable rate, this is an 8-inch per second, and this is a 6-inch per second. The 8-inch per second is the same as the current model TM-T20ii version, so it's the same print speed, it's just a much more compact form factor.

These printers aesthetically match up really well with a mobile type of set up. So if you're using an iPad, a Surface tablet, you have a small stand and you're using a very compact set-up with a very small cash drawer, then these are kind of designed to meet that look, and are very space-saving. The LED lights are also changed from like a traditional green to being a glowing blue, so much more modern looking receipt printers than you see traditionally. Interface-wise, these both have USB. They're also available with Bluetooth or Ethernet, and then NFC is also in an available connection, at least coming soon to them.

The M10 and M30 are very similar form factors, this is set to top load, this is set to front load. In the top load version, your cover opens up, your paper just drops in. The printer can also be converted to the front load version. In the front load, your paper drops in like so.

To adjust to front load and top load, you take the two covers off, and then you switch it. One of the sides has little rubber feet, so if you move that. And then you replace the second cover, now you're in a top load version.

Status lights on the printer are available in this bar at the top. When the cover is open, you'll get a warning, when it's out of paper you'll get a flashing warning telling you you're out of paper, so very handy, and then there's a little icon that kind of tells you what the different errors mean. The M30 prints at a nice 8 inches per second. The M10 prints at a slightly slower but still very good 6 inches per second.

So in the scheme of "would we buy these printers?" it comes down to would we buy these instead of other Epson printers? I would probably recommend the T20II the most out of all the printers, I think for the price and features and warranty, the T20II is your best bet. If you are worried about space though, take a look at the M series, especially the M10, it's very very small compared to older receipt printers. The styling on both of these are better than the T20II. If you're looking for just pure performance, pure reliability, pure speed, the T88V is still your best bet. So that's kind of the Epson overview of all their printers. Good printers, probably at this time not their best printers, but they are space saving options, and there are some unique pairing capabilities, so if you're on a tablet or something like that and you don't have a USB port, then take a look and see if a proper interface is available for you. To purchase these printers, or for more information, please visit us at POSGuys.com. Thanks!


Recommended Models

TM-M10 Receipt Printer, Black with USB Interface, Auto-Cutter, Energy Star Rated
Color:Black
Interface:USB
Autocutter:Yes
Compatibility:Square
TM-M10 Receipt Printer, Epson White with USB Interface, Auto-Cutter, Energy Star Rated
Color:White
Interface:USB
Autocutter:Yes
Compatibility:Square
TM-M10 Receipt Printer, Epson White with Bluetooth Interface, Auto-Cutter, Energy Star Rated
Color:White
Interface:Bluetooth
Autocutter:Yes
Compatibility:Square
TM-M10 Receipt Printer, Black with Bluetooth Interface, Auto-Cutter, Energy Star Rated
Color:Black
Interface:Bluetooth
Autocutter:Yes
Compatibility:Square

Additional Models

TM-M10 Receipt Printer, Epson White with USB & Ethernet Interface, Auto-Cutter, Energy Star Rated
Color:White
Interface:USB and Ethernet
Autocutter:Yes
Compatibility:Square
TM-M10 Receipt Printer, Black with USB & Ethernet Interface, Auto-Cutter, Energy Star Rated
Color:Black
Interface:USB and Ethernet
Autocutter:Yes
Compatibility:Square

Accessories

PS-180 Power Supply For Epson Receipt Printers (120/220V). Includes AC Cord (205498100). Energy Star Rated.
2.25" Wide x 50 ft. Thermal Receipt Paper. Case of 50 Rolls. BPA Free. Compatible with Most US Payment Terminals & 2" Receipt Printers.
USB Wireless Adapter Dongle (2.4GHz/5.0GHz), OT-WL06-321
Epson Three Year Extended Warranty Coverage for Epson TM-T TM-L & TM-m Receipt Printer. Adds 3 Additional Years of Coverage to a Printer's Standard Warranty. Two-Way Shipping Is Included By Epson.
Epson 3-Year Spare-in-the-Air Advanced Replacement Warranty For All TM-T TM-L TM-M and DM Series Receipt Printers. Includes Paid Two-Way Next Business Day Shipping of Replacement Unit.
