Epson TM-m30

The pictures shown are general images for product TM-m30 and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
TM-m30 Features
3 Inch
8 ips
Color Options

Epson Black, Epson Ultra White

TM-m30 Receipt Printer

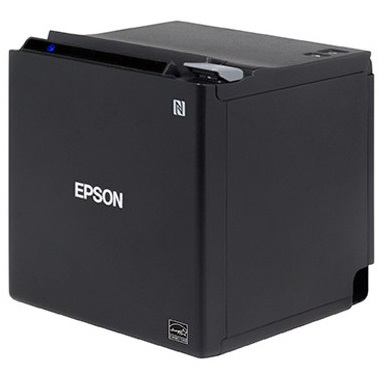

The Epson TM-m30 has reached end of life. It has been replaced by the Epson TM-M30II.

TM-m30 is Epson's 3 inch thermal receipt printer designed specifically for easy mPOS set up. Printing at 7.8" per second the m30 will be quick enough for medium to high end retailers and restaurants.

    Features
  • Ethernet, Bluetooth & Wi-Fi Models Available
  • Print from iOS, Android & Windows
  • Print Speed 200 mm/second
  • 3" Print Width
  • Auto Cutter

See all thermal receipt paper.

Product Specifications
Color Options Epson Black
Epson Ultra White
Weight 2.64 lb/1200g
Dimensions 5" x 5" x 5"
127 x 127 x 127 mm
Interfaces Available Ethernet: Built-in USB + Ethernet 10/100Base-T/TX
Bluetooth: Built-in USB + Bluetooth 3.0 (EDR supported) + Ethernet 10/100Base-T/TX
Wi-Fi: Built-in USB + 802.11b/g/n (2.4GHz) and 802.11a/n (5GHz) + Ethernet 10/100Base-T/TX
Print Method Thermal
Print Speed 200 mm/second
Print Resolution 203 dpi
Print Direction Vertical and horizontal
Character/Line Font A: 12 x 24 48 cpl (default)
Font B: 10 x 24 57 cpl
Font C: 9 x 17 64 cpl
Character Size Font A: 1.25 x 3.00 mm
Font B: 1.13 x 3.00 mm
Font C: 0.88 x 2.13 mm
Character Set 95 Alphanumeric, 18 International, 128 x 43 Graphic
Mobile Compatibility iOS
Android
Windows
Barcodes Supported UPC-A, UPC-E, JAN8 / EAN 8, JAN13 / EAN13, Code39, Code93, Code128, ITF, CODABAR(NW-7), GS1-128, GS1 DataBar
Printer Languages ePOS-Print SDK, Windows Driver (APD), OPOS, OPOS.NET, JavaPOS (Win), JavaPOS (Linux), TM Virtual Port Driver, CUPS Driver(Linux), Mac Driver
Paper Dimensions Width: 3.12"/79.5 mm
Roll Diameter(max): 3.27"/83 mm
Core Diameter(min): 0.71"/18 mm
Print Head Life 15 million printing lines
Auto Cutter Yes
Auto Cutter Lifespan 1.5 million cuts
Sensors Paper End, Cover Open
Software TM Utility (iOS, Android), TM-m30 Utility(Windows Desktop), EpsonNet Config(Win, Mac), TM Bluetooth Connector, Deployment Tool, Monitoring Tool
Warranty 1 Year

Epson TM-m30 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Frequestly Asked Questions

Product Video Transcript

TM-m30 Thermal Receipt Printer Review Video

Hi, Travis from POSGuys.com. Today we'll be reviewing the M series of printers from Epson. This is the TM-M30 and the TM-M10 receipt printers. They're both thermal receipt printers, they're similar form factor where they're very square. This is the 3-inch version, this is the 2-inch version. By 3-inch version, this means this uses standard receipt printer of 3 inch width, and this uses a 2 inch, smaller receipt paper. They're both top load or front load, this is set into front-load version, this is set in to top-load version. They print at a reasonable rate, this is an 8-inch per second, and this is a 6-inch per second. The 8-inch per second is the same as the current model TM-T20ii version, so it's the same print speed, it's just a much more compact form factor.

These printers aesthetically match up really well with a mobile type of set up. So if you're using an iPad, a Surface tablet, you have a small stand and you're using a very compact set-up with a very small cash drawer, then these are kind of designed to meet that look, and are very space-saving. The LED lights are also changed from like a traditional green to being a glowing blue, so much more modern looking receipt printers than you see traditionally. Interface-wise, these both have USB. They're also available with Bluetooth or Ethernet, and then NFC is also in an available connection, at least coming soon to them.

The M10 and M30 are very similar form factors, this is set to top load, this is set to front load. In the top load version, your cover opens up, your paper just drops in. The printer can also be converted to the front load version. In the front load, your paper drops in like so.

To adjust to front load and top load, you take the two covers off, and then you switch it. One of the sides has little rubber feet, so if you move that. And then you replace the second cover, now you're in a top load version.

Status lights on the printer are available in this bar at the top. When the cover is open, you'll get a warning, when it's out of paper you'll get a flashing warning telling you you're out of paper, so very handy, and then there's a little icon that kind of tells you what the different errors mean. The M30 prints at a nice 8 inches per second. The M10 prints at a slightly slower but still very good 6 inches per second.

So in the scheme of "would we buy these printers?" it comes down to would we buy these instead of other Epson printers? I would probably recommend the T20II the most out of all the printers, I think for the price and features and warranty, the T20II is your best bet. If you are worried about space though, take a look at the M series, especially the M10, it's very very small compared to older receipt printers. The styling on both of these are better than the T20II. If you're looking for just pure performance, pure reliability, pure speed, the T88V is still your best bet. So that's kind of the Epson overview of all their printers. Good printers, probably at this time not their best printers, but they are space saving options, and there are some unique pairing capabilities, so if you're on a tablet or something like that and you don't have a USB port, then take a look and see if a proper interface is available for you. To purchase these printers, or for more information, please visit us at POSGuys.com. Thanks!
