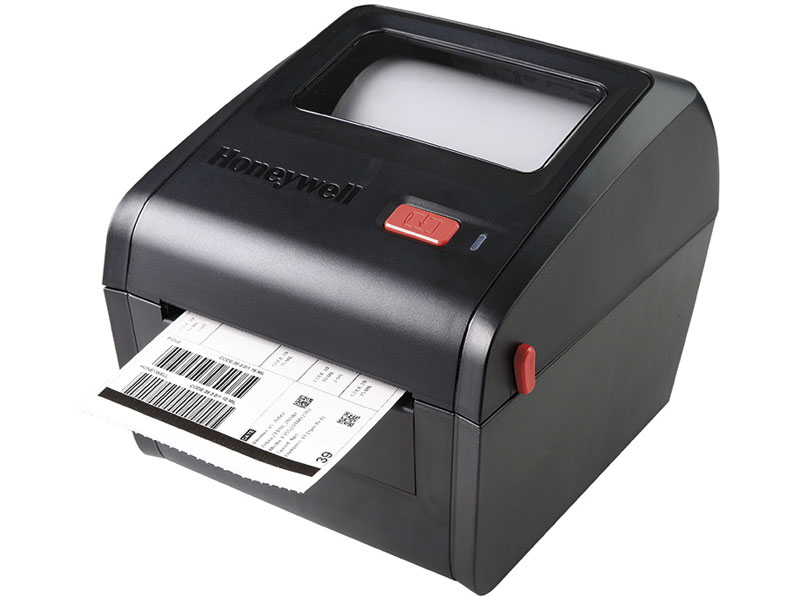

Honeywell PC42d

The pictures shown are general images for product PC42d and may not be applicable to all part numbers

PC42d Barcode Printers

The Honeywell PC42d has reached end of life.

Featuring a solid double-layer housing, easy paper-loading design and media auto-centering function, the compact and elegant PC42d printer is easy to operate. Powerful and reliable, the PC42d printer is well suited for a variety of low-to-mid intensity thermal printing applications – such as electronic express and logistics waybills, healthcare laboratory labels and wristbands, retail price tags and receipts, boarding passes and the like.

With 128 MB Flash and 64 MB SDRAM, which is several times larger than its competitors and supports up to a 32 GB USB expansion, the PC42d printer provides strong tag data pre-processing and caching capabilities. With an ARM926 core and 400 MHz high-speed processor, it can process high-volume tasks efficiently.

The PC42d printer delivers flexible industry-standard connectivity, with up to four built-in interface options: standard USB device and USB host, plus serial or Ethernet. With the rich interfaces, the PC42d printer easily integrates into virtually any application environment. The PC42d printer supports Zebra (ZPL-II and EPL) emulations, along with Direct Protocol (DP), providing an easy upgrade path for competitive printers.

With a high-quality print head, advanced thermal management algorithms and broad thermal media compatibility, the PC42d printer delivers excellent printing results in an affordable, dependable desktop printer.

The PC42d is a direct thermal printer only, the PC42t is available if you would like to use thermal transfer ribbon

The PC42d is compatible with Honeywell or Zebra Media, click here for single rolls

Product Specifications
Dimensions (L x W x D) 8.8 in x 7.3 in x 6.9 in
Weight 3.3 lb
Max. Media Diameter 5 in
Media Core Size 25.4 mm (1 in), 38.1 mm (1.5 in)
Media Width 25.4 mm – 110 mm (1 in – 4.33 in)
Label Length 9.6 mm – 99 cm (0.34 in – 39 in)
Printer Type Direct Thermal ONLY
Print Resolution 8 dpmm (203 dpi)
Max. Print Speed 4 ips
Max. Print Width 4.1 in
Operating Temperature 5°C to +40°C (+41°F to +104°F)
Standard Interfaces USB Device, USB Host
Built-in Options Ethernet (NIC), Serial
