Zebra ZT200

The pictures shown are general images for product ZT200 and may not be applicable to all part numbers

ZT200 Barcode Printers

The Zebra ZT200 has reached end of life. It has been replaced by the Zebra ZT231.

This product replaces the older Zebra S4M.

The Zebra ZT200 barcode printer series gives your business the power of an industrial printer in a unique and affordable design. Available in two distinct designs, there's a ZT200 printer best suited to meet your inventory management, shipping, or manufacturing labeling needs.

The ZT200 comes in two styles: the economical yet industrial ZT220, and the full industrial ZT230. Both feature a unique door design which folds as you open, minimizing the clear space needed around the printer when changing media. These industrial printers print crisp direct thermal or thermal transfer labels at up to 6" per second, ideal for high volume and high demand printing operations.

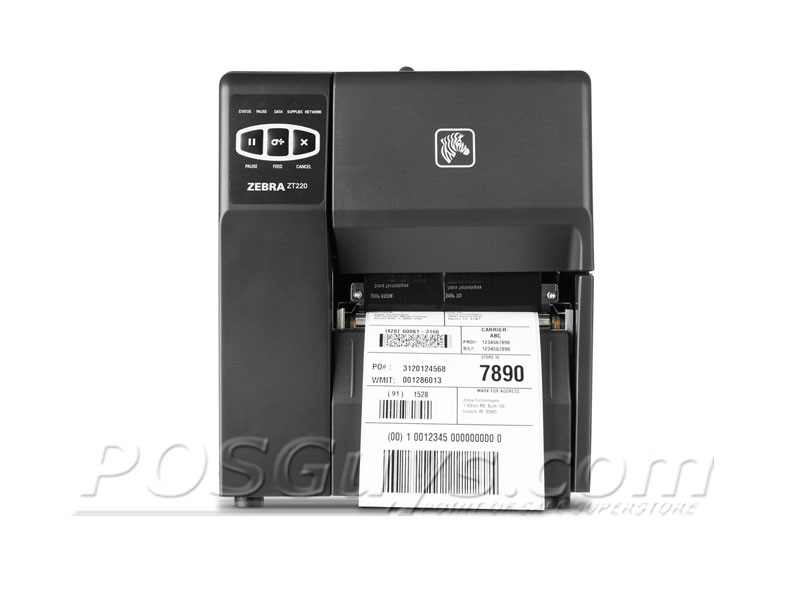

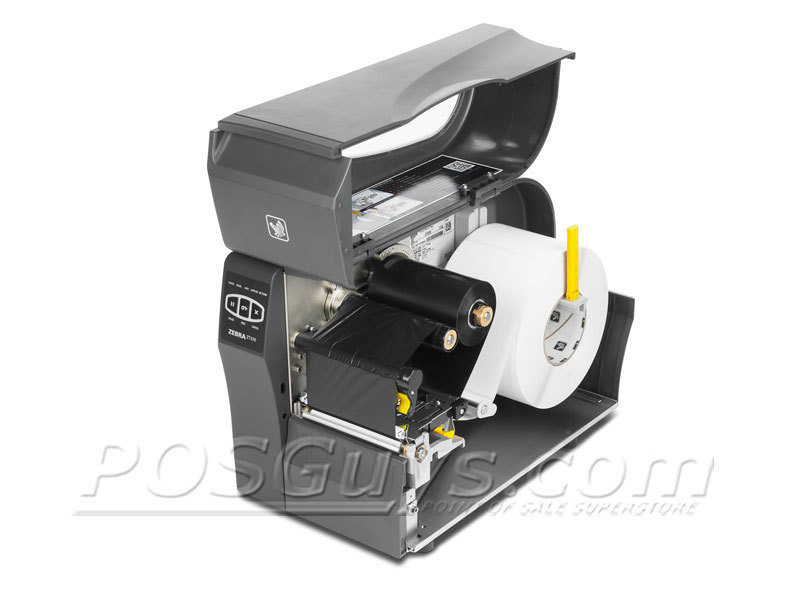

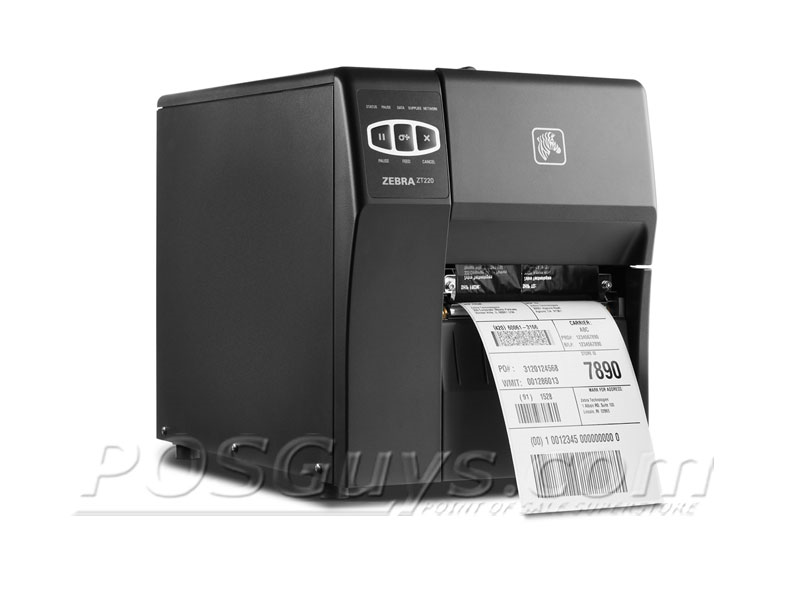

ZT220 - The ZT220 is the more affordable of the series, offering reliable high volume printing without as many features as higher end industrial printers. Built from a durable high-impact polymer case, the ZT220 will hold up to most use and is at home in single format printing operations, such as shipping or product labeling. 3 function buttons and multiple LEDs on the face provide control and diagnostic functionality if needed.

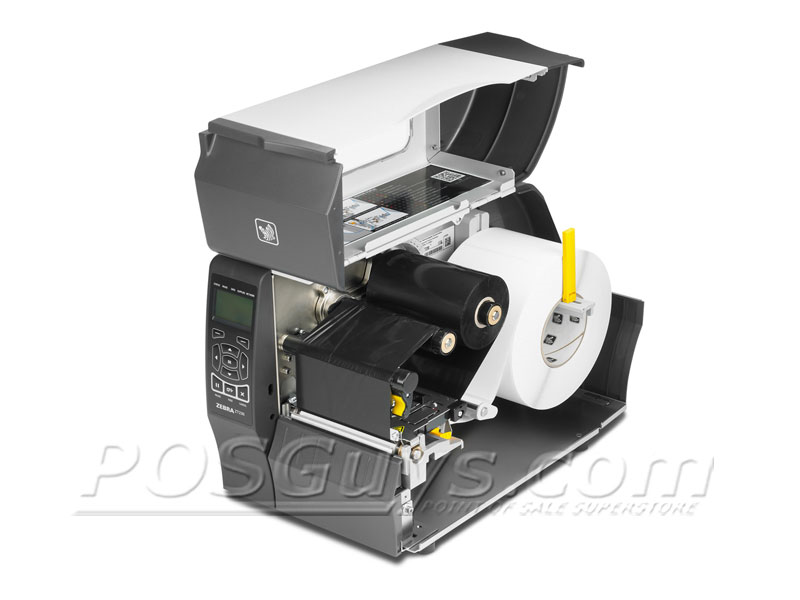

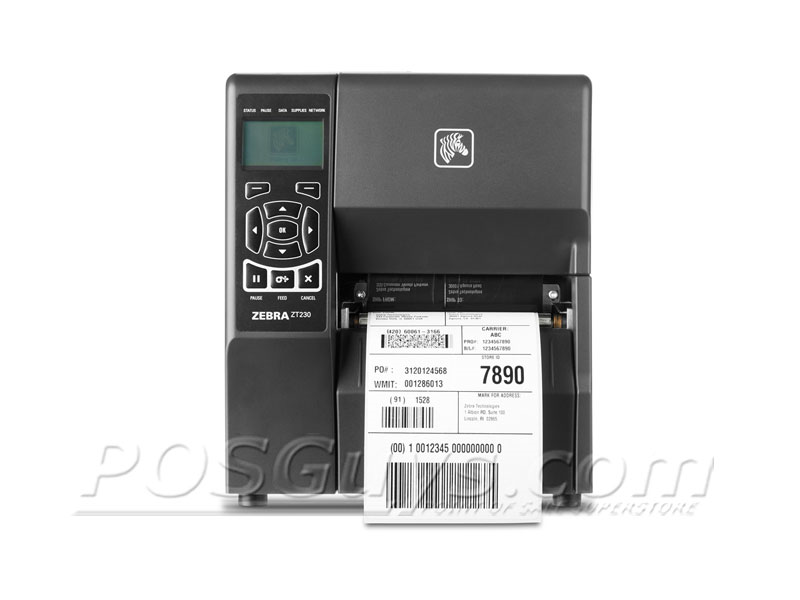

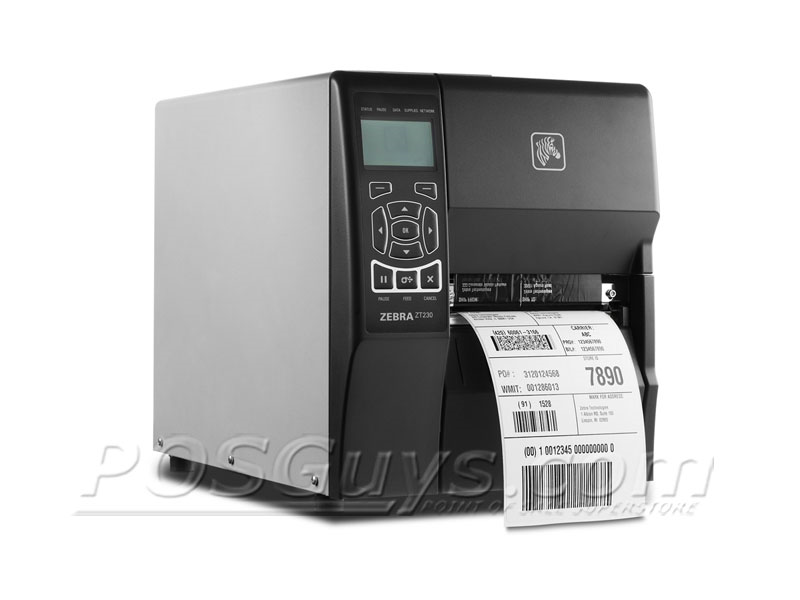

ZT230 - For high volume printing where multiple formats are needed, the ZT230 is a great fit. The all-metal case provides the durability to handle repeated interaction as well as heavy industrial use. An LCD display and keypad on the front allows you to perform more advanced configuration and maintenance on site, saving you time and money.

  • USB, Serial interfaces standard, optional Parallel, Ethernet, 802.11b/n WiFi interfaces
  • Available as direct thermal or combo direct thermal/thermal transfer printer
  • 6" per second print speed
  • 4.09" maximum print width
  • 1 year warranty
    Product Breakdown
  • ZT220: 300 m ribbon capacity, 3 button interface, high-impact polymer case
  • ZT230: 459 m ribbon capacity, LCD interface, all metal case
Product Specifications
Interface Centronics® RS-232 RS-422*, and RS-485* serial ports; IEEE 1284 bi-directional parallel
Roll Size (max), Core Size Max.Diameter: 6 in for PM45c long door models; 213 mm (8.38 in) for all other models of PM45/ PM45c
Print Method Direct thermal or thermal transfer
Print Speed 6" per second
Print Resolution 203 dpi or 300 dpi
Maximum Print Area Width: 4.09 in
Length: 157 in at 203 dpi - 73 in at 300 dpi
Paper Dimensions Width: 0.79 to 4.5 in
Roll Diameter: 8 in maximum
Paper Thickness 0.003" to 0.010"
Barcodes Supported Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar

2D Barcodes: CODABLOCK, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, Micro PDF417, RSS Code
Graphics Printing Supports user-defined fonts and graphics including custom logos, ZPL II drawing commands for boxes and lines
Memory 128 MB RAM, 128 MB Flash
Printer Language ZPL II, EPL2, ZBI 2 (optional), Zebra Global Printing Solution
Two Color Printing Capabilities No
Auto Cutter Optional - full width cutter with orderable catch tray
Peeler / Presenter Optional
LCD Display ZT230 Models
Weight ZT220: 17 lbs
ZT230: 20 lbs
Dimensions ZT220: 9.4" x 17" x 11"
ZT230: 9.5" x 17" x 10.9"
Operating Temperature 40° to 105° F

Zebra ZT200 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Frequestly Asked Questions

Product Video Transcript

Zebra Z-Slip Packing List Video

Hi, this is Travis from POSGuys.com. Today we're going to be taking a look at a new media product from Zebra. This is for doing packing lists and printing them on the outside of the box. So typically when you print a label, the words are on the outside, you slap it on the box. That's great for shipping and showing the address, but you don't necessarily want to show what's inside. So with this product, you'll only see the words "packing list enclosed." And then what you do is you peel this off and then you have your packing list on the inside.

The way that you attach this to the box is that when you print them out, there's a sticky boarder on the outside, you peel off the edges, you can see your packing list on it, and then you just attach it to the outside of the box. And then it's ready to ship like that. These are printed with a direct thermal Zebra printer.

Here I have this Zebra ZT230. This is their preferred barcode printer for using this media. It's in their mid-level of printer, it's not their super industrial, but it's much more industrial than a desktop printer. You can do the full 3-inch core media, and that's the only cored media that this label comes into. And then it just loads up like any standard label, wraps underneath the print head. If you're using thermal transfer ribbon, then that would load up here. You pull that through to use the ribbon. These are direct thermal labels so we don't need ribbon. Close it up, close the cover up, and it will calibrate and send out one label. Now it's ready to print.

On my screen I'm running Seagull Bartender demo, so this is a professional demo, and I have it linked to my store manager database. This is just a very basic set up, I'm just trying to simulate a packing list. Basically what I'm going to do is I'm going to print, it's going to prompt me for what do you want on the label and how many of them are there. So I'll go to print, my ZT230 is selected, and then I go to print. It tells me that I'm in demonstration mode and says what's the part number. I'll just put in a '1', this is my test item, and then how many, so I'll say 100. Print. And it sprit out my label, and I'm ready to attach it to the box. Again, just simply remove the edges, and now I can place this right on my box and my packing list is good to go.

So this is the new Zip Ship media from Zebra and the ZT230 industrial printer from Zebra, It's a great solution for anyone doing warehousing and printing a lot of boxes and that they don't want to open each box, they just want to put a packing list on the outside of the box, and ship as quickly and efficiently as possible. This is definitely a great solution to take a look at. To purchase the media or the printer, please visit us at POSGuys.com. Thanks!


Zebra OneCare, Essential, Purchased within 30 days of Printer, ZT200 Series, 5 Years, Comprehensive
Zebra OneCare, Essential, Purchased within 30 days of Printer, ZT200 Series, 3 Years, Comprehensive

Previously Available Models
