Zebra MC2100

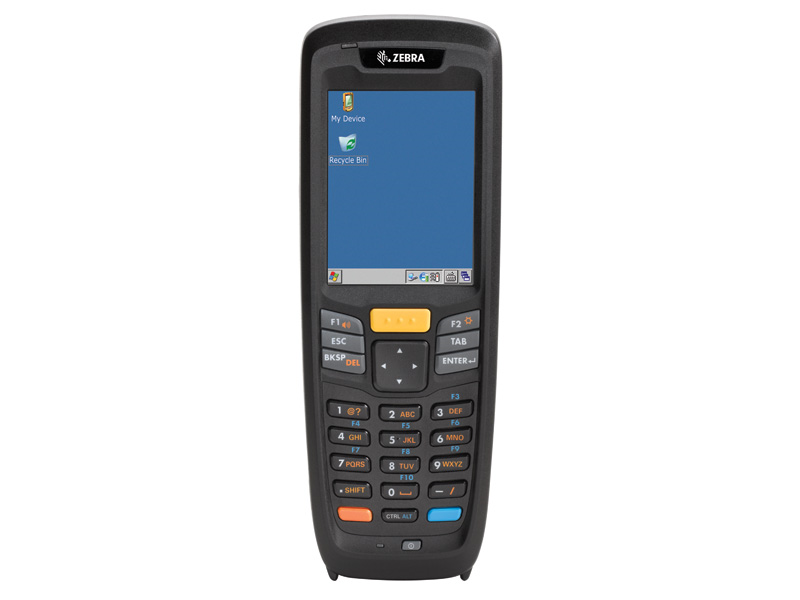

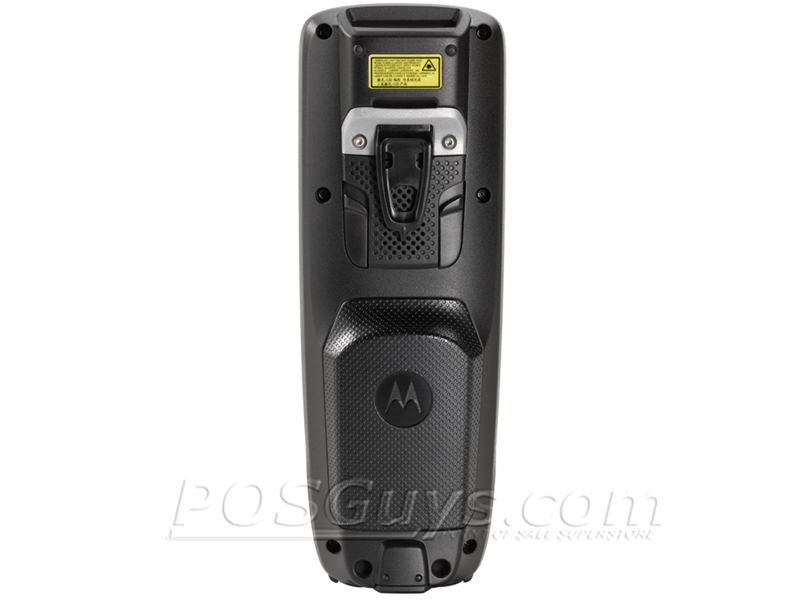

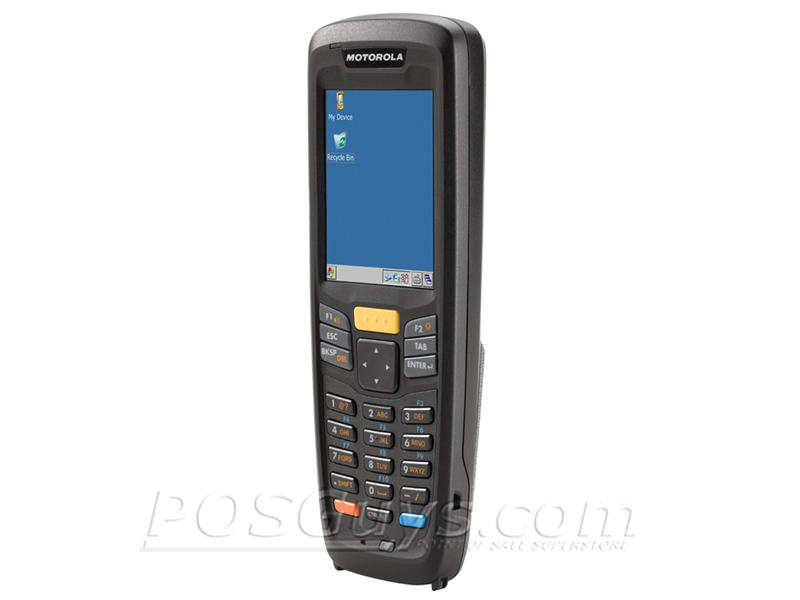

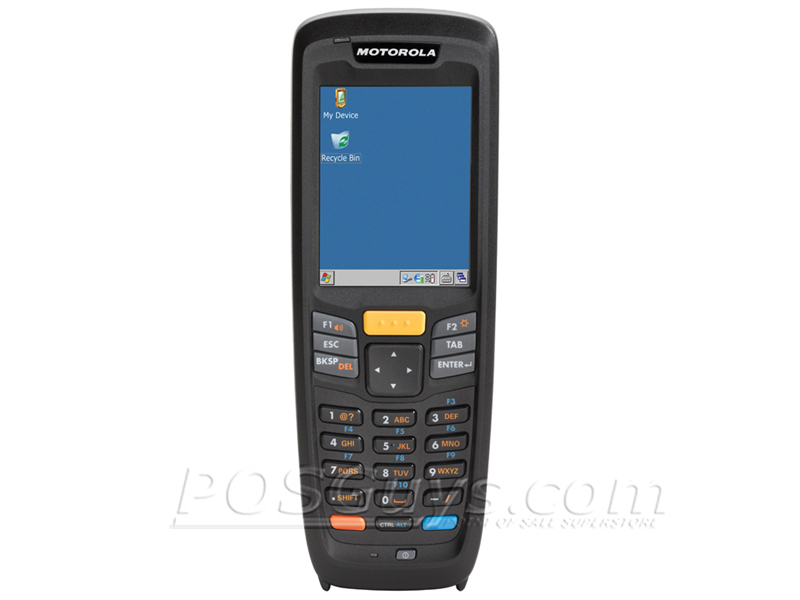

MC2100 Product Image

The pictures shown are general images for product MC2100 and may not be applicable to all part numbers

MC2100 Mobile Computers


The Zebra MC2100 has reached end of life. It has been replaced by the Zebra MC2200/MC2700.

This product replaces the older Motorola MC1000.

The Zebra MC2100 mobile computer offers great functionality at a fantastic price, ideal for smaller retailer or warehouse data management. Designed for use inside the four walls, the MC2100 is built with the features necessary for quick data management

The MC2100 comes in two unique designs: the batch scanner MC2100 and WiFi-enabled MC2180. Powered by a 634 MHz Processor and 128 MB of RAM, the MC2100 runs Windows Embedded CE 6.0, allowing you to run legacy data management apps with ease. 256 MB of Flash stores apps and databases as needed, and a MicroSD slot supports an additional 32 GB of storage.

Data capture is no sweat with the MC2100. With your choice of Laser Scanner, Linear Imager, or 2D Imager, barcodes of all types are read quickly and easily. For manual data entry, the familiar cell-phone style keypad layout ensures quick typing of content that can't be scanned. Other input devices, such as RFID readers or magnetic card readers, can connect to the MC2100 via serial cable or optional Bluetooth radio.

Built for retail and picking applications, the MC2100 has the tools needed to survive most day to day scanning operations. The lightweight scanner is rated to survive drops of 4 feet to concrete, ideal protection from accidental bumps off counters or out of pockets. An IP54 seal protects the scanner from some dust & water splashes, extending the life of the device greatly. Zebra offers a 1-year standard warranty, but additional Service from the Start Coverage plans can further protect your investment.



Features
• 624 MHz Marvell PXA320 Processor
• Windows Embedded CE 6.0
• Comes with Laser Scanner, Linear Imager, or 2D Imager
• Compatible with Zebra RhoElements, EMDK suite, Zebra Mobility Services Platform

Product Breakdown
• MC2100: Batch scanning device, no touchscreen overlay, with Linear Imager or Laser Scanner
• MC2180: 802.11b/g/n, BlueTooth radios, resistive touchscreen, with Linear Imager, Laser Scanner, or 2D Imager

Charging Note: The MC2100 does not ship with charging or communications cables. We recommend MC2100-COMM-KIT.

The Zebra MC2100 is previously known as the Motorola MC2100.

Product Specifications
Weight MC2100 with battery: 8.04 oz
MC2180 with battery: 8.32 oz
Dimensions 6.76" x 1.34" x 2.4"
Operating System Windows Embedded CE 6.0
Processor 624 MHz Marvell PXA320
Memory 128 MB RAM, 256 MB Flash
Screen 2.8" TFT LCD at 240 x 320 (QVGA)
Seal Specification IP54
Battery 3.7 V 2400 mAh Li-ion
Interface MC2100: USB
MC2180: USB, Bluetooth, 802.11b/g/n
Expansion MicroSD Slot
Operating Temperature 14° to 122° F
Storage Temperature -40° to 158° F
Humidity 5% to 95% non-condensing
Keyboard 27-key numeric
Scan Method 1D Laser Scanner
1D Linear Imager
2D Imager
Color Options Black

Zebra MC2100 Reviews

POSGuys Rating:

Customer Reviews

Accessories

MC2100 Charging/Communications Cradle, USB Interface, Requires Power Supply, Line Cord, and Interface Cable
MC2100 4-Slot Battery Charger, Requires Power Supply and Line Cord
MC2100 USB Active Sync Cable, Connects MC2100 Directly to PC, Requires Power Supply and Line Cord
MC2100 USB Cable, Connects Cradle to PC, A to Micro B
AC Line Cord or Zebra Power Supplies
MC2100 Communications Kit, Includes Cradle, Interface Cable, Power Supply, Line Cord (CRD2100-1000UR, PWRS-14000-249R, 50-16000-182R, 25-128458-01R)
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
3 Year Zebra One Care Select Advanced Exchange Comprehensive Coverage for MC2100
Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle)
7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
Power Supply, LEVEL VI AC/DC (Brick) AC Input: 100-240V, 0.6A DC Output: 5.4V, 3A, 16W Requires: DC Line Cord (CBL-DC-383A1-01) And Country Specific Un-Grounded AC Line Cord - Replaces PWRS-1400-249R
DC Line Cord For Use With Zebra Power Supply
Power Supply Kit For Zebra Presentation Cradle and Mobile Computers (Three Piece). Includes Power Supply (PWR-BGA12V50W0WW), Line Cord (23844-00-00R), and DC Line Cord (CBL-DC-375A1-01). For Presentation Cradle or Zebra Mobile Computers Only.
