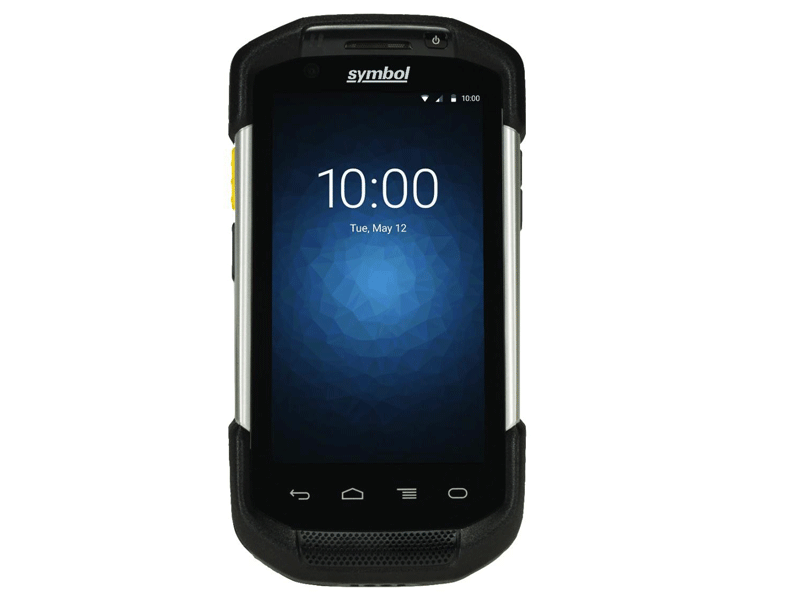

Zebra TC75

The pictures shown are general images for product TC75 and may not be applicable to all part numbers

TC75 Mobile Computers

The Zebra TC75 has reached end of life. It has been replaced by the Zebra TC72 / TC77.

The TC75 Series is the Android™ enterprise touch computer that delivers it all. A choice of Android OS, fortified for use in the enterprise. A rugged design that delivers reliable everyday operation. Anywhere anytime access to virtually any information in your back-end systems. The ability to capture more types of data faster than ever before. Instant push-to-talk communications with co-workers out in the field as well as supervisors, dispatch and more back in the office. 4G LTE support for a robust wireless connection on the world’s fastest cellular networks. And a full complement of accessories meets the unique needs of virtually any mobile worker. The TC75 Series — the easy way to empower your field teams with a true mobile office.

Charging Note: The TC75 does NOT come with any charging equipment. USB cables, charging docks, and power supplies must be purchased separately. See Accessories for all your charging needs.

  • Mobility Extensions(Mx) - Making Android a more robust enterprise OS
  • World-Class Data Capture
  • Maximum data entry flexibility with an industry leading dual mode touch panel
  • Automatically capture data and process entire documents
  • Superior audio quality and functionality for a new level of voice flexibility
  • Mobility DNA
For a WiFi ONLY version of the TC75 please see the Zebra TC70
Product Specifications
Dimensions (W x D x H) 6.3 in. L x 3.3 in. W x 1.1 in. D/ 161 mm L x 84 mm W x 28 mm D
Weight 13.3 oz./376 g
CPU 1.7 GHz dual core processor (TC75) 1.8 GHz hex core processor (TC75x)
Tumble Specification 2,000 3.2 ft./1.0 m tumbles; meets and exceeds IEC tumble specifications
Drop Specification 8 ft./2.4 m to concrete at room temp.; 6 ft./1.8 m over the operating temp. range
Sealing IP65 and IP67 per applicable IEC sealing specifications
Display 4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
Expansion Slot TC75: User accessible MicroSD up to 32GB SDHC and up to 64 GB SDXC TC75x: User accessible MicroSD up to 32GB SDHC and up to 128 GB SDXC
SIM TC75: 2 Nano SIM slot (4FF); 1 Mini SIM/SAM slot (2FF) TC75x: 2 Nano SIM slot (4FF); 1 Mini SIM (2FF)
Network Connections USB 2.0 High Speed (host and client); WLAN
Voice and Audio Three microphone support with noise cancellation; vibrate alert; speaker; Bluetooth wireless headset support, High quality speaker phone; PTT headset support; Cellular circuit switch voice; HD Voice
Motion Sensor eCompass, 3-axis Gyro, 3-axis accelerometer
Scanning SE4750 imager (1D and 2D); extraordinary range: Scan range – Code 39 barcode: 20 Mil: 1.6 in to 36.3 in/4.1 cm to 92.2cm 3 Mil: 2.8 in to 6.2 in/7.1 cm to 15.9 cm
Camera Rear – 8 MP autofocus; f/2.4 aperture (TC75) Rear – 13MP autofocus (TC75x) Front – 1.3 MP fixed focus (TC75/TC75x)
WARRANTY Subject to the terms of Zebra’s hardware warranty statement, the TC75 Series is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: http://www.zebra.com/warranty

Zebra TC75 Reviews

POSGuys Rating:

The TC75 is quickly becoming the most common mobile computer used by transportation, field mobility, and external point of sale industries. The mobile computer is extremely well built, it has the toughness that older MC computers had but in a modern form factor with a gorilla glass touch screen that works just like a smart-phone. The learning curve for the device is very small as anyone who has used the Android OS before will feel right at home with this mobile computer. The built in barcode scanner is the best scanner available on a mobile computer to date, it scans very fast, accurately, and can be configured to send data however you need.

Zebra also supplies several mobility applications at no charge to enhance the security and productivity of the TC75. If you are converting an older terminal services application over to a modern UI zebra also provides a lightweight app to help assist with that process.

Customer Reviews

Frequestly Asked Questions


TC70x/TC75x Replacement Battery 4620mAh PP+ 1 PACK (Batteries must be shipped via ground shipping) - Replaces BTRY-TC7X-46MA2-01
TC70/75 ShareCradle, Charging Only, Charges 1 TC70/75 and 1 Spare Battery, Requires Kit ZPWR-12VDC-KIT AND 23844-00-00R - Replaces CRD-TC7X-SE2CU1-01
TC70/75 ShareCradle, Charging Only, Charges 1 TC70/75 and 1 Spare Battery, 2-SLOT CHARGE/USB/ETHERNET, Requires PWR-BGA12V50W0WW, CBL-DC-388A1-01, AND 23844-00-00R - Replaces CRD-TC7X-SE2CU1-01
TC7X 4-Slot Battery Charger Share Cradle Power Precision Plus, Requires Power Supply and DC Line cord kit ZPWR-12VDC-KIT - Replaces SAC-TC7X-4BTYC1-01

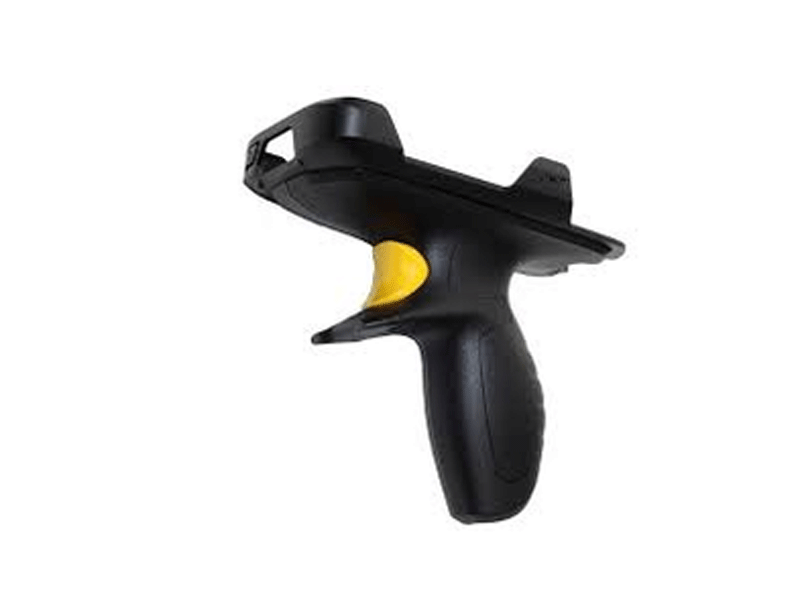

TC70 / TC75 - Snap-On Trigger Handle - Easily attaches to bottom housing and easily removed to access battery.
