The pictures shown are general images for product ION Fit and may not be applicable to all part numbers

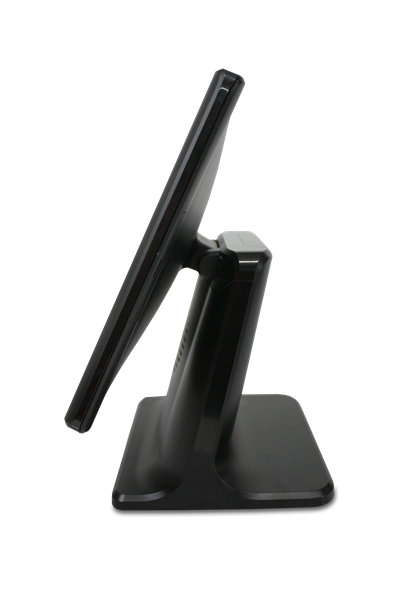

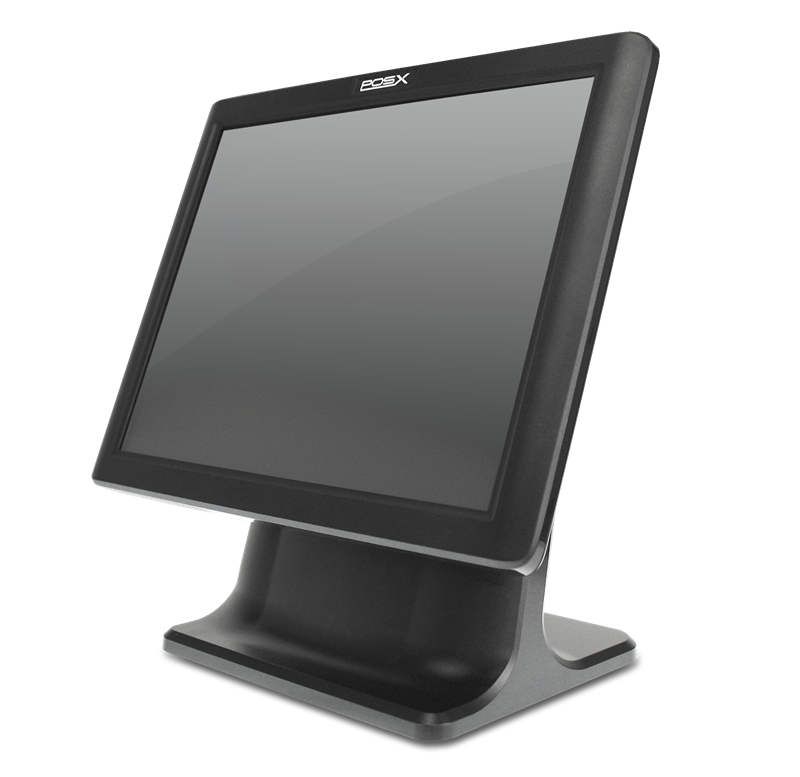

ION Fit POS Touch Screen Monitor

The POS-X ION Fit has reached end of life. It has been replaced by the POS-X TM6 .

This product replaces the older POS-X ION TM2A.

The POS-X ION Fit touchscreen monitor has the features needed to handle even the most demanding applications. A sleek and sturdy design, the ION Fit is a great choice for restaurant, retailers, informational kiosks, and more.

A 15 inch monitor, the ION Fit is large enough to display most point of sale software with ease. The ION Fit uses five-wire resistive touch technology, giving you the robust precision necessary for aggressive use. Optional accessories, including a 3-track MSR, various customer displays, and a biometric reader provide additional functionality while saving space at your POS station.

POS-X built the ION Fit to handle high stress and high stakes environments, holding up to aggressive use and abuse. The sturdy base holds steady under excessive use, and the touchscreen is rated at 50 million touches per location. With a 3 year warranty including 2-day advance exchange service standard, the POS-X ION Fit is a smart option for long-lasting use.

  • 15" touchscreen
  • 5-wire resistive touch technology
  • USB interface
  • Optional credit card reader, biometric reader, customer displays
  • 3 year warranty with 2-day advance exchange service

También puede ver esta lista en Español. Visite EquiposTPV.com para comprar el POS-X ION FIT monitor de computadora táctil.

Product Specifications
Display Type 15″ LED
Touch Technology 5 Wire Resistive
Style POS Desktop Monitor
Bezel Standard
Interface 1x USB 2.0 (Type B to PC)
Optimal Resolution 1024 x 768 pixels
Brightness 250 nit
Colors 16.7 Million Colors
Dimensions 14.2″ x 9.8″ x 13.3″
Weight 14.3 lbs (6.5kg)
Housing ABS Housing
Viewing Angle 160°
Tilting Angle 40°-90°
Seal Specification IP54
Power Drawn 36W, 12V, 3A
Operating Temperature 41°F to 95°F (5°C to 35°C)
Power Supply AC Adapter
Warranty 3 Year
