Star Micronics TSP100IV

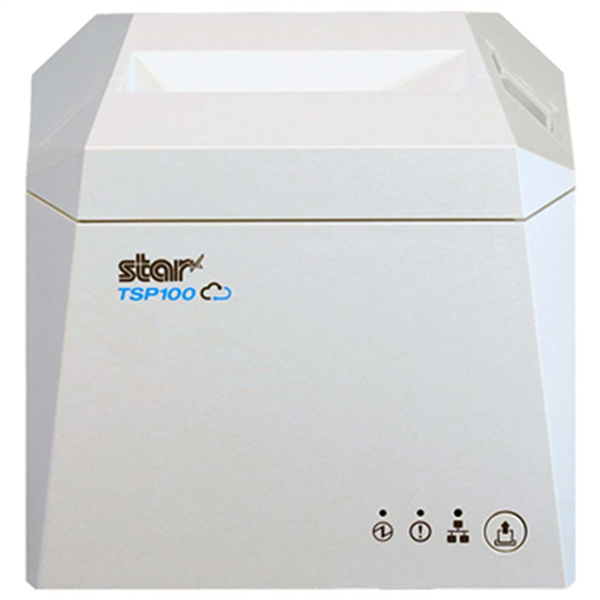

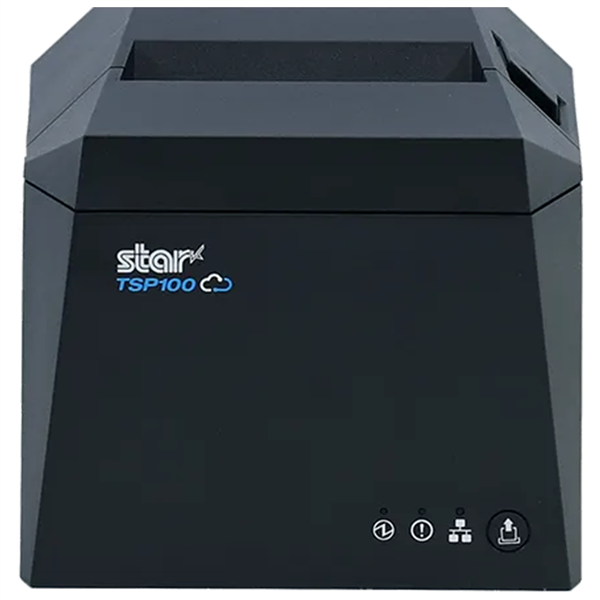

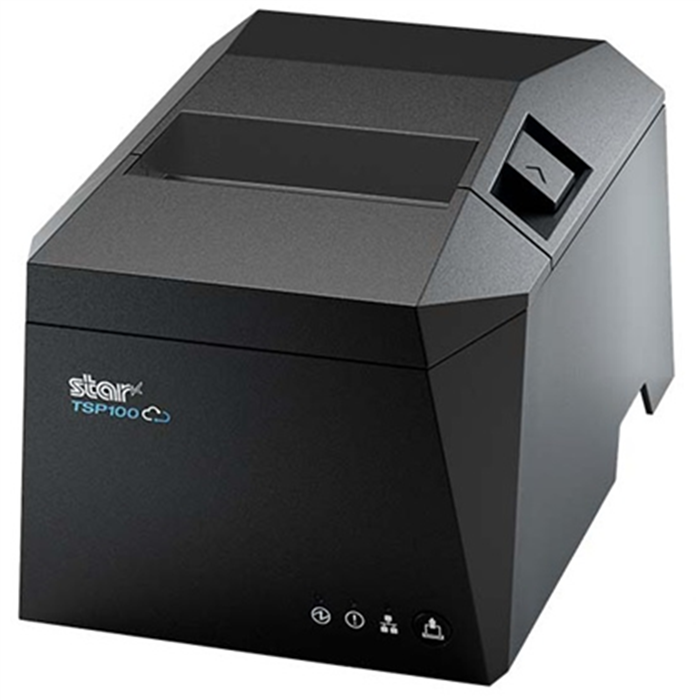

The pictures shown are general images for product TSP100IV and may not be applicable to all part numbers

Buy it now
Manufacturer Support
TSP100IV Features
3 Inch
10 ips
CloudPRNT

TSP100IV Receipt Printer


The new TSP100IV brings a unique new design for a truly revolutionary product. The quality and reliability of the popular TSP100 series has been fused with enhanced connectivity and specialist printing features for the very latest in point of sale and omni-channel commerce. For ever-changing retail and hospitality environments, the TSP100IV has every angle covered!

Smaller, Sharper, Better Connected

Super compact at 20% smaller than TSP100III models with an internal power supply the TSP100IV saves valuable counter space and can operate horizontally or vertically. Integral wall mounting is included.

Developed for Tablet and Cloud POS

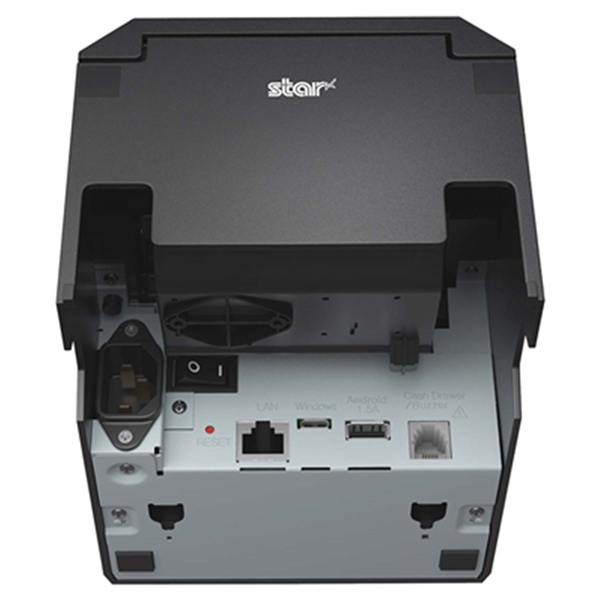

The TSP100IV features enhanced connectivity with Ethernet LAN and USB-C ports for Windows, Linux and MacOS devices as well as USB-A for connecting Android tablets and mobile devices. With Android Open Accessory (AOA) support, compatible Android tablets and mobile devices or accessories such as scanner or display can communicate and charge directly via USB. Wireless LAN connectivity is also available with Star’s optional MCW10 Wireless LAN adapter.

Star’s CloudPRNT technology is also integrated for printing directly from web based applications, ideal for retail Click & Collect orders or restaurant orders direct to the kitchen without the need for a local tablet or POS system. Star Micronics Cloud Services is also included offering device monitoring and many other services.

Plug & Play

The Star TSP100IV has exceptionally easy “plug and play” installation with Star’s new intuitive Quick Set-up Utility, making it simple to incorporate into existing point of sale systems. It’s also compatible with previous TSP100 models.

Required Set-up accessories are included at purchase including Power cable, interface cables and 58mm paper guide as well Star’s 4 year warranty as standard.

Product Specifications
Max. Print Speed 250mm/sec.
RESOLUTION: 203dpi
Auto Cutter Partial (Guillotine) Autocutter
Paper Width 80mm (58mm Using Paper Guide)
Paper Thickness 0.049mm – 0.085mm
Maximum Print Width 72mm (80mm Paper) 50.8mm (58mm Paper)
Connectivity Ethernet LAN, USB-C, USB-A with AOA Android Data & Charge, Star CloudPRNT, Wireless LAN with MCW10 option (contact Star for regions).
Sensors Paper End, Cover Open
Printer Reliability 60 Million Lines MCBF, Autocutter 2 Million Cuts
What's In the Box Power Cable, USB Cable (USB-C to USB-A), Ethernet LAN cable, 58mm Paper Guide
Dimensions (W x D x H) W140 x D169 x H123mm
Weight 1.3kg

Star Micronics TSP100IV Reviews

POSGuys Rating: Not Rated

Customer Reviews

Frequestly Asked Questions

Recommended Models

TSP100IV, Thermal, Cutter, USB-C, Ethernet (LAN), CloudPRNT. White, Ethernet and USB Cables Included, Internal PS.
Color:White
Interface:Ethernet - USB
TSP100IV, Thermal, Cutter, USB-C, Ethernet (LAN), CloudPRNT, Gray, Ethernet and USB Cables Included. Internal PS.
Color:Gray
Interface:Ethernet - USB
TSP100IV, Thermal, Cutter, WLAN, USB-C, Ethernet (LAN), CloudPRNT, White, Ethernet and USB Cable, Int PS
Note: To connect the printer to your WiFi network, the name must have no spaces.
Color:White
Interface:Wifi - Ethernet - USB
TSP100IV, Thermal, Cutter, WLAN, USB-C, Ethernet (LAN), CloudPRNT, Gray, Ethernet and USB Cable, Int PS
Note: To connect the printer to your WiFi network, the name must have no spaces.
Color:Gray
Interface:Wifi - Ethernet - USB

Accessories

Promo Pack - Thermal Receipt Paper (10 Pack of Rolls) - 3.125" Wide x 220 ft., BPA FREE (Also known as 1213) **Promo Price for First Promo Pack only! (Ground Shipping Only, expedited shipping unavailable on promo pack)
Thermal 3 YR Swap-A-Star
Ticket Alarm For Star Printers (Connects directly the the RJ11 port on the back of the printer and sounds when a print job is sent to the TSP100)
Star Micronics Printer Customer Display, USB, Black, LCD 2x20 Characters, mPOP & TSP100IV Compatible

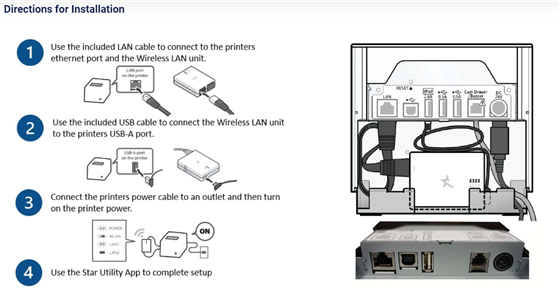

Star Micronics, MCW10, Wireless LAN Module compatible with mC-Print21W, mC-Print31W, TSP143IV. Note: To connect the printer to your WiFi network, the Network Name must have no spaces. See FAQ on Printer Product Page on how to use.
MC-Sounder, Programmable Buzzer and Visual Alarm for mC-Print
Thermal 3 YR Extend-A-Star
Star Receipt Paper, 80mm Width, 230ft Length. 25 Rolls per Case. Blue Core Media.

Previously Available Accessories
