mC-Print3 Receipt Printer
The mC-Print3 series from Star Micronics’ is a compact 3-inch receipt printer designed for modern retail and hospitality environments. It features an IP-rated splash-proof design, front-load paper loading, and multiple connectivity options, including USB, Lightning, Bluetooth, WLAN, LAN, and CloudPRNT/WebPRNT with SteadyLAN® technology. The newest models (Ci, CBi, WCi, & WCBi) introduce CloudPRNT Next with faster, more reliable cloud-based printing, and Ultra-C connectivity, offering 20W USB-C power and data transfer for seamless connections with iOS, Android, and Windows devices.
Highlighted Features
- Lightning-fast printing speed of 400mm/sec
- Peripheral Hub: Allows users to connect USB hubs to pair with multiple peripherals (MCP31 models only). This functionality enables the printers to support various devices, such as barcode scanners, scales, and customer displays, through additional USB ports. Ultra-C technology allows USB-C communication and 20W power to Windows, Android and iOS device.
- External USB hub support for connecting peripherals
- IP22 splash-proof, insect-proof, and dust-proof design (on 2nd Generation Models)
- Flat Print - No receipt curling
Whats in the box
1st Generation (MCP30 Models)
Printer, AC Adapter, Power Cable, USB Cable, Paper Roll Guide, Safety Instructions, Easy Setup Guide, Flyer
2nd Generation (MCP31 Models)
Printer, AC Adapter, Power Cable, Safety Instructions, Easy Setup Guide
Product Specifications | |
---|---|
Dimensions (WxHxD) | 5.2" x 5.5" x 4.9" |
Print Speed | 1st Generation (MCP30 Models) 9.8 inches/sec 2nd Generation (MCP31 Models) 15.7 inches/sec |
Sensor | 1st Generation (MCP30 Models) Paper Out/Low Sensor Cover-Open Sensor Paper End Sensor 2nd Generation (MCP31 Models) Paper Out/Low Sensor Cover-Open Sensor Paper End Sensor Near-End Sensor Cash Drawer Detector |
Emulation | StarPRNT |
Models Available | 1st Generation (MCP30 Models) USB, Lightning, Ethernet (LAN), CloudPRNT, Bluetooth* (*mCP31LB & mCP31WBi only) 2nd Generation (MCP31 Models) Ultra-C USB-C for iOS, Android, & Windows, Ethernet (LAN), WLAN, CloudPRNT Next, Bluetooth* (*mCP31CBi & mCP31WCBi only) |
Print Resolution | 203 dpi (8 dots per mm) |
Paper Specifications | 1st Generation (MCP30 Models) Width: 80mm standard, 58mm with paper guide Thickness: 0.053 ~ 0.075 mm Roll Diameter: Up to 83 mm 2nd Generation (MCP31 Models) Width: 80mm standard, 58mm with paper guide Thickness: 0.049 ~ 0.075 mm Roll Diameter: Up to 83 mm |
Power Supply | 1st Generation (MCP30 Models) External: PS60A-24C 2nd Generation (MCP31 Models) External: PS65AT-24A |

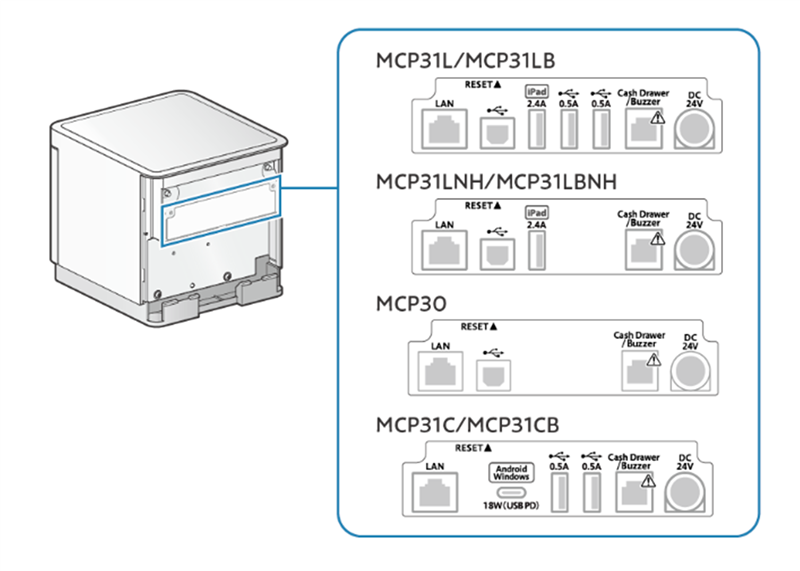

Connectivity | 1st Generation (MCP30 Models) mCP30: Ethernet (LAN), USB-B, CloudPRNT 2nd Generation (MCP31 Models) mCP31Ci: USB-C (Ultra-C) 20W Power + Data to iOS, Android (AOA) & Windows, USB-A, Ethernet (LAN), CloudPRNT Next (MQTT) mCP31CBi: USB-C (Ultra-C) 20W Power + Data to iOS, Android (AOA) & Windows, USB-A, Ethernet (LAN), CloudPRNT Next (MQTT), Bluetooth mCP31WCi: USB-C (Ultra-C) 20W Power + Data to iOS, Android (AOA) & Windows, Ethernet (LAN), CloudPRNT Next (MQTT), WLAN (MCW10) mCP31WCBi: USB-C (Ultra-C) 20W Power + Data to iOS, Android (AOA) & Windows, Ethernet (LAN), CloudPRNT Next (MQTT), WLAN (MCW10), Bluetooth |
IP Rating | 1st Generation (MCP30 Models) IPX2 2nd Generation (MCP31 Models) IP22 |
What’s in the Box | 1st Generation (MCP30 Models) Printer, AC Adapter, Power Cable, USB Cable, Paper Roll Guide, Safety Instructions, Easy Setup Guide, Flyer 2nd Generation (MCP31 Models) Printer, AC Adapter, Power Cable, Safety Instructions, Easy Setup Guide |
Accessories | 1st Generation (MCP30 Models) mC-Sound, Kitchen Buzzer, Cash Drawer, Wall Bracket 2nd Generation (MCP31 Models) Paper Guide, USB-A to USB-C cable, Wall Bracket, 1D Barcode Scanner, mC-Sound, Kitchen Buzzer, Wireless LAN Unit (MCW10) |
Operating Conditions | Temperature: 5oC to 45oC Humidity: 10% – 90% RH (without condensation) |
Storage Conditions | Temperature: -20oC to 60oC Humidity: 10% – 90% RH |
