Zebra ZD620

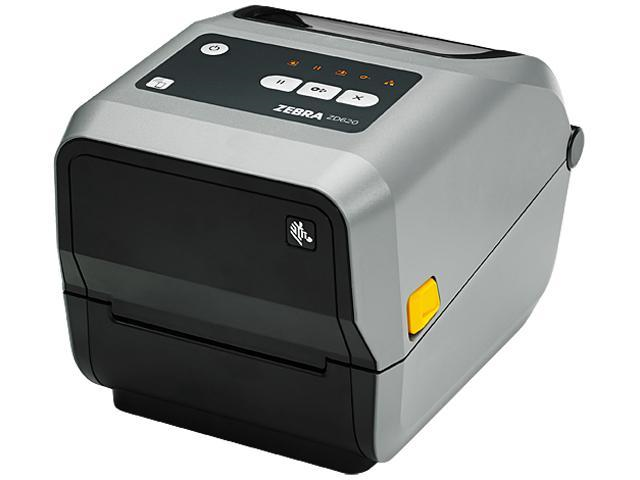

The pictures shown are general images for product ZD620 and may not be applicable to all part numbers

ZD620 Barcode Printers


The Zebra ZD620 has reached end of life. It has been replaced by the Zebra ZD621.

When print quality, productivity, application flexibility and management simplicity matter, the Zebra ZD620 delivers. As the next generation in Zebra’s desktop printer line, the ZD620 replaces Zebra’s popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in both direct thermal and thermal transfer models, the ZD620 meets a wide variety of application requirements. It offers the most standard features of any Zebra desktop printer, including an optional 10-button user interface with a color LCD that takes all the guesswork out of printer setup and status. The ZD620 runs Link-OS and is supported by our powerful Print DNA suite of applications, utilities and developer tools that deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The Zebra ZD620 — delivering the powerful print speed, print quality and printer manageability you need to keep your operations moving forward.

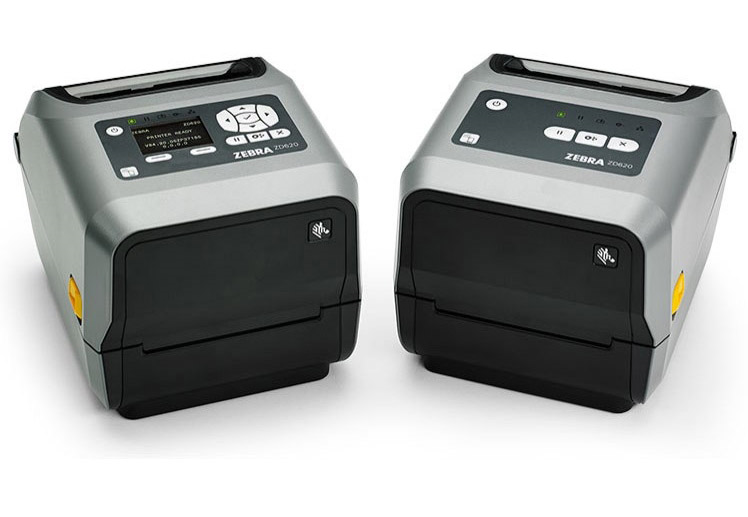

  • ZD620 - Icon Display
  • ZD621 - LCD Display

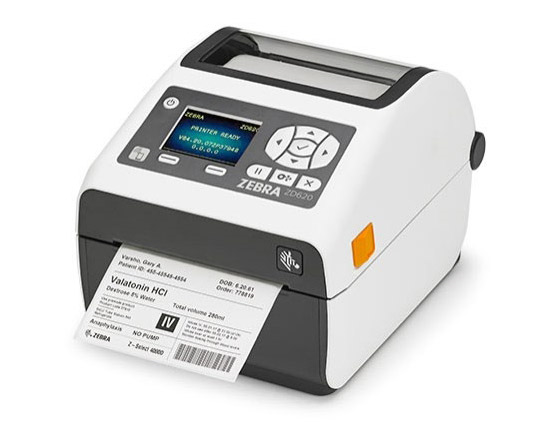

  • ZD62H - Health Care Standard
  • ZD62L - Health Care Locking

Click here for compatible labels for the ZD620 Printers

Click here for compatible ribbon for the ZD620 Printers

Product Specifications
Dimensions (L x W x H)
  • ZD620d: 8.7 in./221 mm x 7.0 in./177 mm x 5.9 in./151 mm
  • ZD620t: 10.5 in./ 267 mm x 8.0 in./ 202 mm x 7.5 in./ 192 mm
  • Weight
  • ZD620d: 3.6 lb/ 1.6 kg
  • ZD620t: 5.5 lb/2.5 kg
  • Resolution 203 dpi Standard, 300 dpi Optional
    Memory 512 MB Flash; 256 MB SDRAM
    Max Print Width 4.09 in./104 mm for 203 dpi; 4.27 in./108 mm for 300 dpi
    Max Print Speed 8 in./203 mm per second (203 dpi); 6 in./152 mm per second (300 dpi)
    Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor
    Max Label Length 39.0 in./991 mm
    Media Width 0.585 in./15 mm to 4.65 in./118 mm
    Max Roll Size Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters
    Max Media Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. (tear-off mode only)
    Ribbon 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) OD
    Ribbon Length (max) 984 ft. (300 m); 244 ft. (74 m)
    Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands, linerless media* * For use only with linerless printer model
    Max Ribbon Width 1.33 in./33.8 mm ― 4.3 in./109.2 mm
    Ribbon Core
  • 300 meter ribbon 1 in./25.4 mm ID
  • 74 meter ribbon 0.5 in./12.7 mm ID
  • Operating Temperature 40° to 105° F/4.4° to 41° C
    Operating Humidity 10% to 90% non-condensing
    User Interfaces
  • Standard 5 Status Icon/3-Button Interface
  • Optional Color LCD (320 x 240 resolution) with 5 status icons, 10 button user interface
  • Standard Interfaces USB 2.0, USB Host, Serial, Ethernet, BTLE
    Optional Communications Factory installed wireless radio: 802.11ac Wi-Fi and Bluetooth 4.1
    In The Box Printer, empty ribbon take-up cores (1 in. and 0.5 in.)*, 300 m ribbon core adapters for non-Zebra ribbon (2)*, AC power supply, power cord(s), USB cable, Quick Start Guide, Regulatory Guide
    Warranty 1-Year Factory Warranty

    Zebra ZD620 Reviews

    POSGuys Rating:

    This is the new flagship desktop printer for Zebra. It uses traditional style ribbon on the thermal transfer models and makes a LCD screen available for easier configuration of settings or configuring the WiFi connection. The 300 DPI model adds in high density printing for people needing finer details in their logos/graphics or want to print extra dense or small barcodes. The optical eye is also moveable for configuring the printer to use custom media that may have notches or black marks instead of the traditional gap.

    The standard print speed on the 203 dpi model is 8 inches per second which is faster than many industrial printers. Printing speed will vary depending on the quality of media being used.
