Elo TouchSystems 1504LS 15inch
The pictures shown are general images for product 1504LS 15inch and may not be applicable to all part numbers

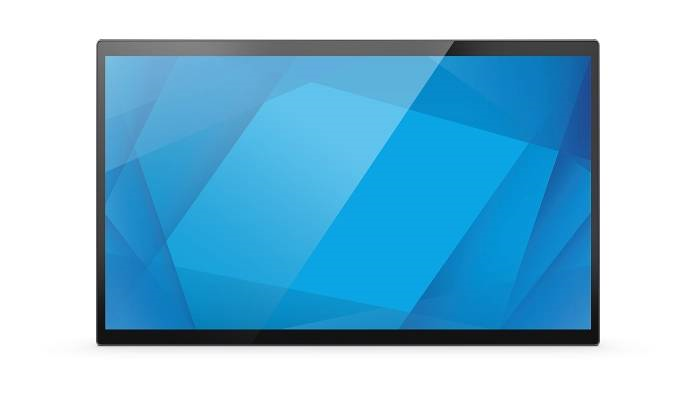

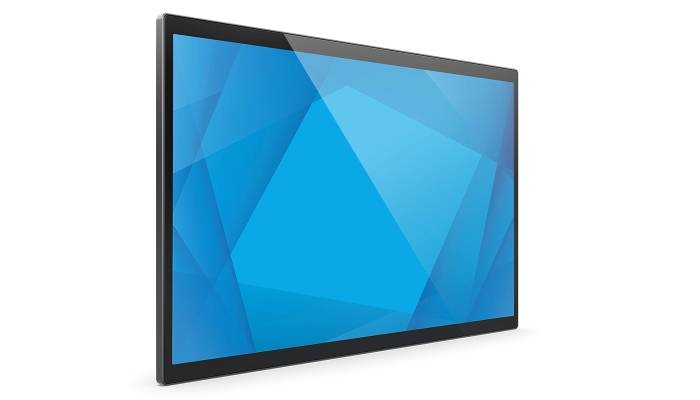

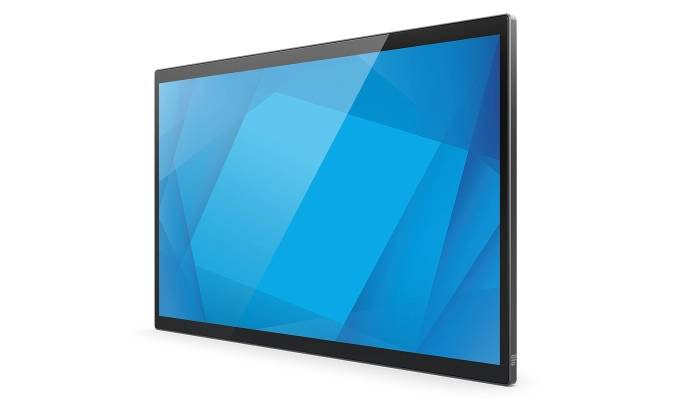

1504LS 15inch POS Touch Screen Monitor

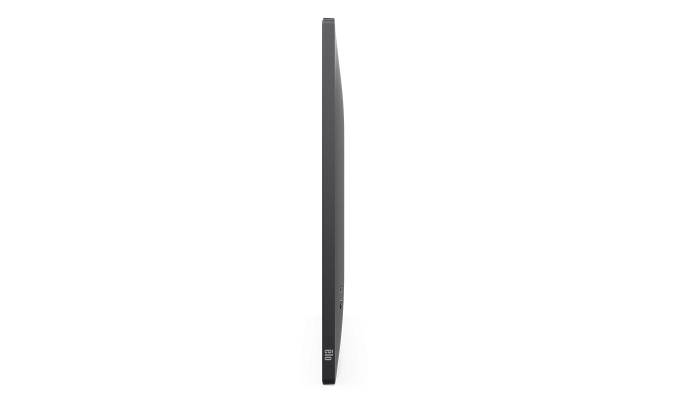

Razor thin design. Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 15-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.

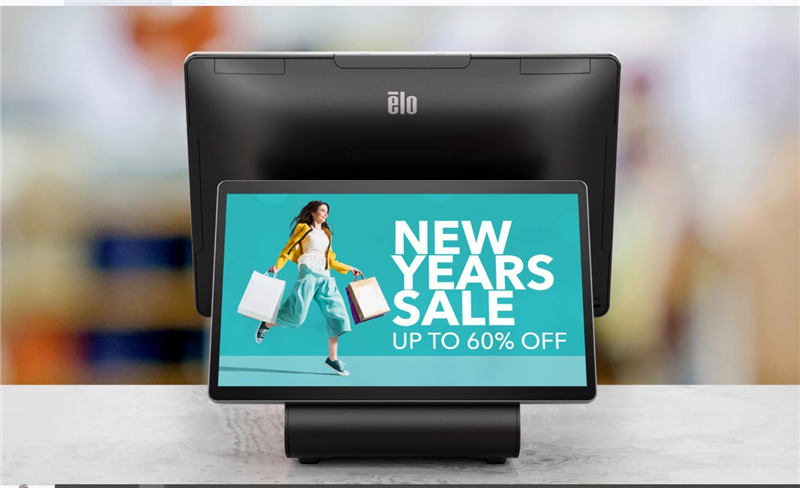

The Elo 1504LS 15-inch Full HD touchscreen monitor delivers commercial-grade durability, brilliant display clarity with state-of-the-art optical bonding and a minimalistic design perfect for any application. Backed by a three-year warranty, the 1504LS offers an energy efficient TouchPro® PCAP touchscreen enabling up to 10 simultaneous touches. With a clean design aesthetic, dual built-in speakers, flexible mounting options and increased viewing comfort with low blue light, the 1504LS touchscreen is well-suited for POS, HMI, interactive digital signage and self-service.
Streamline setup with USB-C to enable power, video and touch integration all in a single cable.
Secure your cables into place
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
A clean slate for touch experiences.

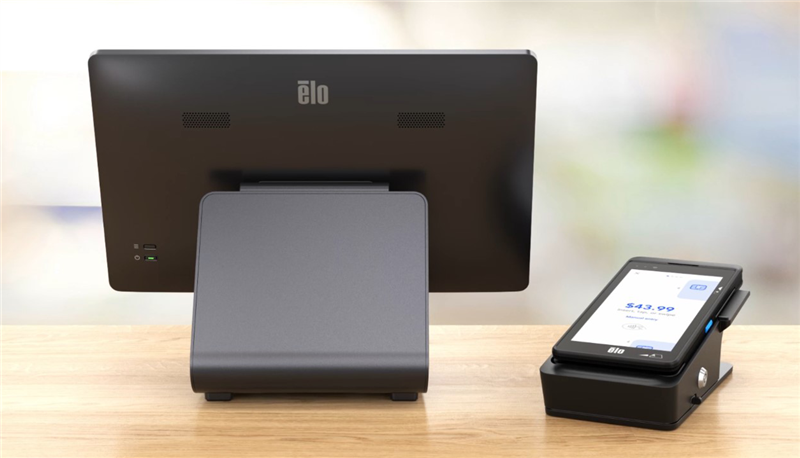

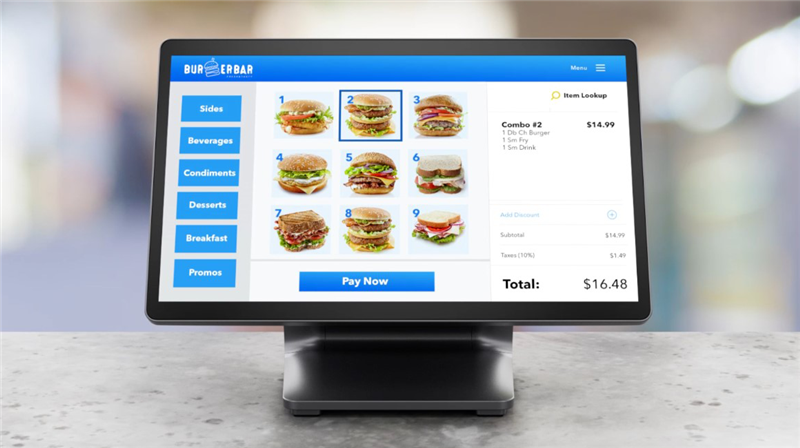

The perfect pairing for your POS terminal.
Whether you want to pair the 1504LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.
Get peace of mind with EloCare.
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
| Product Specifications | |
|---|---|
| Enclosure Color | Dark Gray Metallic |
| Touch Technology & Capacity | PCAP (Projected Capacitive) - 10 Touch |
| Diagonal Size | 15.6'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 13.55'' x 7.62'' / 344.16 mm x 193.59 mm |
| Resolution | 1920 x 1080 |
| Other Supported Resolutions | 640x480 60Hz
800x600 60Hz 1024x768 60Hz 1280x800 60Hz 1280x720 60Hz 1280x1024 60Hz 1366x768 60Hz, 60Hz RB 1440x900 60Hz, 60Hz RB 1680x1050 60Hz, 60Hz RB 1920x1080 60Hz |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total |
| Number of Colors | 16.2 million |
| Brightness (typical) | Panel: 350 nits; TouchPro PCAP: 315 nits |
| Response Time-total (typical) | 20 msec |
| Contrast Ratio | 1000:1 |
| Touch Interfaces | USB |
| Surface Treatment | Anti-glare |
| I/O Ports | USB Type-C connector (for power, video and touch) |
| Speakers | 2 x 2W internal speakers |
| Video | USB Type-C connector
Input Video Horizontal Sync frequency range: 30 – 82KHz Input Video Vertical Sync (frame rate) frequency range: 60Hz |
| Power | Power Delivery compatible via USB Type-C connector |
| Power Consumption (Typical) | ON (Default - 100% Brightness): 8W
SLEEP: 0.8 W OFF: 0.15 W |
| Monitor Dimensions (without Stand) | Without VESA Adapter: 14.16" x 8.61" x 0.59" / 359.73 mm x 218.82 mm x 14.97 mm
With VESA Adapter: 14.16" x 8.61" x 0.79" / 359.73 mm x 218.82 mm x 19.97 mm |
| Shipping Box Dimensions | 17.01" x 3.66" x 11.61" / 432 mm x 93 mm x 295 mm |
| Weight (Unpackaged) | 2.45 lbs / 1.11 kg |
| Weight (Packaged) | 4.21 lbs / 1.91 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature) |
| MTBF | 50,000 hours demonstrated |

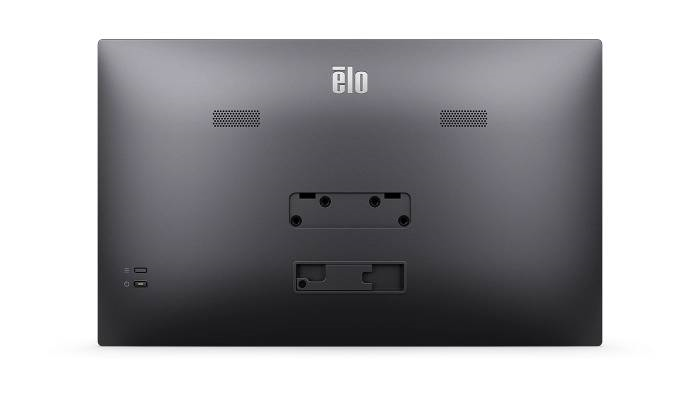

| Mounting Options | VESA via 4-hole 75mm mounting adapter on rear of unit. |
| Other Features | Energy Star 8.0
TUV Rhineland (Low Blue Light) Power collection function via DDCCI |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449 3 year warranty coverage + AUR - Elo P/N: E898648 4 year warranty coverage + AUR - Elo P/N: E894921 5 year warranty coverage + AUR - Elo P/N: E895125 |
| Impact Protection | IK07 |
| What's in the Box | Touchmonitor
Quick Install Guide USB Type-C cable 75mm VESA adapter (assembled) |
| Optional Peripherals | PCAP Stylus Pen - Elo P/N: E066148 |
